Huawei EchoLife HN8245Q XG-PON ONT 2 POTS 4 GE 2 USB Wi-Fi

USD

5 5/5.0 Reviews Q/A 4 Sold/Mon
Detail:	Huawei EchoLife HN8245Q, intelligent XG-PON routing-type ONT, XG-PON (SFP+ Optical Module), 2POTS+4GE+2.4G&5G Wi-Fi+2USB
Model:	EchoLife HN8245Q
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.85	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife HN8245Q is an routing-type ONT used in the Huawei all-optical access solution. It uses XG-PON technology to provide ultra-broadband access for users.

It provides 4 GE+2 POTS+2 USB+2 WiFi(4 GE Ethernet ports, 2 POTS ports, 2 USB port, 1 2.4G WiFi port and 1 5G WiFi port). High-performance forwarding provides VoIP, Internet, and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HN8245Q
Dimensions (W x D x H)	238mm x 190mm x 26mm (Without the base)
Weight	About 850 g
Operating Temperature	0°C to +40°C
Operating Humidity	5%RH to 95%RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11-14 V DC, 3 A
Static Power Consumption	6 W
Maximum Power Consumption	30 W
NNI	XG-PON (SFP+ Optical Module)
UNI	2POTS+4GE+2.4G&5G Wi-Fi+2USB

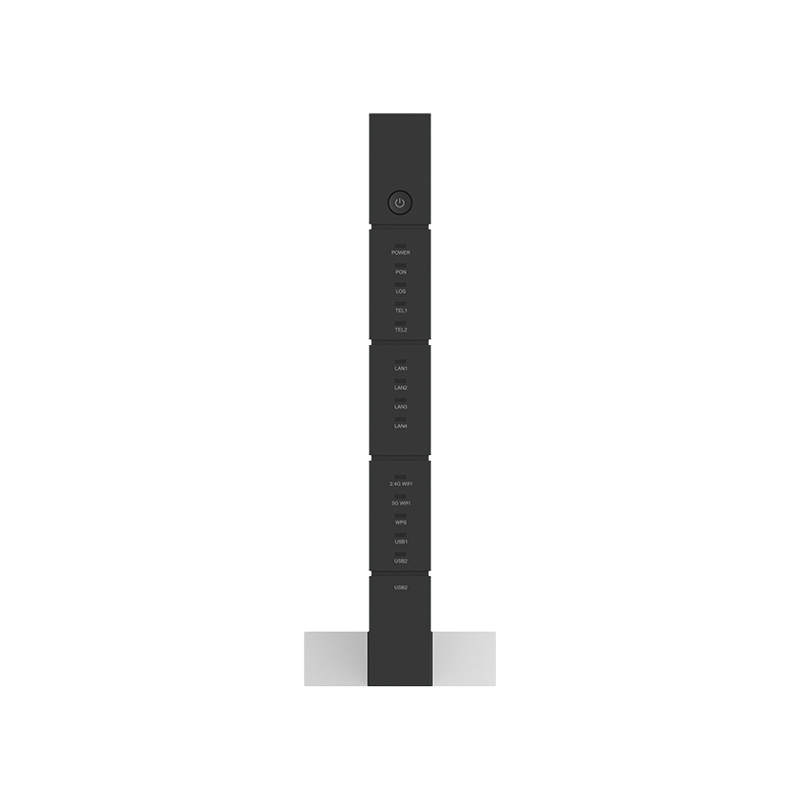

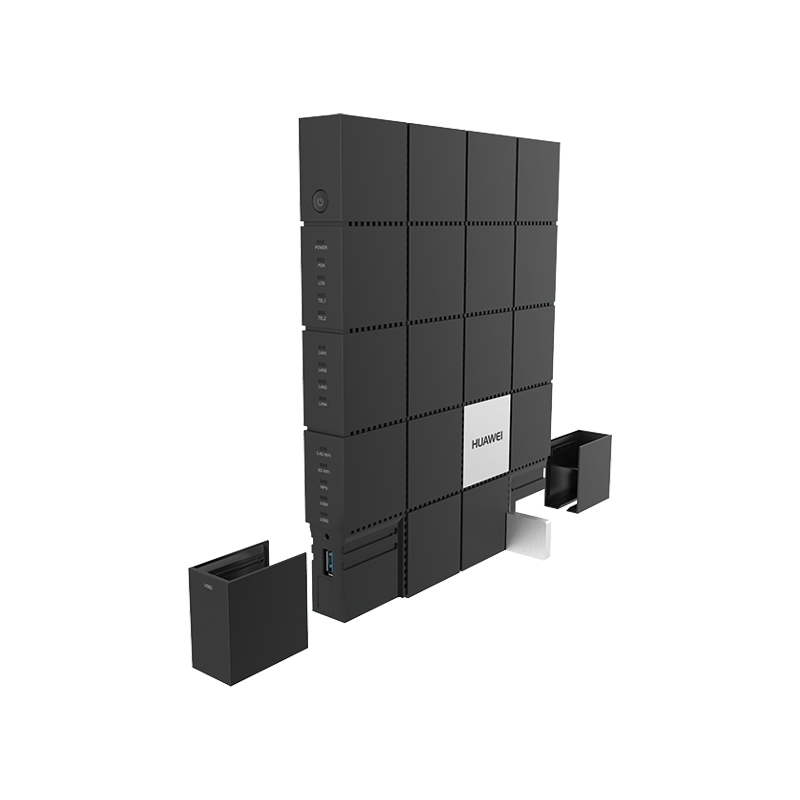

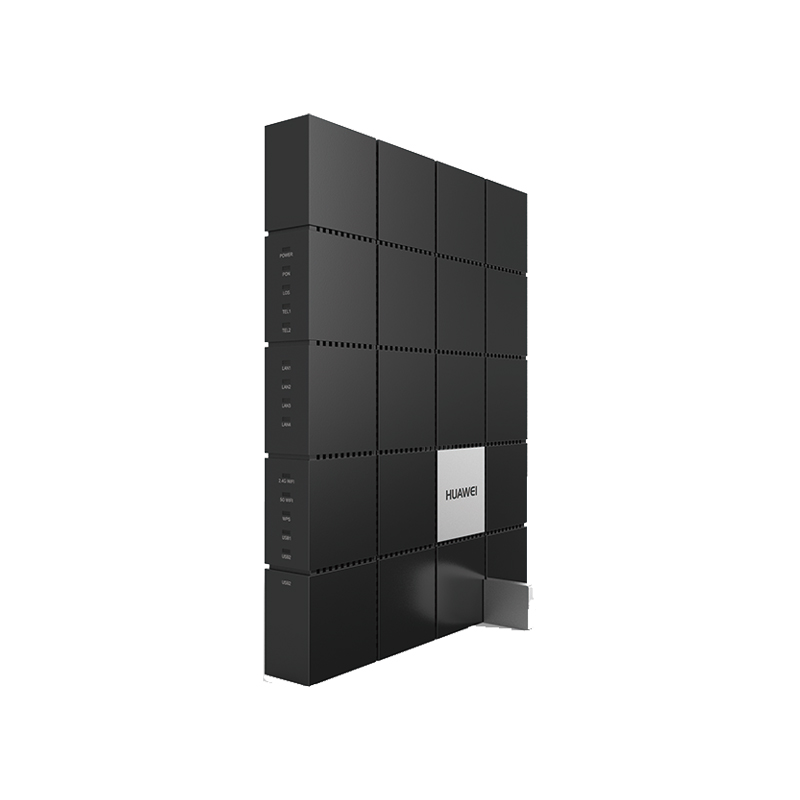

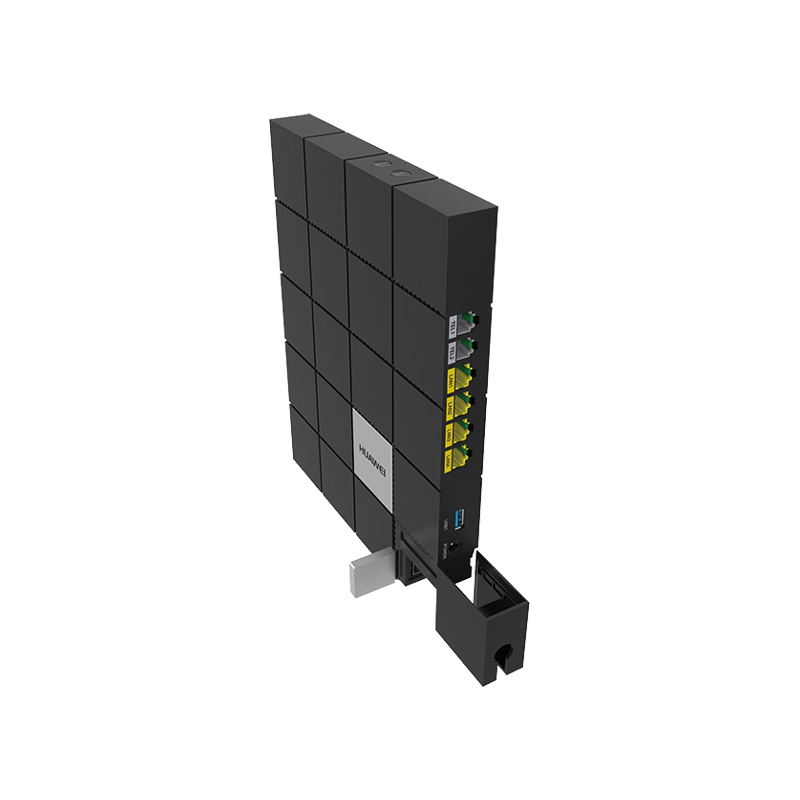

Figure 1 shows the appearance of EchoLife HN8245Q.

overview-echolife-hn8245q-datasheet

Product Details

Port Parameters

XG-PON Port	● Class N1/N2a ● Receiver sensitivity: -28dBm ● Wavelengths: US 1260-1280nm, DS 1575-1580nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● SN/Password/SN+Password/Bi-directional authentication based on OMCI ● upstream and downstream FEC ● SR-DBA and NSR-DBA ● 2.5Gbps uplink, 10Gbps downlink
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB3.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA DMS/UPnP AV (media server)
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 3 × 3 MIMO (2.4G/5G) ● Antenna gain: 2 dBi ● WMM / Multiple SSIDs ● WPS ● 2.4G/5G concurrent ● Air interface rate: 450 Mbps (2.4G); 1300 Mbps (5G)

Function List

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any port any service ● Parental control
Smart Service	● Smart Wi-Fi sharing: − Portal/802.1x authentication − SoftGRE-based sharing ● Association of one account with two POTS ports
Smart O&M	● IPTV video quality diagnosis ● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● Wi-Fi emulation ● One-click diagnosis (Web)
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, and DS-Lite ● Static/Default routes ● Multiple services on one WAN port
Multicast	● IGMP v2/v3 proxy snooping ● MLD v1/v2 snooping ● Multicast services through Wi-Fi
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR
Security	● SPI firewall ● Filtering based on MAC/IP addresses
Common O&M	● OMCI/Web UI/TR069 ● Dual-system software backup and rollback
Power Saving	● COC V5 ● Scheduled Wi-Fi shutdown

Get More Information

Do you have any question about the EchoLife HN8245Q?

Specific Data Sheet:

EchoLife HN8245Q Specification
Dimensions (W x D x H)	238mm x 190mm x 26mm (Without the base)
Weight	About 850 g
Operating Temperature	0°C to +40°C
Operating Humidity	5%RH to 95%RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11-14 V DC, 3 A
Static Power Consumption	6 W
Maximum Power Consumption	30 W
NNI	XG-PON (SFP+ Optical Module)
UNI	2POTS+4GE+2.4G&5G Wi-Fi+2USB
XG-PON Port	● Class N1/N2a ● Receiver sensitivity: -28dBm ● Wavelengths: US 1260-1280nm, DS 1575-1580nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● SN/Password/SN+Password/Bi-directional authentication based on OMCI ● upstream and downstream FEC ● SR-DBA and NSR-DBA ● 2.5Gbps uplink, 10Gbps downlink
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB3.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA DMS/UPnP AV (media server)
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 3 × 3 MIMO (2.4G/5G) ● Antenna gain: 2 dBi ● WMM / Multiple SSIDs ● WPS ● 2.4G/5G concurrent ● Air interface rate: 450 Mbps (2.4G); 1300 Mbps (5G)
