Huawei EchoLife HG8247U ONT 4 GE 2 POTS 1 USB 1 CATV Wi-Fi

USD

5 5/5.0 Reviews Q/A 3 Sold/Mon
Detail:	Huawei EchoLife HG8247U, intelligent bridging-type ONT, 4GE+2POTS+2.4G/5G Wi-Fi+1USB+1CATV
Model:	EchoLife HG8247U
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

GPON ONT, 1FE + 1POTS, support QoS, Security, Power Saving, Multicast and Smart O&M.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HG8247U
Dimensions (W x D x H)	265 mm x 178 mm x 79.5 mm
Weight	About 500 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	90-264V AC, 50/60 Hz
System Power Supply	11-14 V DC, 2 A
Static Power Consumption	9.8 W
Maximum Power Consumption	22 W
NNI	GPON
UNI	4GE+2POTS+2.4G/5G Wi-Fi+1USB+1CATV
Indicators	POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB/CATV

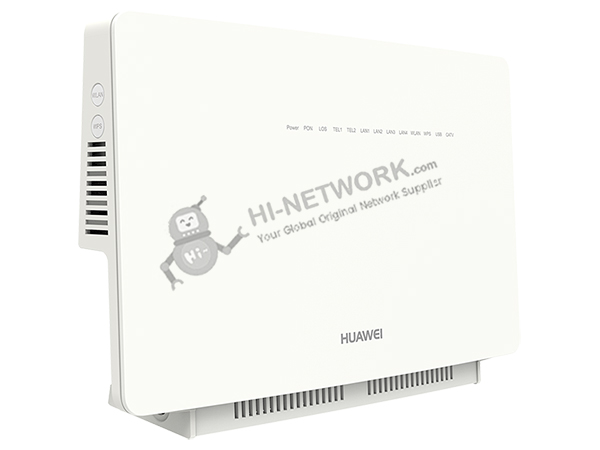

Figure 1 shows the appearance of EchoLife HG8247U.

overview-echolife-hg8247u-datasheet

Product Details

Port Parameters

GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● WBF ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA DMS/UPnP AV (media server)
CATV Port	● Bandwidth 45 MHz to 1000 MHz ● Output resistance 75 ohms
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 2 × 2 MIMO (2.4G); 3 × 3 MIMO (5G) ● Antenna gain: 2 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G/5G concurrent ● Air interface rate: 300 Mbit/s (2.4G) 1300 Mbit/s (5G)

Function List

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any port any service ● Parental control ● L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Smart Service	● Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing Association of one account with two POTS ports
Smart O&M	● IPTV video quality diagnosis ● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● WLAN emulation
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI ● Static/Default routes ● Multiple services on one WAN port
Multicast	● IGMP v2/v3 proxy/snooping ● MLD v1/v2 snooping ● Multicast services through Wi-Fi
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation
Security	● SPI firewall ● Filtering based on MAC/IP/URL addresses
Common O&M	● OMCI/Web UI/TR069 ● Dual-system software backup and rollback
Power Saving	● Dynamic power saving ● Indicator power saving ● Scheduled Wi-Fi shutdown ● COCv6

Get More Information

Do you have any question about the EchoLife HG8247U?

Specific Data Sheet:

EchoLife HG8247U Specification
Dimensions (W x D x H)	265 mm x 178 mm x 79.5 mm
Weight	About 500 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	90-264V AC, 50/60 Hz
System Power Supply	11-14 V DC, 2 A
Static Power Consumption	9.8 W
Maximum Power Consumption	22 W
NNI	GPON
UNI	4GE+2POTS+2.4G/5G Wi-Fi+1USB+1CATV
Indicators	POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB/CATV
GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● WBF ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA DMS/UPnP AV (media server)
CATV Port	● Bandwidth 45 MHz to 1000 MHz ● Output resistance 75 ohms
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 2 × 2 MIMO (2.4G); 3 × 3 MIMO (5G) ● Antenna gain: 2 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G/5G concurrent ● Air interface rate: 300 Mbit/s (2.4G) 1300 Mbit/s (5G)
