Huawei EchoLife HG8245H5 GPON ONT 2 POTS 4 GE/FE 2.4G Wi-Fi 1 USB

USD

5 5/5.0 Reviews Q/A 82 Sold/Mon
Detail:	Huawei EchoLife HG8245H5, intelligent routing-type ONT, GPON, 2POTS + 4GE/FE + 2.4G Wi-Fi+ 1USB
Model:	EchoLiffe HG8245H5
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.7	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The EchoLife HG8245H5 is a home gateway in Huawei Gigaband fiber solutions. The HG8245H5 provides 2 pots, 4 GE/FE auto-negotiation Ethernet ports, and a Wi-Fi port (standards compliance: 802.11b/g/n). It supports plug-and-play, remote diagnosis, and energy conservation features. The HG8245H5 provides ultra-bandwidth access using GPON technologies for home users. The high-performance forwarding capability of the device guarantees the voice, data, and HD video experience, which makes the device future-proof and an ideal terminal for FTTH deployment.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HG8245H5
Dimensions (L x W x H)	30 mm x 168 mm x 115 mm (without external antenna and pads)
Weight	About 220 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 – 240 V AC, 50 / 60 Hz
System Power Supply	11 – 14 V DC, 1 A
Static Power Consumption	4 W
Maximum Power Consumption	12 W
NNI	GPON
UNI	2POTS + 4GE/FE + 2.4G Wi-Fi+ 1USB
Optical connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS

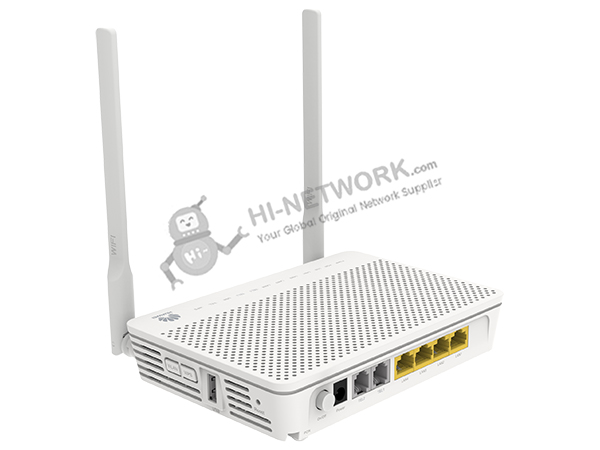

Figure 1 shows the appearance of EchoLife HG8245H5.

front-echolife-hg8245h5-datasheet

Highlight

Support for Various Ports

2 POTS+4 GE/FE+1 USB+1 Wi-Fi.

Ease of Operation

Home terminals such as PCs and set top boxes (STBs) can be connected to any Ethernet ports on the HG8245H5. The HG8245H5 supports both the SIP and H.248 protocols, simplifying interconnection with the softswitch.

Plug-and-play

The HG8245H5 supports the OMCI and TR069 protocols so that voice, broadband, and multicast services can be automatically provisioned without onsite parameter configuration.

Remote Diagnosis

Remote fault locating can be achieved through loop-line tests on POTS ports, call emulation, and PPPoE dial-up emulation.

High Speed Forwarding

In a Network Address Translation (NAT) scenario, Layer 2 and Layer 3 forwarding can achieve 1 Gbit/s upstream and 2 Gbit/s downstream.

Energy Conservation

The HG8245H5 uses the highly-integrated SoC chip. An SoC chip integrates the PON, voice, gateway, and LSW modules, which helps reduce the device power consumption by 25%.

Product Details

Interface Parameters

GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n ● 2 x 2 MIMO ● Antenna gain: 5 dBi ● WMM ● Multiple SSIDs ● WPS ● Air interface rate:300 Mbit/s

Product Function

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any port any service ● Parental control ● L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Smart Service	● Scheduled Wi-Fi shutdown ● Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing ● Association of one account with two POTS ports
Smart O&M	● IPTV video quality diagnosis ● eMDI ● Rogue ONT detection and isolation from the OLT ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● WLAN emulation
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, and DS-Lite ● Static/Default routes ● Multiple services on one WAN port
Multicast	● IGMP v2/v3 proxy /snooping ● MLD v1/v2 snooping
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation
Security	● SPI firewall ● Filtering based on MAC/IP/URL addresses
Common O&M	● OMCI/Web UI/TR069 ● Variable-length OMCI messages ● Dual-system software backup and rollback
Power Saving	● Indicator power saving

Get More Information

Do you have any question about the EchoLife HG8245H5?

Specific Data Sheet:

EchoLife HG8245H5 Specification
Dimensions (L x W x H)	30 mm x 168 mm x 115 mm (without external antenna and pads)
Weight	About 220 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 – 240 V AC, 50 / 60 Hz
System Power Supply	11 – 14 V DC, 1 A
Static Power Consumption	4 W
Maximum Power Consumption	12 W
NNI	GPON
UNI	2POTS + 4GE/FE + 2.4G Wi-Fi+ 1USB
Optical connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n ● 2 x 2 MIMO ● Antenna gain: 5 dBi ● WMM ● Multiple SSIDs ● WPS ● Air interface rate:300 Mbit/s
