Huawei EchoLife HG8120H ONT 1 POTS 1 GE 1 FE

USD

5 5/5.0 Reviews Q/A 4 Sold/Mon
Detail:	Huawei EchoLife HG8120H, intelligent routing-type ONT, 1POTS+1GE+1FE
Model:	EchoLife HG8120H
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Bridging-type ONT, 2GE+1POTS, support QoS, Security, Power Saving, Multicast, VOIP and Smart O&M.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HG8120H
Dimensions (H x W x D)	135 mm x 115 mm x 27 mm
Weight	< 500 g
Operating Temperature	0℃ to 40℃
Operating Humidity	5%–95% RH, non-condensing
Rated Input Range of Power Adapter	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	4 W
Maximum Power Consumption	5.5 W
Network-side Port	GPON
User-side Port	1POTS+1GE+1FE
Indicator	POWER/PON/LOS/LAN/TEL

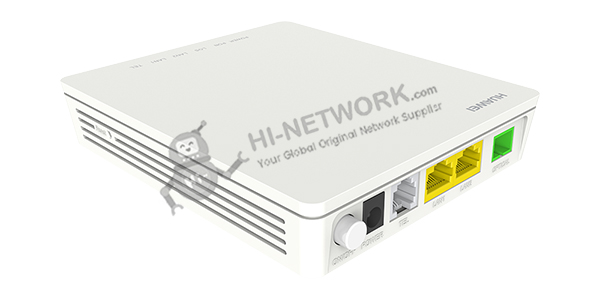

Figure 1 shows the appearance of EchoLife HG8120H.

overview-echolife-hg8120h-datasheet

Product Details

Interface Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

Product Function

Smart O&M	● IPTV video quality diagnosis (V300R015C10) ● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing ● Call emulation, and circuit test and loop-line test
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation
Power Saving	● Dynamic power saving ● Indicator power saving ● COCv4
Smart Interconnection	● SIP/H.248 auto-negotiation ● Any port any service ● Parental control
Security	● SPI firewall ● Anti-DoS attack ● Filtering based on MAC/IP/URL Addresses
Common O&M	● OMCI/Web UI/TR069 ● Dual-system software backup and rollback
Multicast	● IGMP v2/v3 snooping ● IGMP v2/v3 proxy ● MLD v1/v2 snooping

Get More Information

Do you have any question about the EchoLife HG8120H?

Specific Data Sheet:

EchoLife HG8120H Specification
Dimensions (H x W x D)	135 mm x 115 mm x 27 mm
Weight	< 500 g
Operating Temperature	0℃ to 40℃
Operating Humidity	5%–95% RH, non-condensing
Rated Input Range of Power Adapter	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	4 W
Maximum Power Consumption	5.5 W
Network-side Port	GPON
User-side Port	1POTS+1GE+1FE
Indicator	POWER/PON/LOS/LAN/TEL
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
