Name: Huawei EchoLife HG8120C GPON ONT 4 FE 1 POTS
Brand: hi-network
Rating: 5 (36 reviews)

Huawei EchoLife HG8120C is an Optical Network Terminal (ONT) used in Huawei's FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. It provides 4FE+1POTS ports.

The HG8120C features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8120C provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HG8120C
Dimensions (H x W x D)	176 mm x 138 mm x 28 mm
Weight	< 500 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
Network-side Ports	GPON
User-side Ports	4FE + 1POTS
Static Power Consumption	5.5 W
Maximum Power Consumption	7.5 W
Indicators	POWER/PON/LOS/LAN/TEL

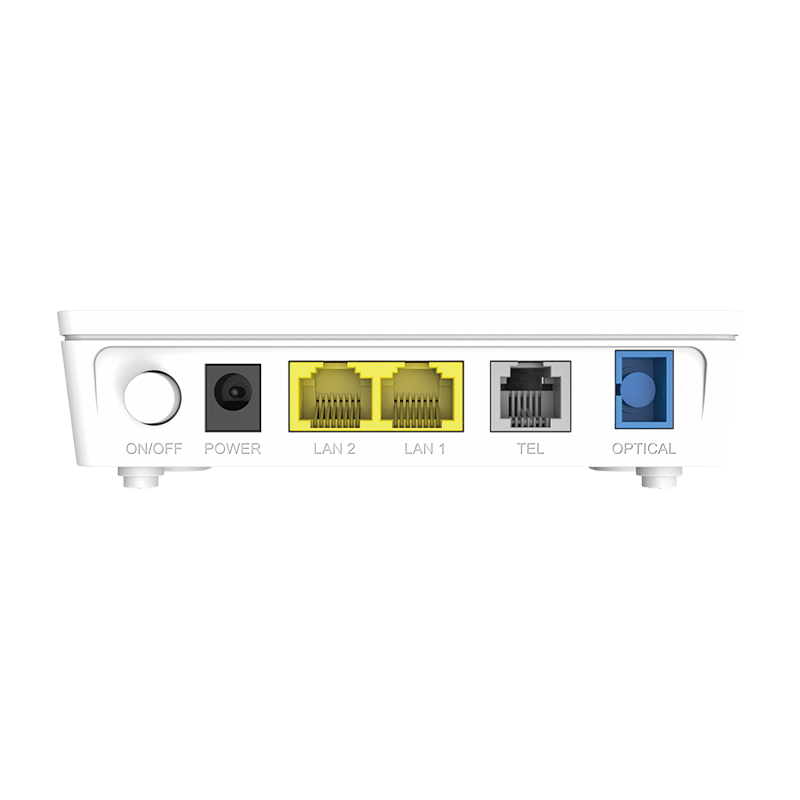

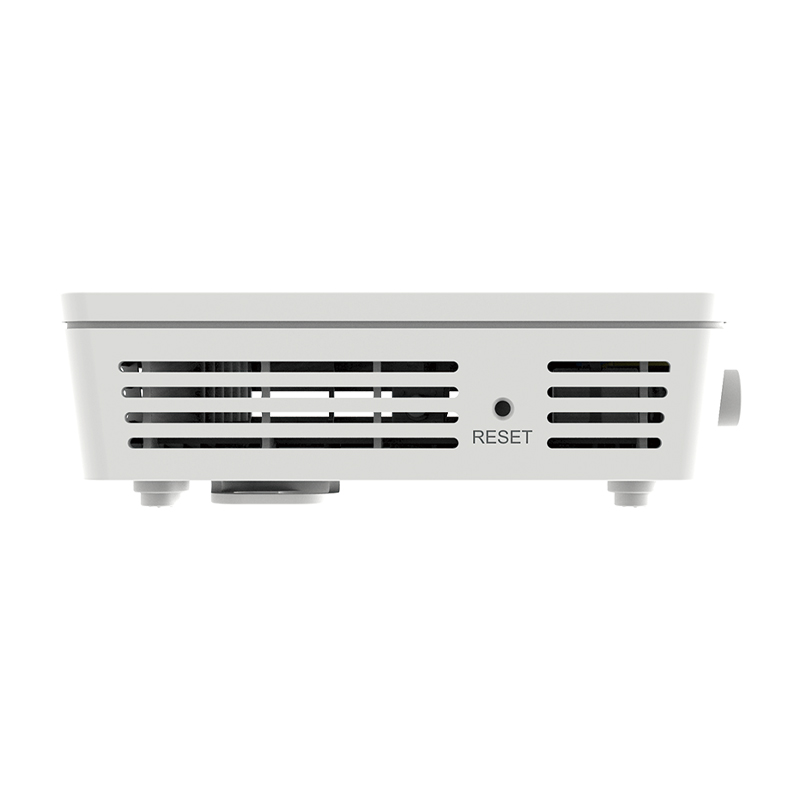

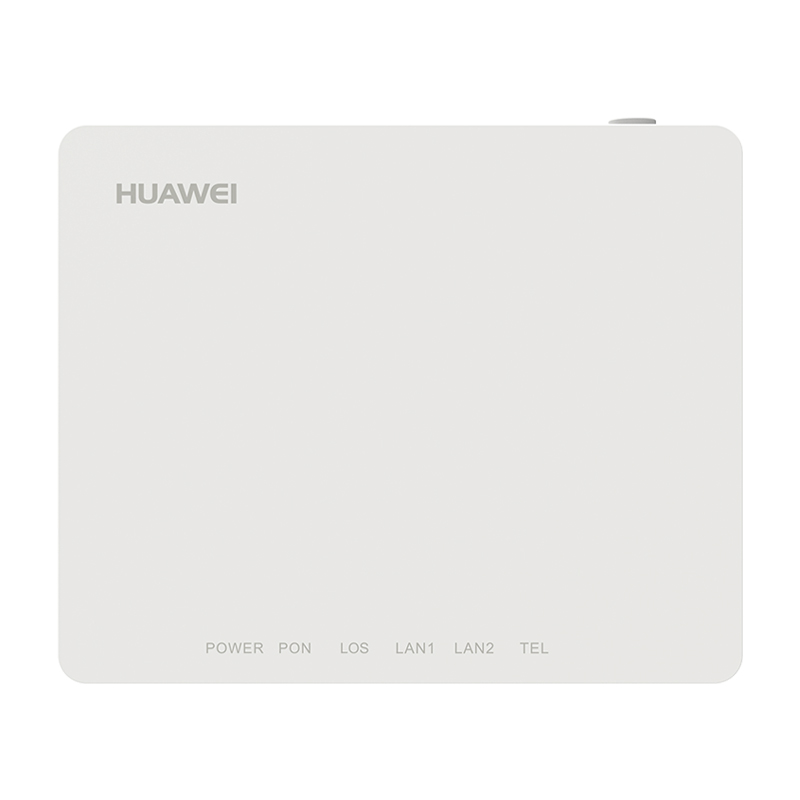

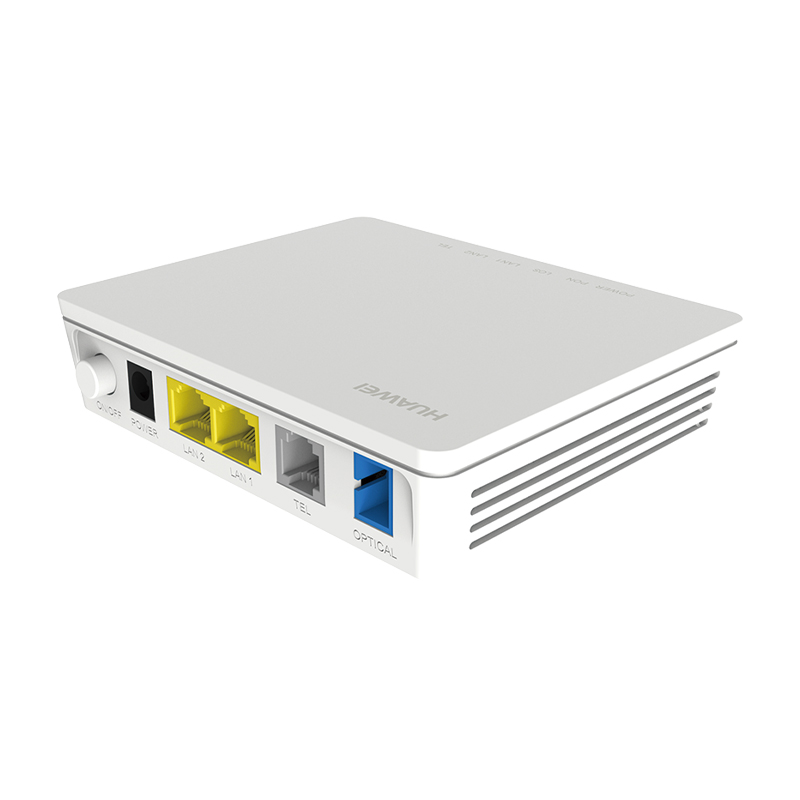

Figure 1 shows the appearance of EchoLife HG8120C.

overview-echolife-hg8120c-datasheet

Product Details

Interface Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Transparent transmission of IPv6 packets at Layer 2

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

Product Function

Smart Interconnection	● SIP/H.248 auto-negotiation
Smart O&M	● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing ● Call emulation, and circuit test and loop-line test
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in power-saving state
Security	● MAC address filtering
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation

Get More Information

Do you have any question about the EchoLife HG8120C?

Specific Data Sheet:

EchoLife HG8120C Specification
Dimensions (H x W x D)	176 mm x 138 mm x 28 mm
Weight	< 500 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
NNI	GPON
UNI	4FE + 1POTS
Static Power Consumption	5.5 W
Maximum Power Consumption	7.5 W
Indicators	POWER/PON/LOS/LAN/TEL
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Transparent transmission of IPv6 packets at Layer 2
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
