Detail:	Huawei EchoLife HG8110H, intelligent bridging-type ONT, 1GE + 1POTS
Model:	EchoLife HG8110H
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife HG8110H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology.

It provides 1 GE port and 1 POTS port. The high-performance forwarding capability ensures the service experience of voice, data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HG8110H
Dimensions (H x W x D)	134 mm x 115 mm x 27 mm
Weight	< 500 g
Operating Temperature	0℃ to 40℃
Operating Humidity	5%–95% RH, non-condensing
Rated Input Range of Power Adapter	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	3.5 W
Maximum Power Consumption	5.5 W
Network-side Port	GPON
User-side Port	1GE + 1POTS
Indicator	POWER/PON/LOS/LAN/TEL

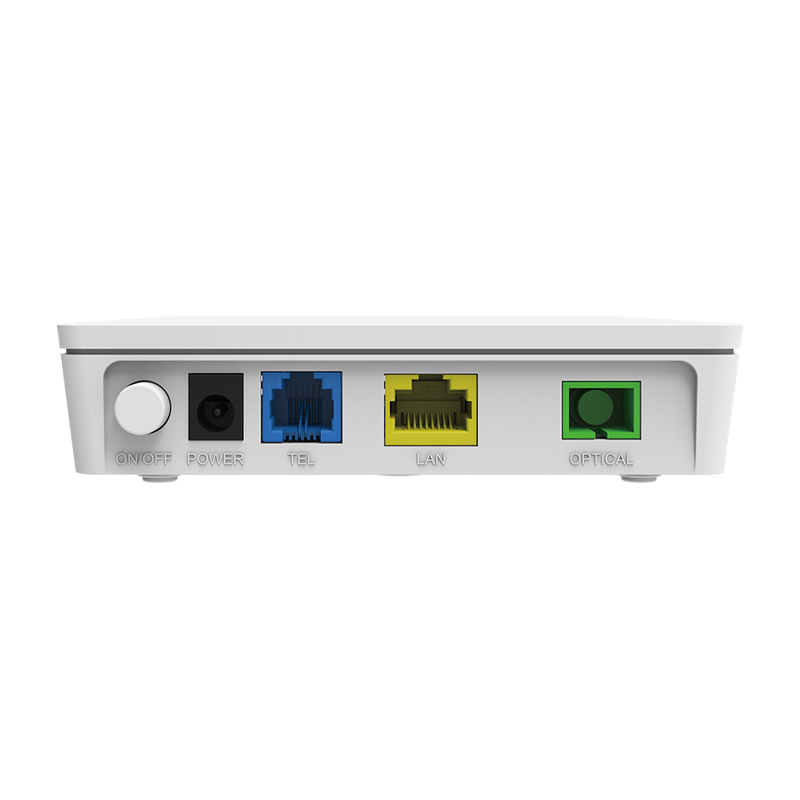

Figure 1 shows the appearance of EchoLife HG8110H.

overview-echolife-hg8110h-datasheet

Product Details

Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Transparent transmission of IPv6 packets at Layer 2

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

Function List

Smart O&M	● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing ● Call emulation, and circuit test and loop-line test
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in power-saving state ● COCv4
Smart Interconnection	● SIP/H.248 auto-negotiation
Security	● MAC address filtering
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation

Get More Information

Do you have any question about the EchoLife HG8110H?

Specific Data Sheet:

EchoLife HG8110H Specification
Dimensions (H x W x D)	134 mm x 115 mm x 27 mm
Weight	< 500 g
Operating Temperature	0℃ to 40℃
Operating Humidity	5%–95% RH, non-condensing
Rated Input Range of Power Adapter	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	3.5 W
Maximum Power Consumption	5.5 W
Network-side Port	GPON
User-side Port	1GE + 1POTS
Indicator	POWER/PON/LOS/LAN/TEL
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Transparent transmission of IPv6 packets at Layer 2
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
