Huawei EchoLife HG8110F ONT 1 FE 1 POTS

USD

5 5/5.0 Reviews Q/A 6 Sold/Mon
Detail:	Huawei EchoLife HG8110F, intelligent bridging-type ONT, 1FE+1POTS (V3R015C00 and before); 1GE+1POTS(after V3R015C00)
Model:	EchoLife HG8110F
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei EchoLife HG8110F ONT is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8110 provides one POTS port and one FE Ethernet port. The HG8110F features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HG8110F
Dimensions (W x D x H)	134 mm x 115 mm x 27 mm (V3R015C00 and before); 115 mm x 94 mm x 27 mm (after V3R015C00)
Weight	< 500 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	3 W
Maximum Power Consumption	5 W mm (V3R015C00 and before); 4 W (after V3R015C00)
NNI	GPON
UNI	1 FE+1POTS (V3R015C00 and before) 1 GE+1POTS (after V3R015C00)
Indicators	POWER/PON/LOS/LAN/TEL

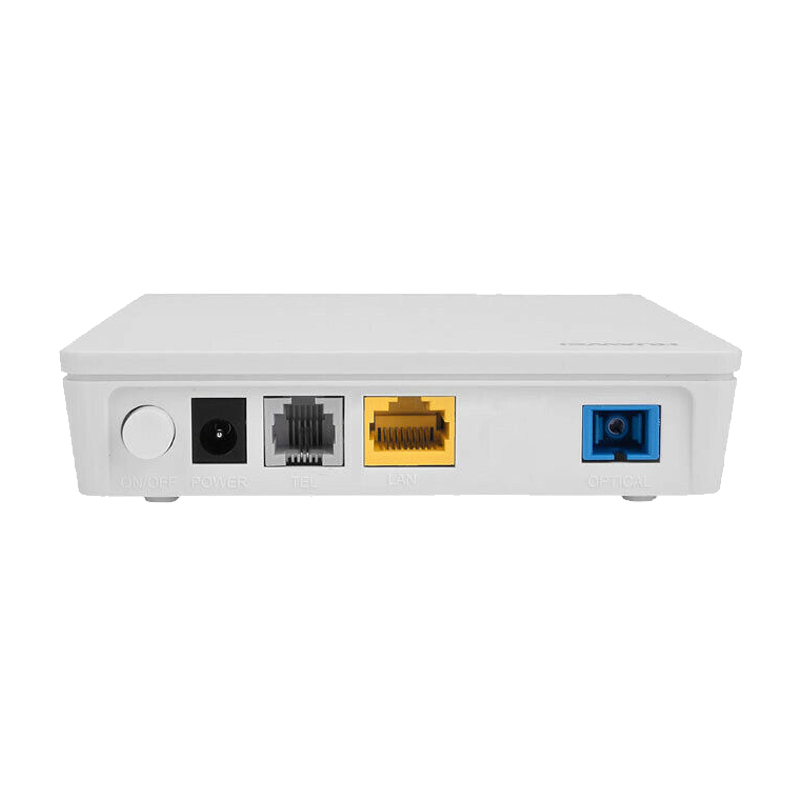

Figure 1 shows the appearance of EchoLife HG8110F.

overview-echolife-hg8110f-datasheet

Product Details

Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Transparent transmission of IPv6 packets at Layer 2

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

Function List

Smart O&M	● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing ● Call emulation, and circuit test and loop-line test
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Security	● MAC address filtering
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in power-saving state

Get More Information

Do you have any question about the EchoLife HG8110F?

Specific Data Sheet:

EchoLife HG8110F Specification
Dimensions (W x D x H)	134 mm x 115 mm x 27 mm (V3R015C00 and before); 115 mm x 94 mm x 27 mm (after V3R015C00)
Weight	< 500 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	3 W
Maximum Power Consumption	5 W mm (V3R015C00 and before); 4 W (after V3R015C00)
NNI	GPON
UNI	1 FE+1POTS (V3R015C00 and before) 1 GE+1POTS (after V3R015C00)
Indicators	POWER/PON/LOS/LAN/TEL
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Transparent transmission of IPv6 packets at Layer 2
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
