EchoLife HG8045Q
  • EchoLife HG8045Q

Huawei EchoLife HG8045Q ONT 1 GPON 4 GE 1 USB Wi-Fi

45
5
5/5.0
Q/A
6 Sold/Mon
Detail: Huawei EchoLife HG8045Q ONT, 1 GPON, 4 GE + 1 USB + 2.4G and 5G Wi-Fi
Model: EchoLife HG8045Q
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


Routing-type ONT, 4GE+2WIFI+1USB, support QoS, Security, Power Saving, Multicast, Layer 3 Features, 2.4G/5G WIFI, USB and Smart O&M.



Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife HG8045Q

Dimensions (W x D x H)

230 mm x 190 mm x 30 mm (excluding the support)

Weight

About 500 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 2 A

Static Power Consumption

5 W

Maximum Power Consumption

21 W

Ports

4GE+2.4G/5G Wi-Fi+USB

Indicators

POWER/ON/LOS/USB/PORT/2.4GWi-Fi/WPS

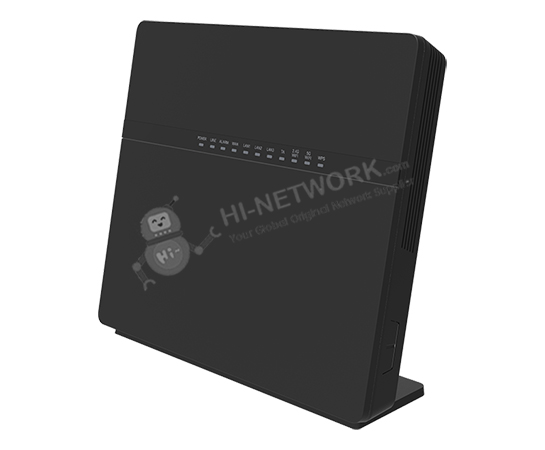

Figure 1 shows the appearance of EchoLife HG8045Q.

overview-echolife-hg8045q-datasheet


Product Details


Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

USB Port

● USB2.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 3 × 3 MIMO

● Antenna gain: 2 dBi

● WMM

● Multiple SSIDs

● WPS

● 2.4G/5G concurrent

● Air interface rate: 450 Mbps (2.4G); 1300 Mbps (5G)


Function List

Smart Interconnection

● Any port any service

● L2/L3 forwarding: 1G uplink, 2G downlink

Smart Service

● Smart Wi-Fi sharing

Smart O&M

● Variable-length OMCI messages

● Active/Passive rogue ONT detection and isolation

● PPPoE/DHCP simulation testing

● WLAN emulation

Layer 3 Features

● PPPoE/Static IP/DHC

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, and DS-Lite

● Static/Default routes

● Multiple services on one WAN port

Multicast

● IGMP v2/v3 snooping

● MLD v1/v2 snooping

● Multicast services through Wi-Fi

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● Anti-DoS attack

● Filtering based on MAC/IP/URL addresses

Common O&M

● OMCI/Web UI/TR069

● Dual-system software backup and rollback

Power Saving

● Dynamic power saving

● Indicator power saving

● COCv4


Get More Information

Do you have any question about the EchoLife HG8045Q?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife HG8045Q Specification

Dimensions (W x D x H)

230 mm x 190 mm x 30 mm (excluding the support)

Weight

About 500 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 2 A

Static Power Consumption

5 W

Maximum Power Consumption

21 W

Ports

4GE+2.4G/5G Wi-Fi+USB

Indicators

POWER/ON/LOS/USB/PORT/2.4GWi-Fi/WPS

GPON Port

● Class B+

● Receiver sensitivity: -27 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

USB Port

● USB2.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 3 × 3 MIMO

● Antenna gain: 2 dBi

● WMM

● Multiple SSIDs

● WPS

● 2.4G/5G concurrent

● Air interface rate: 450 Mbps (2.4G); 1300 Mbps (5G)
