Huawei EchoLife HG8045A ONT 4 FE Wi-Fi

36
5
5/5.0
Q/A
6 Sold/Mon
Detail: Huawei EchoLife HG8045A, intelligent routing-type ONT, 4FE+Wi-Fi
Model: EchoLife HG8045A
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife HG8045A is a bridging-type gpon ont. HG8245A gpon terminal 4 FE ports and Wi-Fi port. The high-performance forwarding capability ensures the service experience of data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.



Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife HG8045A

Dimensions (W x D x H)

176 mm × 138 mm × 28 mm (without an external antenna)

Weight

< 500 g

Operating Temperature

0ºC to +40ºC

Operating Humidity

5% to 95% RH (non-condensing)

Power Adapter Input

100-240V AC, 50/60 Hz

System Power Supply

11-14 V DC, 1 A

Static Power Consumption

5 W

Maximum Power Consumption

7 W

Ports

4FE+Wi-Fi

Indicators

POWER/PON/LOS/LAN/WLAN/WPS

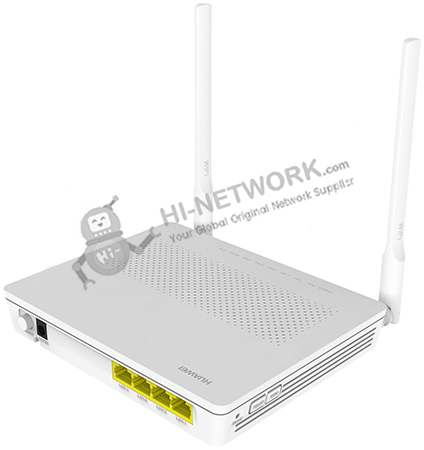

Figure 1 shows the appearance of EchoLife HG8045A.

overview-echolife-hg8045a-datasheet


Product Details


Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

WLAN

● IEEE 802.11 b/g/n

● 2 x 2 MIMO

● Antenna gain: 5 dBi

● WMM

● Multiple SSIDs

● WPS

● Air interface rate: 300 Mbps


Function List

Smart Interconnection

● Smart Wi-Fi coverage (V300R015C10)

● Any port any service

● Parental control (V300R015C00)

Smart Service

● Smart Wi-Fi sharing:

802.1x authentication (V300R015C10)/ Portal; SoftGRE-based sharing (V300R015C10)

Smart O&M

● IPTV video quality diagnosis (V300R015C10)

● Variable-length OMCI messages

● Active/Passive rogue ONT detection and isolation

● PPPoE/DHCP simulation testing

● WLAN emulation

Layer 3 Features

● PPPoE/Static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, and DS-Lite

● Static/Default routes

● Multiple services on one WAN port

Multicast

● IGMP v2/v3 snooping

● IGMP v2 proxy

● IGMP v3 proxy (V300R015C00)

● MLD v1/v2 snooping

● Multicast services through Wi-Fi

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

Security

● SPI firewall

● Anti-DoS attack

● Filtering based on MAC/IP/URL addresses

Common O&M

● OMCI/Web UI/TR069

● Dual-system software backup and rollback

Power Saving

● Dynamic power saving

● Indicator power saving

● Scheduled Wi-Fi shutdown

● COCv4


Get More Information

Do you have any question about the EchoLife HG8045A?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife HG8045A Specification

Dimensions (W x D x H)

176 mm × 138 mm × 28 mm (without an external antenna)

Weight

< 500 g

Operating Temperature

0ºC to +40ºC

Operating Humidity

5% to 95% RH (non-condensing)

Power Adapter Input

100-240V AC, 50/60 Hz

System Power Supply

11-14 V DC, 1 A

Static Power Consumption

5 W

Maximum Power Consumption

7 W

Ports

4FE+Wi-Fi

Indicators

POWER/PON/LOS/LAN/WLAN/WPS

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

WLAN

● IEEE 802.11 b/g/n

● 2 x 2 MIMO

● Antenna gain: 5 dBi

● WMM

● Multiple SSIDs

● WPS

● Air interface rate: 300 Mbps
