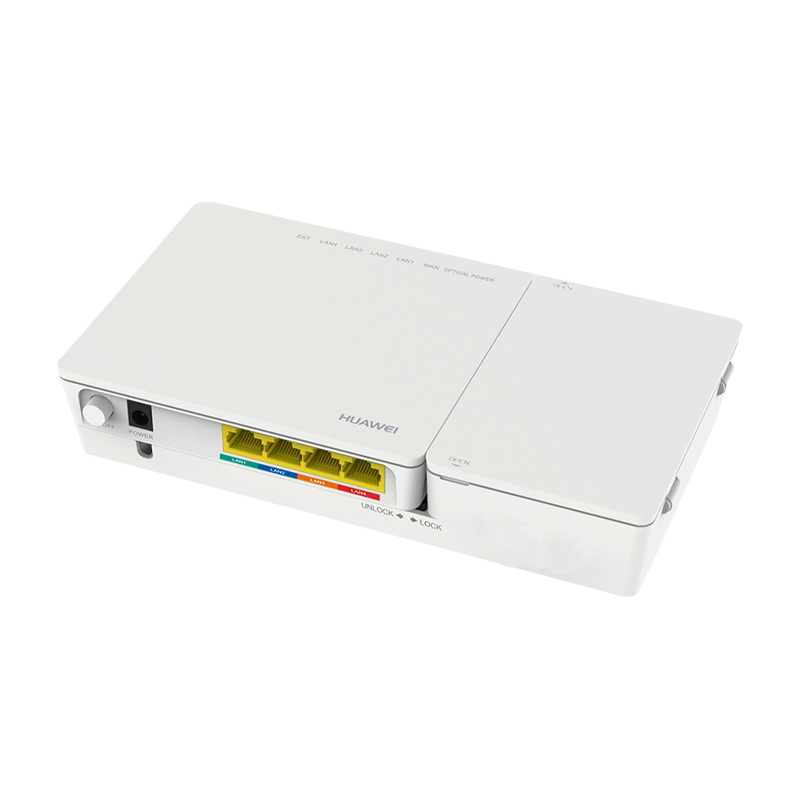

| Detail: | Huawei EchoLife HG8040P, intelligent P2P ONT, 4GE |
| Model: | EchoLife HG8040P |
| Condition: | Factory Sealed New |
| Related: | |
| Warranty: |
3-Years Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
0.5
|
2-7 Days
US$
|
| Payment: |
More
|
P2P ONT, 4GE, support QoS, Security,Power Saving, Multicast and Smart O&M.
Model | EchoLife HG8040P |
Dimensions (D x W x H) | 134 x 114 x 27 (mm) |
Operating temperature | 0°C to 40°C |
Operating humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 V AC, 50–60 Hz |
System power supply | 12V DC, 0.5 A |
Static power consumption | 3.8 W |
Maximum power consumption | 5.8 W |
Ports | 4GE |
Indicators | EXT/LAN/WAN/OPTICAL/POWER |
Optical Interface | ● Standard optical interfaces ● Maximum reach:20km ● Comply with SFF-8472 ● Wavelengths: US 1310 nm, DS 1490 nm ● Minimum receiver sensitivity: -23.5dBm ● Maximum overload optical power: -6dBm |
WAN Interface | ● 1000 Base-X SFP ● 10/100 Base-T Ethernet port (with an RJ-45 connector) |
LAN Interface | ● Four 10/100/1000 BASE-T Ethernet ports (each with an RJ-45 connector), complying with IEEE 802.3u/802.3x ● Automatic MDI/MDIX and speed sensing ● EXT1 10/100 BASE-T port (with an RJ-45 connector) ● Automatic MDI/MDI-X and speed sensing |
Layer 2 features | ● Ethernet port-based VLAN tags and tag removal ● Unicast packet forwarding by MAC address+VLAN ● MAC address learning and aging ● BPDU transparent transmission by default |
Layer 3 features | ● Static IP address configuration for route WAN interfaces ● PPPoE clients and IP address obtaining for route WAN interfaces through PPPoE ● DHCP clients and IP address obtaining for route WAN interfaces through DHCP ● DHCP client with options for auto configuration and upgrade ● Specify 802.1p for route WAN interfaces ● Copy IPTOS to 802.1p for route WAN interfaces |
Multicast | ● Fast leaving ● IGMP V2&V3 snooping ● Packet filtering and forwarding by VLAN+multicast MAC address ● Up to 255 multicast groups ● Limitation on the rate of IGMP messages ● MLDv1 messages in Query, Report, and Done states ● MLDv2 messages in Query and Report states ● MLD snooping in IPv6 L2 transparent transmission |
802.1ag | ● Comply with the IEEE 802.1ag protocol/CFM ● CC, LB, and LT functions ● Alarm status and log recording for errors detected by CC ● Transparent transmission of CFM high-level messages in upstream and downstream directions (VLAN translation rules are the same as those of common data packets.) |
QoS | Queue scheduling: ● Eight SP queues |
Security | ● Anti-DoS attack ● MAC address filtering ● WAN-side ONT access based on IP address filtering |
Y.1731 | ● Single-ended ETH-LM (as the receiving MEP) ● Two-way ETH-DM (as the receiving MEP) |
Do you have any question about the EchoLife HG8040P?
Contact us now via [email protected].
Specific Data Sheet:
EchoLife HG8040P Specification | |
Dimensions (D x W x H) | 134 x 114 x 27 (mm) |
Operating temperature | 0°C to 40°C |
Operating humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 V AC, 50–60 Hz |
System power supply | 12V DC, 0.5 A |
Static power consumption | 3.8 W |
Maximum power consumption | 5.8 W |
Ports | 4GE |
Indicators | EXT/LAN/WAN/OPTICAL/POWER |
Optical Interface | ● Standard optical interfaces ● Maximum reach:20km ● Comply with SFF-8472 ● Wavelengths: US 1310 nm, DS 1490 nm ● Minimum receiver sensitivity: -23.5dBm ● Maximum overload optical power: -6dBm |
WAN Interface | ● 1000 Base-X SFP ● 10/100 Base-T Ethernet port (with an RJ-45 connector) |
LAN Interface | ● Four 10/100/1000 BASE-T Ethernet ports (each with an RJ-45 connector), complying with IEEE 802.3u/802.3x ● Automatic MDI/MDIX and speed sensing ● EXT1 10/100 BASE-T port (with an RJ-45 connector) ● Automatic MDI/MDI-X and speed sensing |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good, we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
