Overview

The Huawei EchoLife EG8280P is an Optical Network Terminal (ONT) used in Huawei's AgilePOL Solution. By using GPON technology, ultra-broadband access is provided for enterprise campuses.

It provides 8 GE ports that support PoE functions and 2 POTS ports. The high forwarding performance ensures the user experience of voice, internet and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8280P
Dimensions (H x W x D)	56 mm x 254 mm x 180 mm
Operating Temperature	-40°C to 55°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	90V to 264V AC, 50Hz/60Hz
System Power Supply	56V DC, 2.5A
Network-side Ports	GPON

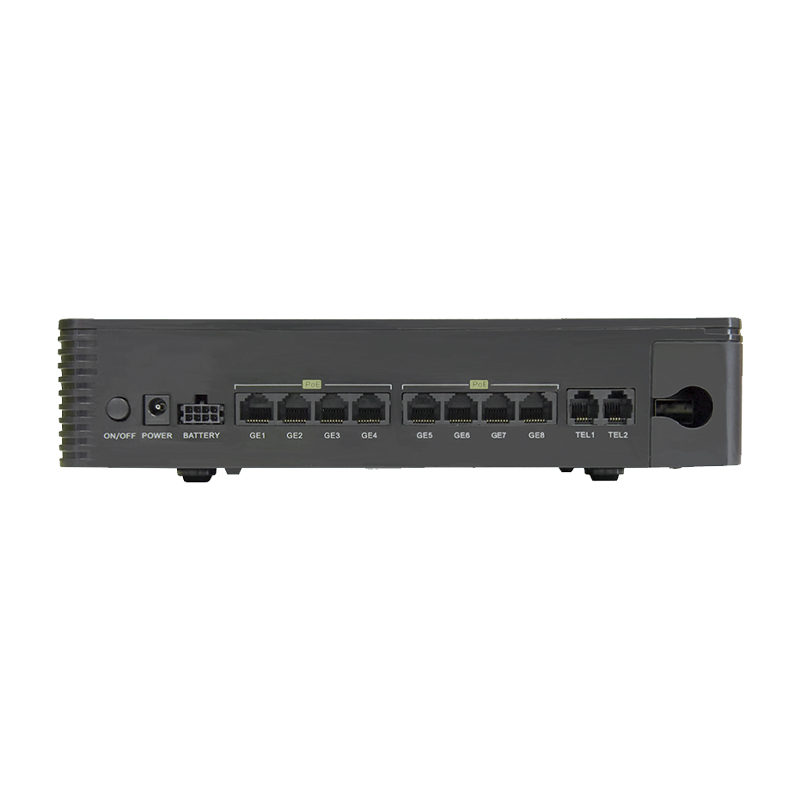

User-side Ports	8 x GE (PoE) + 2 x POTS
Indicators	POWER/PON/LOS/LAN/TEL
Maximum PoE Output Power	Gross power 120W (up to 30W for one GE port)

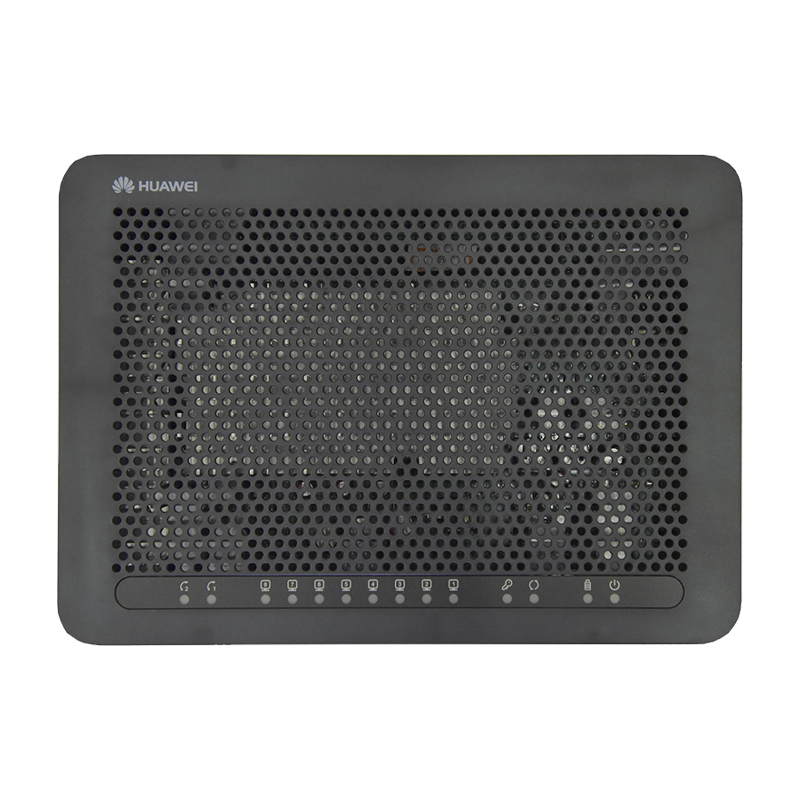

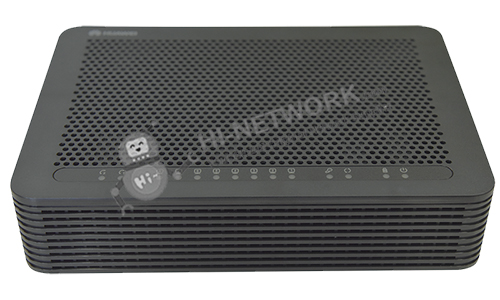

Figure 1 shows the appearance of EchoLife EG8280P.

overview-echolife-eg8280p-datasheet

Product Details

Port Parameters

PON Port

● SC/UPC connector

● SFP optical module

● Transmission rate (unit: Gbit/s)

GPON: downstream 2.488 and upstream 1.244

XG-PON: downstream 9.953 and upstream 2.488

XGS-PON: downstream 9.953 and upstream 9.953

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

GE Electrical Port

● PoE and PoE+

IEEE 802.3af and IEEE 802.3at

● RJ-45 connector

● Port rate autonegotiation (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● Ethernet port-based VLAN transparent transmission and VLAN filtering

POTS Port

● RJ-11 connector

● Line code mode: PCM

● ITU-T Q.551, ITU-T Q.552

Product Function

Automatic Service Provisioning

● Authentication exemption

● XML/OMCI/TR069

Smart O&M

● XML/Web UI management

● Y.1731

● Rogue ONT detection and self-regulation

● Ring network detection

● PPPoE/DHCP/ Call emulation testing

Layer 3 Features

● Default/Static/Policy/Service routes

● VLAN binding

● ALG/UPnP/ARP

● DDNS/DMZ/DNS/NAPT

● PPPoE/Static IP/DHCP/DHCP option66

● Port mapping/Port trigger

Layer 2 Management

● DHCP option82

● PITP

● BPDU transparent transmission

● LLDP/LLDP-MED

Multicast

● IGMP v2/v3 snooping

● Dynamic controllable multicast

● MLDv1/MLDv2 snooping

Voice

● SIP/H.248

● G.711A/μ, G.729 and G.722 coding/decoding

● T.38/G.711 fax mode

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● Filtering based on MAC/IP/URL

● DoS/ARP anti-attacks

● Session number restriction

● Device access control

● 802.1x

Get More Information

Do you have any question about the EchoLife EG8280P (02232PTD)?

Specific Data Sheet:

EchoLife EG8280P Specification
Dimensions (H × W × D)	56 mm × 254 mm × 180 mm
Weight	About 1.1 kg
Operating temperature	-40°C to +55°C
Operating humidity	5%RH to 95%RH, no condensing
Power adapter input	100 V to 240 V AC, 50 Hz/60 Hz
System power supply	56 V DC, 2.5A
UNI	8GE (PoE and PoE+) + 2POTS
NNI	1*GPON/XG-PON/XGS-PON
Static power consumption	12 W
Typical power consumption	14 W (PoE port without PD)
Maximum power consumption	16 W (PoE port without PD) 140 W (PoE port with PD having the maximum power consumption)
Maximum PoE output power	120 W (supported by the system) 30 W (supported by every GE port)
Surge protection specifications	GE port: common mode 4 kV; differential mode 0.5 kV. POTS port: common mode 4 kV; differential mode 0.5 kV. AC power supply: common mode 6 kV; differential mode 6 kV.
PON Port	● SC/UPC connector ● SFP optical module ● Transmission rate (unit: Gbit/s) GPON: downstream 2.488 and upstream 1.244 XG-PON: downstream 9.953 and upstream 2.488 XGS-PON: downstream 9.953 and upstream 9.953 ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding)
GE Electrical Port	● PoE and PoE+ IEEE 802.3af and IEEE 802.3at ● RJ-45 connector ● Port rate auto negotiation (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● Ethernet port-based VLAN transparent transmission and VLAN filtering
POTS Port	● RJ-11 connector ● Line code mode: PCM ● ITU-T Q.551, ITU-T Q.552
