Detail:	Huawei EchoLife EG8247W5-8T ONT, 1 x GPON, 2 x POTS, 4 x GE, 2.4G/5G Wi-Fi, 1 x USB, 1 x RF
Model:	EchoLife EG8247W5-8T
Condition:	Factory Sealed New
Related:	Huawei EchoLife EG8247W ONT 2 POTS 4 GE USB CATV Wi-Fi Huawei EchoLife EG8245W5-8T ONT 1 GPON 2 POTS 4 GE 1 USB Wi-Fi
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.77	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife EG8247W5-8T is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.

It provides 4 GE ports, 2 POTS ports, 1 USB port, 1 CATV port and 2.4G&5G WiFi ports. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

● Smart service

● Smart interconnection

● Smart O&M

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8247W5-8T
Dimensions (H x W x D)	192 mm x 255 mm x 80 mm (with the base) 185 mm x 255 mm x 38 mm (without the base)
Weight	About 770 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 2 A
Static Power Consumption	9.7 W
Maximum Power Consumption	28 W
NNI	GPON
UNI	2POTS + 4GE + 1CATV + 2.4G/5G Wi-Fi + 1USB
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV

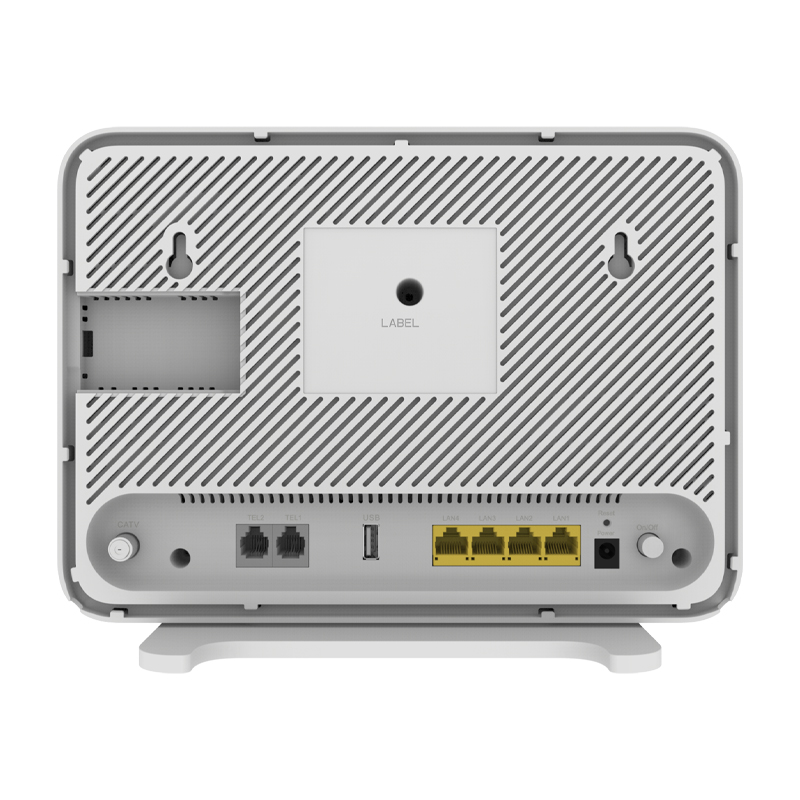

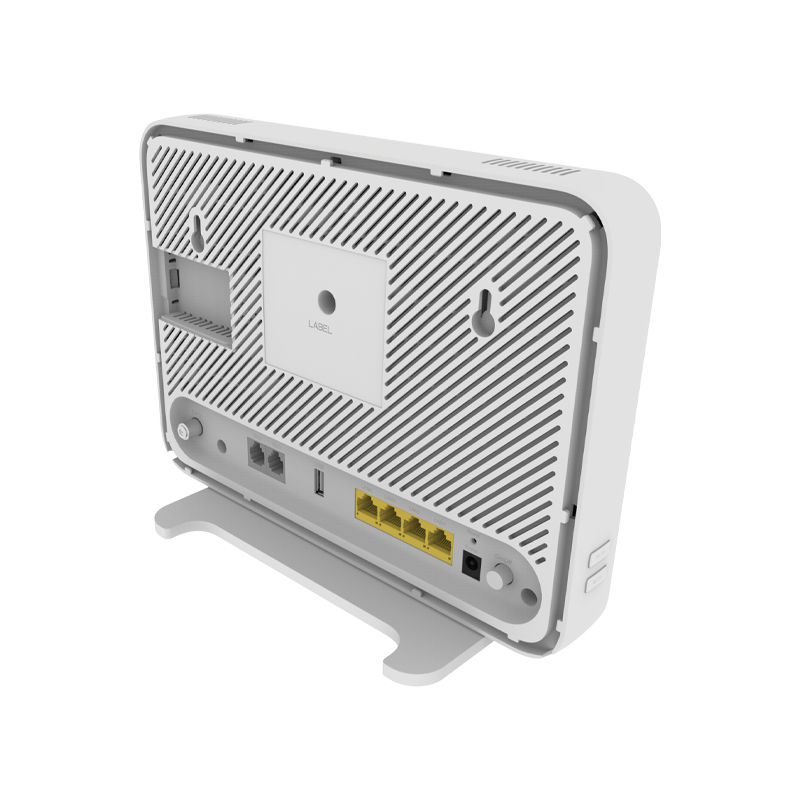

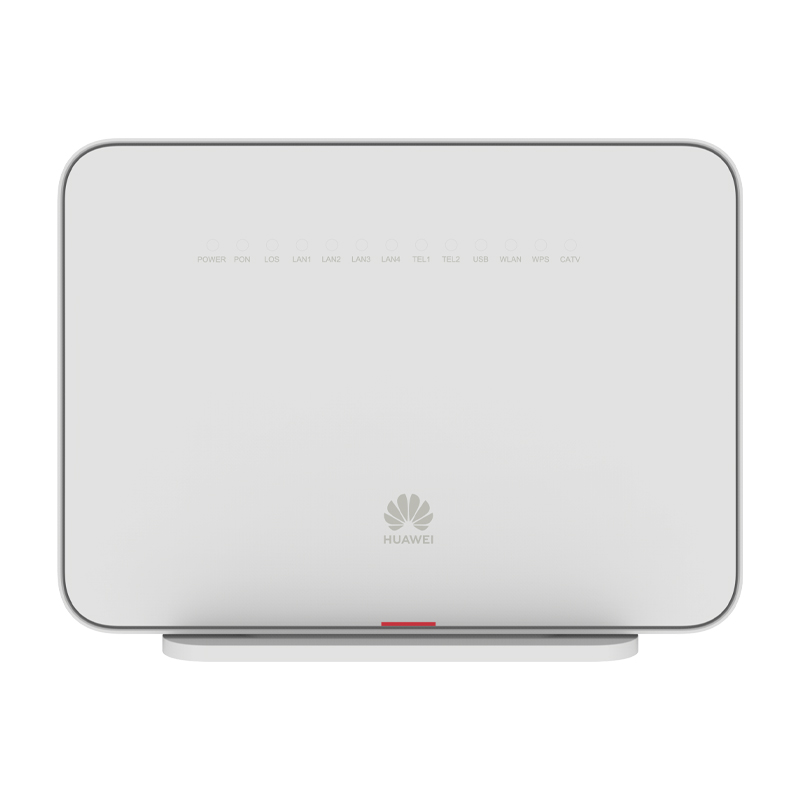

Figure 1 shows the appearance of EchoLife EG8247W5-8T.

overview-echolife-eg8247w5-8t-datasheet

Product Details

Port Parameters

GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
CATV Port	● Frequency Range 45 MHz to 1000 MHz ● Output resistance 75 ohms ● Received average optical power: -8dBm to +2dBm ● RF output power: ≥17dBmV/Ch (With RF source analog channel power input = 20dBmV/ch, and 40 analog / 63 digital channels (4.3% OMI analog, 2.15 % digital)
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 4 × 4 MIMO (2.4G) ● 4 × 4 MIMO (5G) ● Antenna gain: 2 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G&5G concurrent ● Air interface rate: 600 Mbit/s (2.4G), 1733 Mbit/s (5G)

Function List

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any pport, anyservice ● Parental control ● L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Smart Service	● Scheduled Wi-Fi shutdown ● Intelligent Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing ● Association of one account with two POTS ports
Smart O&M	● IPTV video quality diagnosis ● eMDI ● Rogue ONT detection and isolation from the OLT ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● WLAN emulation
Power Saving	● Indicator power saving ● COC V7
Security	● SPI firewall ● Filtering based on MAC/IP/URL addresses
Multicast	● IGMP v2/v3 proxy/snooping ● MLD v1/v2 snooping
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, and DS-Lite ● Static/Default routes ● Multiple services on one WAN port
Common O&M	● OMCI/Web UI/TR069 ● Variable-length OMCI messages ● Dual-system software backup and rollback
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation
Home Network Feature	● Visualized home network management ● Band steering ● Wi-Fi optimization & WiFi roaming ● Wi-Fi O&M ● Tx Beamforming

Get More Information

Do you have any question about the EchoLife EG8247W5-8T?

Specific Data Sheet:

EchoLife EG8247W5-8T Specification
Dimensions (H x W x D)	192 mm x 255 mm x 80 mm (with the base) 185 mm x 255 mm x 38 mm (without the base)
Weight	About 770 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 2 A
Static Power Consumption	9.7 W
Maximum Power Consumption	28 W
NNI	GPON
UNI	2POTS + 4GE + 1CATV + 2.4G/5G Wi-Fi + 1USB
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV
GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
CATV Port	● Frequency Range 45 MHz to 1000 MHz ● Output resistance 75 ohms ● Received average optical power: -8dBm to +2dBm ● RF output power: ≥17dBmV/Ch (With RF source analog channel power input = 20dBmV/ch, and 40 analog / 63 digital channels (4.3% OMI analog, 2.15 % digital)
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 4 × 4 MIMO (2.4G) ● 4 × 4 MIMO (5G) ● Antenna gain: 2 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G&5G concurrent ● Air interface rate: 600 Mbit/s (2.4G), 1733 Mbit/s (5G)
