Huawei EchoLife EG8247W ONT 2 POTS 4 GE USB CATV Wi-Fi

29
5
5/5.0
Q/A
7 Sold/Mon
Detail: Huawei EchoLife EG8247W ONT, 2POTS+4GE+USB+CATV+2.4G Wi-Fi/5G Wi-Fi
Model: EchoLife EG8247W
Condition: Factory Sealed New
Related: Huawei EchoLife EG8247W5-8T GPON ONT 2 POTS 4 GE 1 RF 1 USB Wi-Fi Huawei EchoLife EG8245W5-8T ONT 1 GPON 2 POTS 4 GE 1 USB Wi-Fi
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.69
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife EG8247W is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology.

It provides 4 GE+2 POTS+1 USB+1 RF+2 WiFi (4 GE ports, 2 POTS ports, 1 USB port, 1 RF port, 1 2.4G WiFi port and 1 5G WiFi port). The high-performance forwarding capability ensures the service experience of voice, data, CATV and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.



Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife EG8247W

Dimensions (W x D x H)

184 mm x 295 mm x 82 mm

Weight

About 690 g

Operating Temperature

-40°C to +55°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 3 A

Static Power Consumption

8 W

Maximum Power Consumption

32 W

NNI

GPON

UNI

2POTS+4GE+USB+CATV+2.4G Wi-Fi/5G Wi-Fi

Indicators

Power/PON/LOS/TEL/LAN/CATV/WLAN/WPS/USB

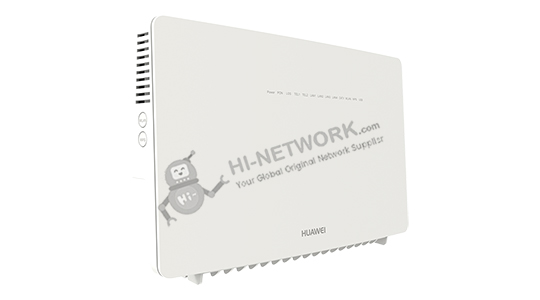

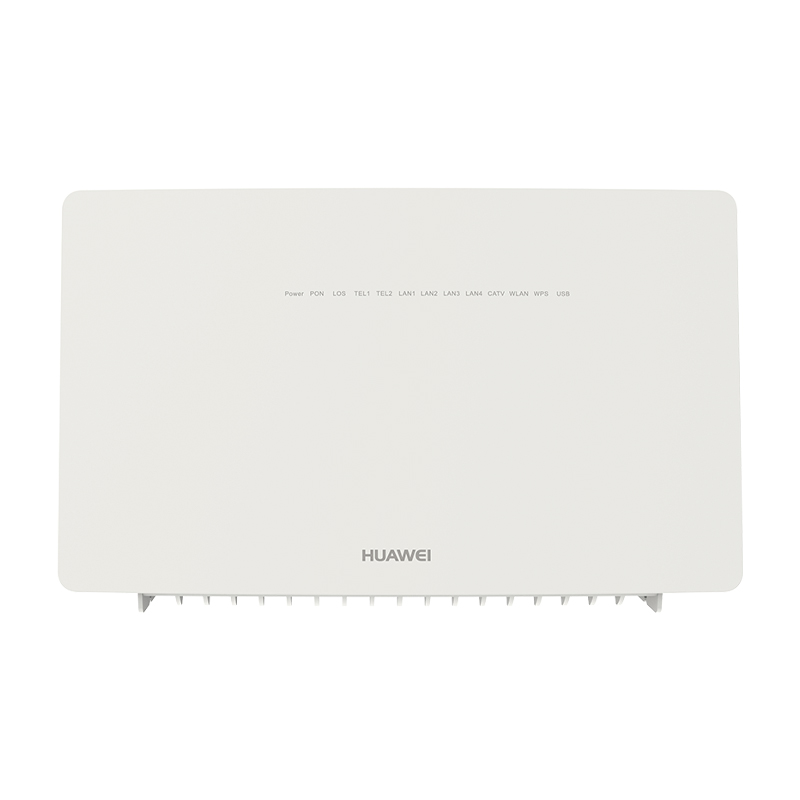

Figure 1 shows the appearance of EchoLife EG8247W.

overview-echolife-eg8247w-datasheet


Product Details


Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

CATV Port

● Bandwidth 54-870 MHz

● Output resistance 75 ohms

USB Port

● USB 3.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 3 x 3 MIMO (2.4G)

● 4 x 4 MIMO (5G)

● MU-MIMO

● Antenna gain: 2 dBi

● WMM

● Multiple SSIDs

● WPS

● DFS

● Beamforming

● Band Steering

● Air Time Fairness

● Air interface rate: 450 Mbps (2.4G); 1733 Mbps (5G)


Function List

Smart Interconnection

● Smart Wi-Fi coverage

● SIP/H.248 auto-negotiation

● Any port, any service

● Parental control

● L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart Service

● Smart Wi-Fi sharing:

Portal/802.1x authentication; SoftGRE-based sharing

● Association of one account with two POTS ports

Smart O&M

● IPTV video quality diagnosis

● Variable-length OMCI messages

● Active/Passive rogue ONT detection and isolation

● Call emulation, and circuit test and loop-line test

● PPPoE/DHCP simulation testing

● WLAN emulation

Layer 3 Features

● PPPoE/Static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, and DS-Lite

● Static/Default routes

● Multiple services on one WAN port

Multicast

● IGMP v2/v3 proxy /snooping

● MLD v1/v2 snooping

● Multicast services through Wi-Fi

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

Security

● SPI firewall

● Filtering based on MAC/IP/URL addresses

Common O&M

● OMCI/Web UI/TR069

● Dual-system software backup and rollback

Power Saving

● Indicator power saving

● Scheduled Wi-Fi shutdown

● COC V5


Get More Information

Do you have any question about the EchoLife EG8247W?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife EG8247W Specification

Dimensions (W x D x H)

184 mm x 295 mm x 82 mm

Weight

About 690 g

Operating Temperature

-40°C to +55°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 3 A

Static Power Consumption

8 W

Maximum Power Consumption

32 W

NNI

GPON

UNI

2POTS+4GE+USB+CATV+2.4G Wi-Fi/5G Wi-Fi

Indicators

Power/PON/LOS/TEL/LAN/CATV/WLAN/WPS/USB

GPON Port

● Class B+

● Receiver sensitivity: -27 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

CATV Port

● Bandwidth 54-870 MHz

● Output resistance 75 ohms

USB Port

● USB 3.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 3 x 3 MIMO (2.4G)

● 4 x 4 MIMO (5G)

● MU-MIMO

● Antenna gain: 2 dBi

● WMM

● Multiple SSIDs

● WPS

● DFS

● Beamforming

● Band Steering

● Air Time Fairness

● Air interface rate: 450 Mbps (2.4G); 1733 Mbps (5G)
