Huawei EchoLife EG8240H5 ONT 4 GE 2 POTS

USD

5 5/5.0 Reviews Q/A 11 Sold/Mon
Detail:	Huawei EchoLife EG8240H5 ONT, 4GE + 2POTS
Model:	EchoLife EG8240H5
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.25	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Powered by Gigabit Passive Optical Network (GPON) technology, EchoLife EG8240H5 is an indoor Optical Network Terminal (ONT) that offers ultra-broadband access for personal home and Small Office and Home Office (SOHO) users. The device features four GE ports and two Plain Old Telephone Service (POTS) ports, with high-performance service forwarding capabilities ensuring an exceptional experience for Voice over Internet Protocol (VoIP), Internet, and High Definition (HD) videos. As such, EchoLife EG8240H5 not only offers a comprehensive terminal solution for today, but also future-oriented service support capabilities for the networks of tomorrow.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8240H5
Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Weight	About 250 g
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50/60 Hz
System power supply	11–14 V DC, 1.5A
Static power consumption	5.3 W
Maximum power consumption	18 W
NNI	GPON
UNI	1POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Optical Connector	SC/APC

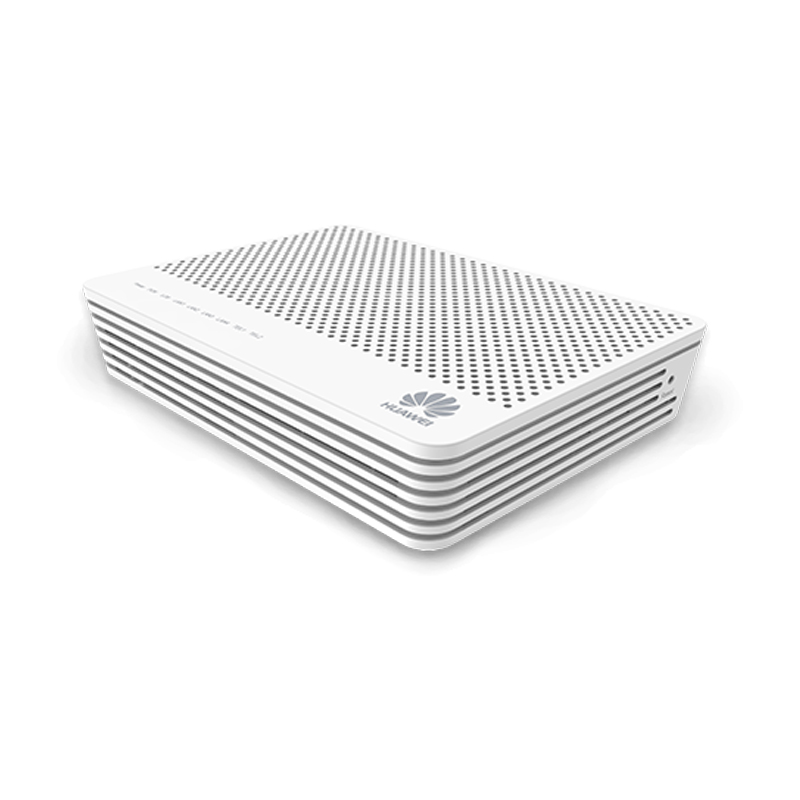

Figure 1 shows the appearance of EchoLife EG8240H5.

overview-echolife-eg8240h5-datasheet

Product Details

Interface Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Overload optical power: -8 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

● Type B (single-homing & dual-homing)

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Local switching/isolation based on Ethernet ports

● Transparent transmission of IPv6 packets at Layer 2

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

Product Function

Smart Interconnection	● SIP/H.248 auto-negotiation
Smart Service	● Association of one account with two POTS ports ● L2 forwarding: 1G uplink, 2G downlink
Smart O&M	● Variable-length OMCI messages ● Rogue ONT detection and isolation from the OLT ● PPPoE/DHCP simulation testing ● Call emulation, and circuit test and loopline test ● eSight management
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Security	● MAC address filtering
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in power-saving state ● COC V5

Get More Information

Do you have any question about the EchoLife EG8240H5?

Specific Data Sheet:

EchoLife EG8240H5 Specification
Dimensions (H x W x D)	30 x 168 x 115 mm
Weight	Approximately 220 g
Operating Temperature	0–40°C
Operating Humidity	5–95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 2A
Static Power Consumption	3 W
Maximum Power Consumption	6.6 W
NNI	GPON
UNI	4 x GE + 2 x POTS
Optical Connector	SC/APC
Indicators	Power/PON/LOS/LAN/TEL
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing & dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Local switching/isolation based on Ethernet ports ● Transparent transmission of IPv6 packets at Layer 2
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
Installation Mode	On a desk or wall
