Huawei EchoLife EG8145V5 ONT 1 POTS 4 GE 1 USB Wi-Fi

USD

5 5/5.0 Reviews Q/A 12 Sold/Mon
Detail:	Huawei EchoLife EG8145V5, an intelligent routing-type ONT, 1POTS+4GE+2.4G/5G Wi-Fi+1USB
Model:	EchoLife EG8145V5
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.7	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife EG8145V5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. It provides 4 GE+1 POTS+1 USB+2 WiFi(4 GE ports, 1 POTS port, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8145V5
Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Weight	About 250 g
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50/60 Hz
System power supply	11–14 V DC, 1.5A
Static power consumption	5.3 W
Maximum power consumption	18 W
NNI	GPON
UNI	1POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Optical Connector	SC/APC

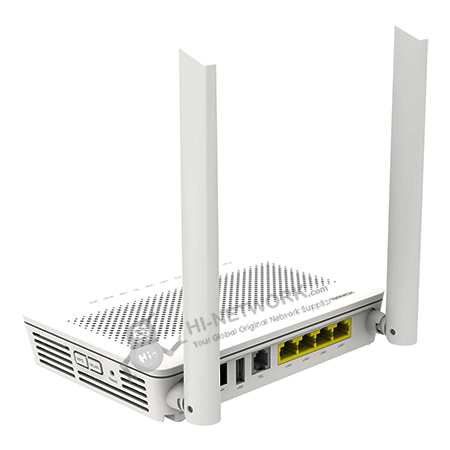

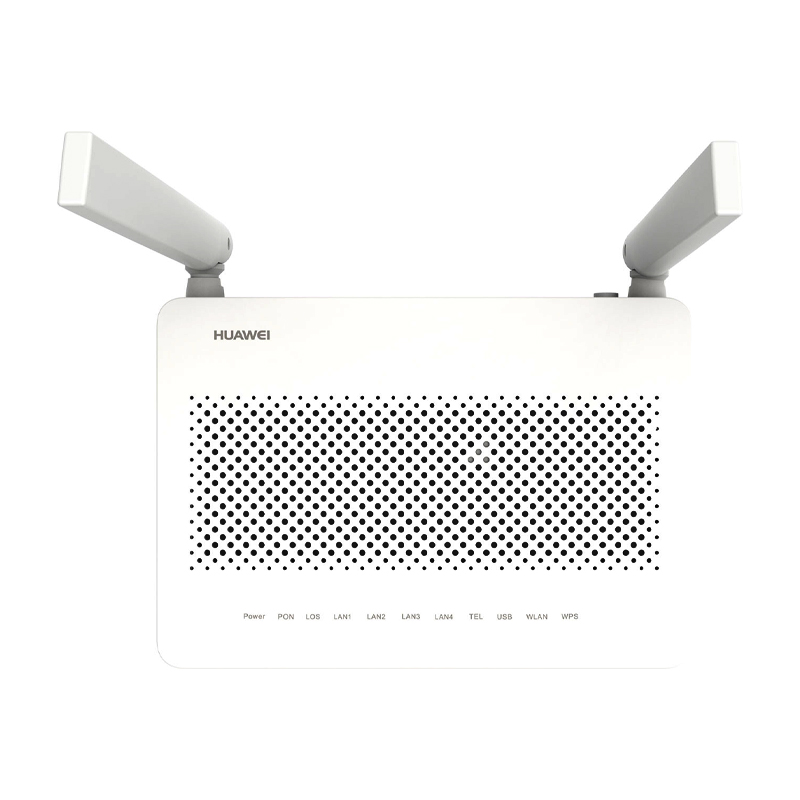

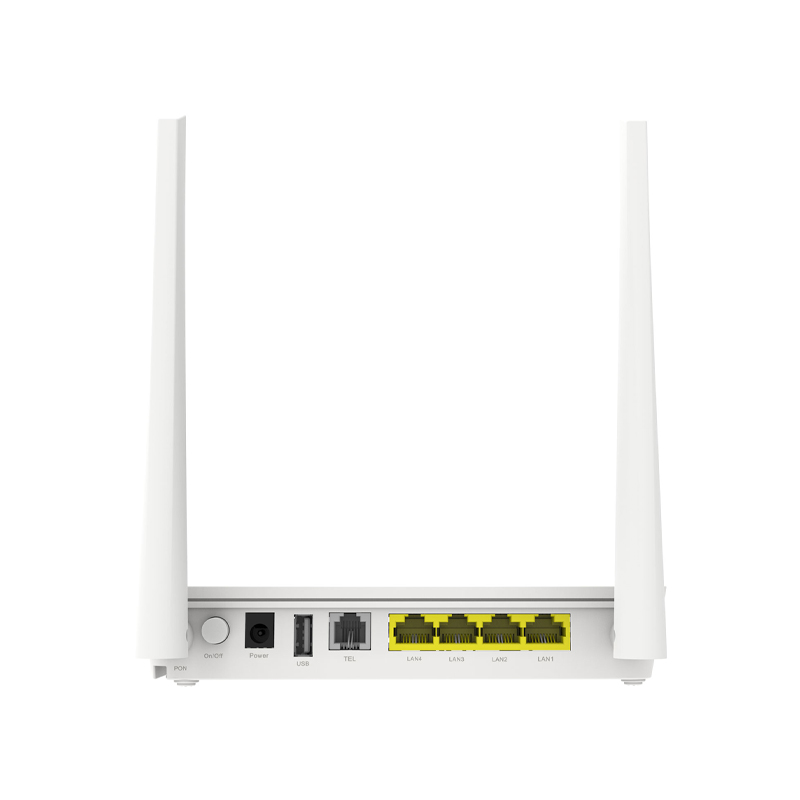

Figure 1 shows the appearance of EchoLife EG8145V5.

overview-echolife-eg8145v5-datasheet

Cisco Price, Dell Price, Huawei Price, ZTE HPE Fortinet Switch Router Server At Low Price - Hi-network.com

Product Details

Interface Parameters

GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ~ -29dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310nm, DS 1490nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing&dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s ● Interoperable with 3rd party device.
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 2 × 2 MIMO (2.4G&5G) ● Antenna gain: 5 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G&5G concurrent ● Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G)

Product Function

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any port any service ● Parental control ● L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Smart Service	● Scheduled Wi-Fi shutdown ● Smart Wi-Fi sharing: − Portal/802.1x authentication − SoftGRE-based sharing
Smart O&M	● IPTV video quality diagnosis ● eMDI ● Rogue ONT detection and isolation from the OLT ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● WLAN emulation
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, DSLite and IPv6 SPI ● Static/Default routes ● Multiple services on one WAN port
Multicast	● IGMP v2/v3 proxy/snooping ● MLD v1/v2 snooping
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation
Security	● SPI firewall ● Filtering based on MAC/IP/URL addresses ● Support WEP, 128-bit WEP, WPA2-PSK, WPAPSK, WPA.
Common O&M	● OMCI/Web UI/TR069 ● Variable-length OMCI messages ● Dual-system software backup and rollback
Power Saving	● Indicator power saving ● COC V5

Get More Information

Do you have any question about the EchoLife EG8145V5?

Specific Data Sheet:

EchoLife EG8145V5 Specification
Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Weight	About 250 g
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50/60 Hz
System power supply	11–14 V DC, 1.5A
Static power consumption	5.3 W
Maximum power consumption	18 W
NNI	GPON
UNI	1POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ~ -29dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310nm, DS 1490nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing&dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s ● Interoperable with 3rd party device.
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 2 × 2 MIMO (2.4G&5G) ● Antenna gain: 5 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G&5G concurrent ● Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G)
