Huawei EchoLife EG8120L GPON ONT 1 POTS 1 GE 1 FE

USD

5 5/5.0 Reviews Q/A 12 Sold/Mon
Detail:	Huawei EchoLife EG8120L, an intelligent bridging-type ONT, GPON Terminal, SC/APC, 1POTS+1GE+1FE
Model:	EchoLife EG8120L
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.155	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The EchoLife EG8120L is an intelligent routing-type ONT that provides one GE port, one POTS port, and one FE port.The EG8120L features high-performance service forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service-supporting capabilities for networks.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8120L
Dimensions (H x W x D)	30 mm x 94 mm x 115 mm (without external antenna and pads)
Weight	Approximately 155 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60 Hz
System Power Supply	11V to 14V DC, 1A
Static Power Consumption	3.8 W
Maximum Power Consumption	4.9 W
NNI	GPON
UNI	1GE + 1FE + 1POTS
Optical Connector	SC/APC

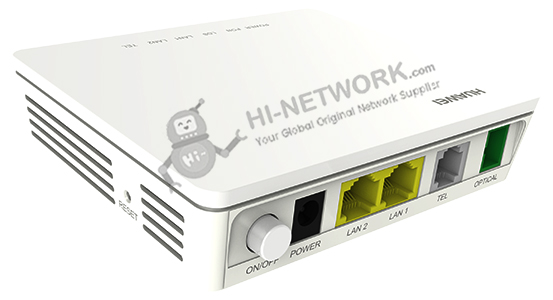

Figure 1 shows the appearance of EchoLife EG8120L.

overview-echolife-eg8120l-datasheet

Product Details

Interface Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm ~ -29dBm

● Overload optical power: -8 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

● Type B (single-homing & dual-homing)

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Local switching/isolation based on Ethernet ports

● Transparent transmission of IPv6 packets at Layer 2

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

Product Function

Smart Interconnection	● SIP/H.248 auto-negotiation ● Any port any service ● Parental control
Smart O&M	● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing ● Call emulation, and circuit test and loop-line test ● eSight management
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Security	● MAC address filtering
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in power-saving state ● COC V5

Get More Information

Do you have any question about the EchoLife EG8120L?

Specific Data Sheet:

EchoLife EG8120L Specification
Dimensions (H x W x D)	30 mm x 94 mm x 115 mm (without external antenna and pads)
Weight	Approximately 155 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60 Hz
System Power Supply	11V to 14V DC, 1A
Static Power Consumption	3.8 W
Maximum Power Consumption	4.9 W
NNI	GPON
UNI	1GE + 1FE + 1POTS
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ~ -29dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing & dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Local switching/isolation based on Ethernet ports ● Transparent transmission of IPv6 packets at Layer 2
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
