Huawei EchoLife EG8084P (02232SVY) Industrial ONU 1 GPON 8 GE

USD

5 5/5.0 Reviews Q/A 12 Sold/Mon
Detail:	Huawei EchoLife EG8084P industrial ONU, 8GE, 1GPON/XG-PON/XGS-PON
Model:	EchoLife EG8084P (02232SVY)
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 1.9	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife EG8084P is an industrial ONU used in Huawei’s Agile POL Solution. The EG8084P utilizes GPON technology to provide ultra-broadband access for enterprise campuses. It provides one GPON or XG-PON or XGSPON port on the upstream, and also provides 8 GE ports to support PoE++ and PoE+ functions. The high-performance service forwarding capabilities to ensure excellent video surveillance quality for enterprise campuses and supports future-oriented services.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8084P
Dimensions (L x W x H)	43.6 mm x 235 mm x 180 mm
Weight	About 1.9 kg
Operating Temperature	-40℃ to 70℃
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60 Hz
Network-side Ports	1 x GPON/XG-PON/XGS-PON
User-side Ports	8 x GE
Indicators	PWR/PON/LOS/LAN/PoE+/PoE++
Maximum PoE Output Power	Gross power up to 210W, number 1 and 2 GE ports support up to 60W (PoE++) and number 3 to 8 GE ports support up to 30W (PoE+)

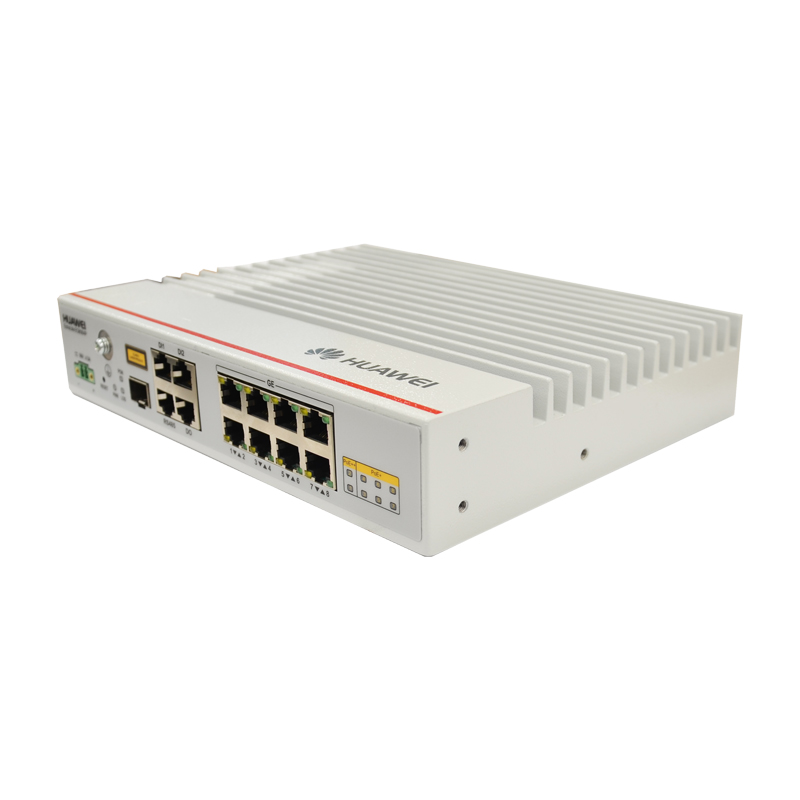

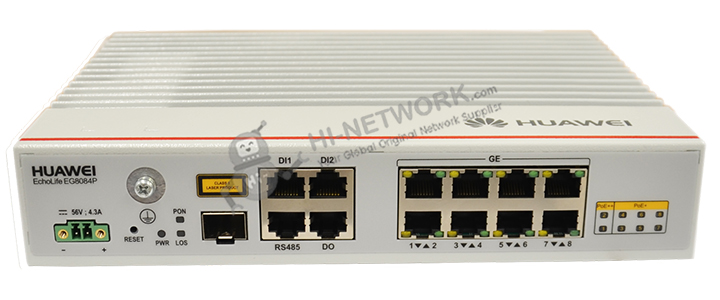

Figure 1 shows the appearance of EchoLife EG8084P.

overview-echolife-eg8084p-datasheet

Product Details

Port Parameters

GPON Port

● SC/UPC connector

● SFP+ optical module

● GPON: Class B+; Receiver sensitivity: -27dBm; Overload optical power: -8dBm

XG-PON: Class N1/N2a; Receiver sensitivity: -28dBm; Overload optical power: -8dBm

XGS-PON: Class N1/N2; Receiver sensitivity: -28dBm; Overload optical power: -9dBm

● Transmission rate (unit: Gbit/s)

GPON: downstream 2.488, upstream 1.244

XG-PON: downstream 9.953, upstream 2.488

XGS-PON: downstream 9.953, upstream 9.953

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

Ethernet Electrical Port

● PoE & PoE+ & PoE++, complying with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt(draft)

● RJ-45 connector

● Auto ports speed (10/100/1000 Mbit/s)

Ethernet Electrical Port (Continued)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned on an Ethernet port

● Ethernet port-based VLAN transparent transmission and filtering

Product Function

Automatic Service Provisioning

● Authentication exemption

● XML/OMCI/TR069

Smart O&M

● XML / Web UI

● eSight management

● Rogue ONT detection and self-regulation

● Ring network detection

● PPPoE / DHCP emulation testing

Layer 3 Features

● Default / Static / Policy / Service routes

● VLAN binding

● ALG/UPnP/ARP

● DDNS/DMZ/DNS/NAPT

● PPPoE/Static IP/DHCP

● Port mapping/Port trigger

Layer 2 Management

● DHCP Option82

● PITP

● BPDU transparent transmission

● LLDP/LLDP-MED

Multicast

● IGMP v2/v3 snooping

● Dynamic controllable multicast

● MLDv1/MLDv2 snooping

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● Filtering based on MAC/IP/URL

● DoS/ARP anti-attacks

● Session number restriction

● Device access control

● Support four authentication methods for EAPMD5/TLS/TTLS/PEAP of 802.1x

Get More Information

Do you have any question about the EchoLife EG8084P (02232SVY)?

Specific Data Sheet:

EchoLife EG8084P Specification
Dimensions (L x W x H)	43.6 mm x 235 mm x 180 mm
Weight	About 1.9 kg
Operating Temperature	-40℃ to 70℃
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60 Hz
System Power Supply	56V DC, 4.5A
Static Power Consumption	9W
Maximum Power Consumption	17W
NNI	1 x GPON/XG-PON/XGS-PON
UNI	8 x GE
Maximum PoE Output Power	Gross power up to 210W, number 1 and 2 GE ports support up to 60W (PoE++) and number 3 to 8 GE ports support up to 30W (PoE+)
Surge Protection Specifications	GE port: Common mode 6 kV; differential mode 1.5 kV AC power supply: Common mode 6 kV; differential mode 6 kV; different mode 3 kA of surge current
Optical Connector	SC/UPC
Indicators	PWR/PON/LOS/LAN/PoE+/PoE++
GPON Port	● SC/UPC connector ● SFP+ optical module ● GPON: Class B+; Receiver sensitivity: -27dBm; Overload optical power: -8dBm XG-PON: Class N1/N2a; Receiver sensitivity: -28dBm; Overload optical power: -8dBm XGS-PON: Class N1/N2; Receiver sensitivity: -28dBm; Overload optical power: -9dBm ● Transmission rate (unit: Gbit/s) GPON: downstream 2.488, upstream 1.244 XG-PON: downstream 9.953, upstream 2.488 XGS-PON: downstream 9.953, upstream 9.953 ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding)
Ethernet Port	● PoE & PoE+ & PoE++, complying with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt(draft) ● RJ-45 connector ● Auto ports speed (10/100/1000 Mbit/s)
Installation Mode	Support rack and a network box mounting, on a DIN rail or vertically on the supporting plane
