Detail: Huawei EchoLife EG8045H ONT, intelligent bridging-type ONT, 4GE + Wi-Fi + USB
Model: EchoLife EG8045H
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.26
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife EG8045H is an routing-type ONT used in the Huawei all-optical access solution. It uses GPON technology to provide ultra-broadband access for users.

It provides 4 GE Ethernet ports, 1 USB port and 1 2.4G WiFi port. High-performance forwarding provides Internet and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.


Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife EG8045H

Dimensions (W x D x H)

176 mm x 138.5 mm x 28 mm (without an external antenna)

Weight

About 260 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 1 A

Static Power Consumption

6.5 W

Maximum Power Consumption

10.5 W

Ports

4GE + Wi-Fi + USB

Indicators

POWER/PON/LOS/LAN/USB/WLAN/WPS

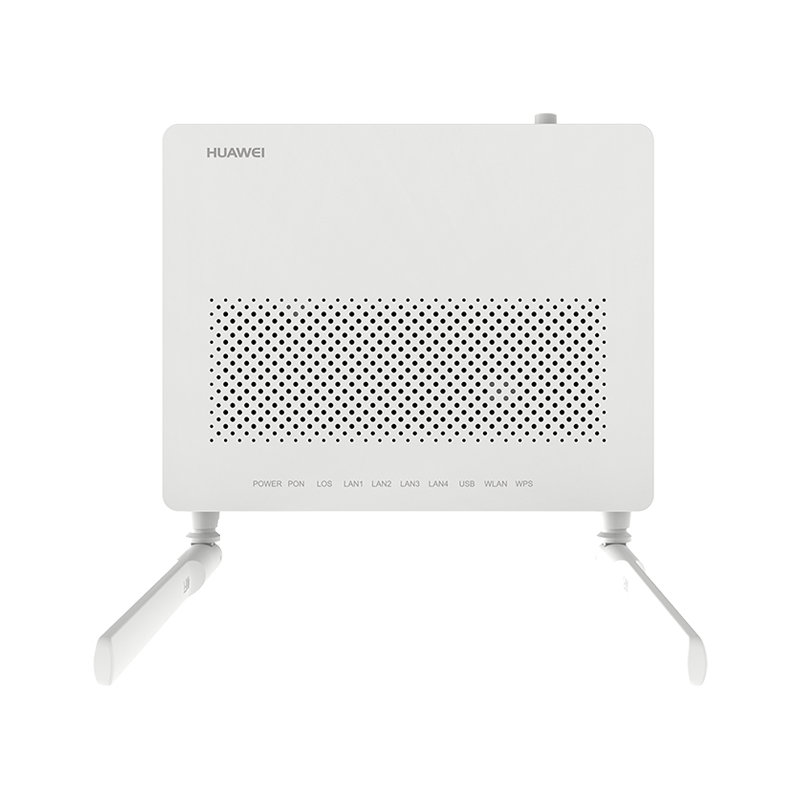

Figure 1 shows the appearance of EchoLife EG8045H.

overview-echolife-eg8045h-datasheet


Product Details


Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

USB Port

● USB2.0

● FTP-based network storage

WLAN

● IEEE 802.11b/g/n

● 2 x 2 MIMO

● Antenna gain: 5 dBi

● WMM

● Multiple SSIDs

● WPS

● Air interface rate: 300 Mbps


Function List

Smart Interconnection

● Smart Wi-Fi coverage

● Any port any service

● Parental control

● L2/L3(IPv4) forwarding: 1G uplink, 2G

Smart O&M

● IPTV video quality diagnosis

● Variable-length OMCI messages

● Active/Passive rogue ONT

● detection and isolation

● PPPoE/DHCP simulation testing

● WLAN emulation

Smart Service

● Smart Wi-Fi sharing: 802.1x authentication

● Portal SoftGRE-based sharing

Power Saving

● Indicator power saving

● Scheduled Wi-Fi shutdown

● COCv4

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

Security

● SPI firewall

● Anti-DoS attack

● Filtering based on MAC/IP/URL addresses

Layer 3 Features

● PPPoE/Static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, and DS-Lite

● Static/Default routes

● Multiple services on one WAN port

Multicast

● IGMP v2/v3 snooping

● IGMP v2/v3 proxy

● MLD v1/v2 snooping

Common O&M

● OMCI/Web UI/TR069

● Dual-system software backup and rollback


Get More Information

Do you have any question about the EchoLife EG8045H?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife EG8045H Specification

Dimensions (W x D x H)

176 mm x 138.5 mm x 28 mm (without an external antenna)

Weight

About 260 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 1 A

Static Power Consumption

6.5 W

Maximum Power Consumption

10.5 W

Ports

4GE + Wi-Fi + USB

Indicators

POWER/PON/LOS/LAN/USB/WLAN/WPS

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

USB Port

● USB2.0

● FTP-based network storage

WLAN

● IEEE 802.11b/g/n

● 2 x 2 MIMO

● Antenna gain: 5 dBi

● WMM

● Multiple SSIDs

● WPS

● Air interface rate: 300 Mbps
