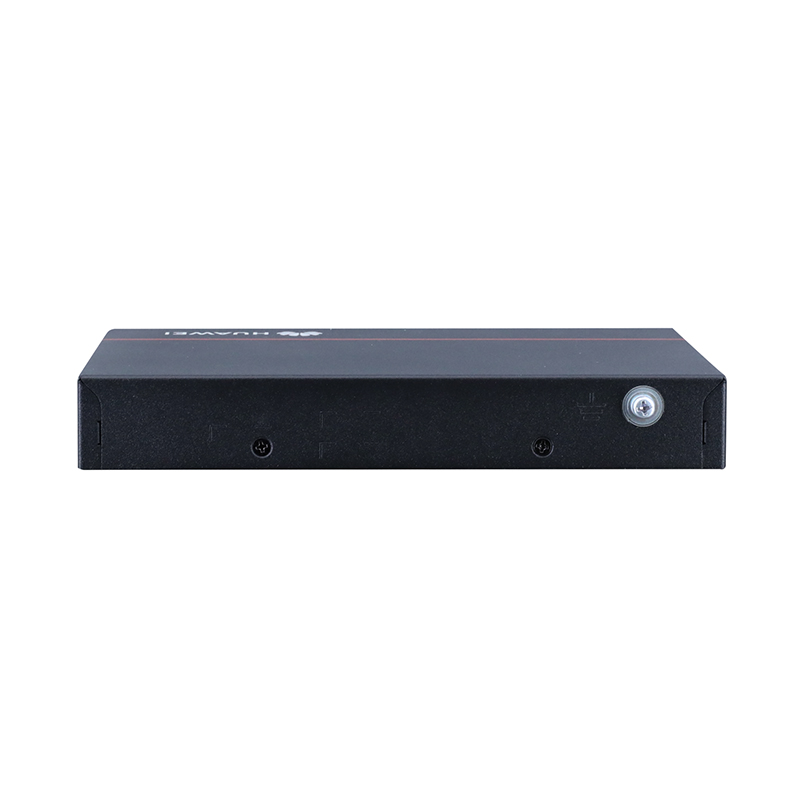

Model

S5731-L4T2ST-RUA

Wide [mm]

185.0 mm

Depth [mm]

115.0 mm

Height [mm]

27.0 mm

Chassis height [U]

0.61

Weight with packaging [kg(lb)]

1.02 (2.25)

Weight without packaging [kg(lb)]

0.74 (1.63)

Typical power consumption [W]

4.88 W (device)

5.08 W (device + power adapter)

Maximum power consumption [W]

5.06 W (device)

5.26 W (device + power adapter)

Typical heat dissipation [BTU/hour]

16.65 (device)

17.33 (device + power adapter)

Maximum heat dissipation [BTU/hour]

17.27 (device)

17.95 (device + power adapter)

Heat dissipation mode

Natural heat dissipation

Power supply mode

Power adapter

Rated input voltage [V]

Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 12 V DC

Input voltage range [V]

Power adapter input: 90–290 V AC; 47–63 Hz

Maximum input current [A]

1 A

Number of card slots

0

Number of power slots

0

Memory

--

Flash memory

--

Redundant power supply

Not supported

Types of fans

None

Noise at normal temperature (acoustic pressure) [dB(A)]

Noise-free (no fans): < 20

Noise at normal temperature (acoustic power) [dB(A)]

Noise-free (no fans): < 30

Airflow direction

-

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

Not supported

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Restriction on the operating temperature variation rate

When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.).

The device cannot start when the temperature is lower than 0°C (32°F).

The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F)) when the device uses the following optical modules:

- GE optical modules with a transmission distance of less than or equal to 10 km

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

MTBF [year]

83.23

MTTR [hour]

2

Availability

>0.99999

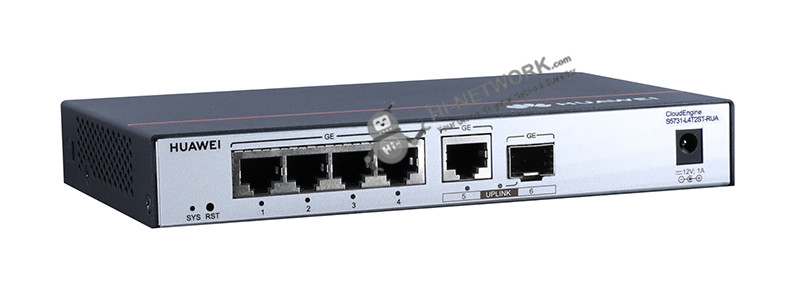

Maximum number of physical ports on the entire device

6

Maximum number of 100GE ports

0

Maximum number of 40GE ports

0

Maximum number of 25GE ports

0

Maximum number of 10GE ports

0

Maximum number of GE ports

6

Maximum number of FE ports

5

1000M electrical interface

4

1000M optical interface

1

USB

Not supported

Console port

Not supported

Eth Management port

Not supported

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

Power adapter: ±6 kV in differential mode and ±6 kV in common mode

RPS input

Not supported

PoE

Not supported
