Model

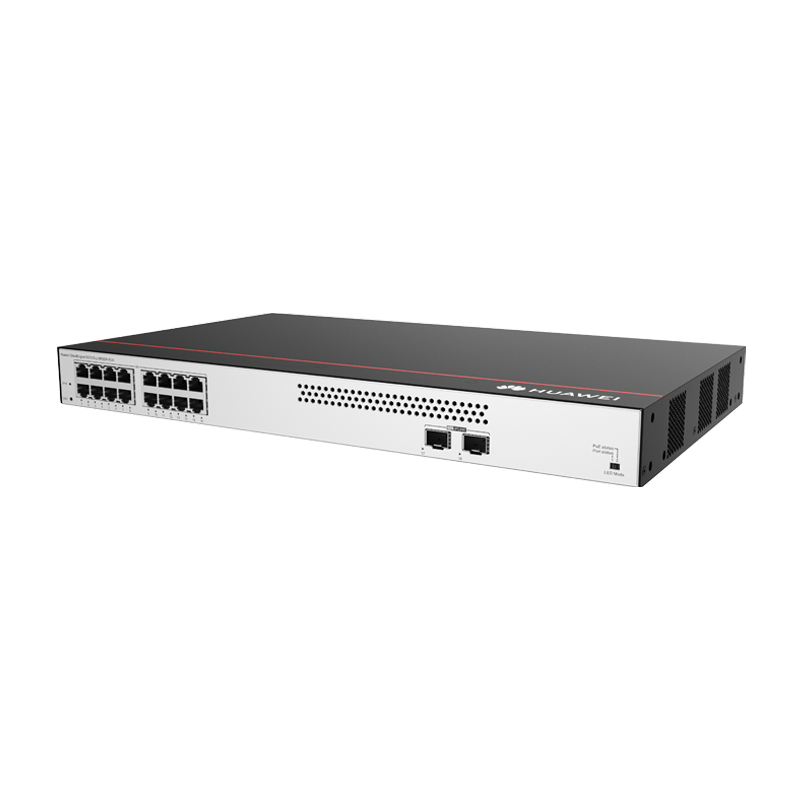

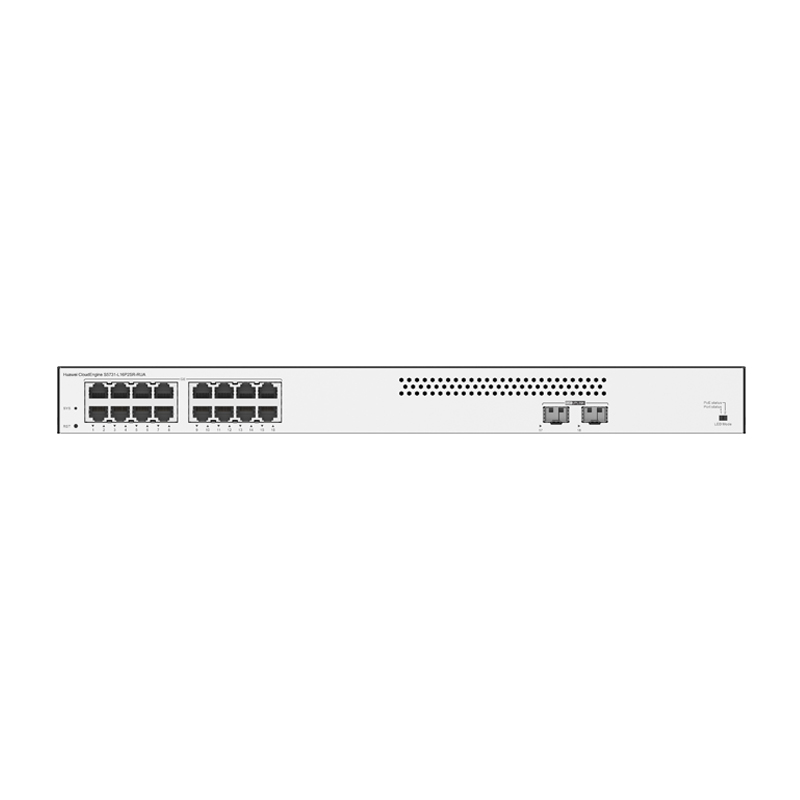

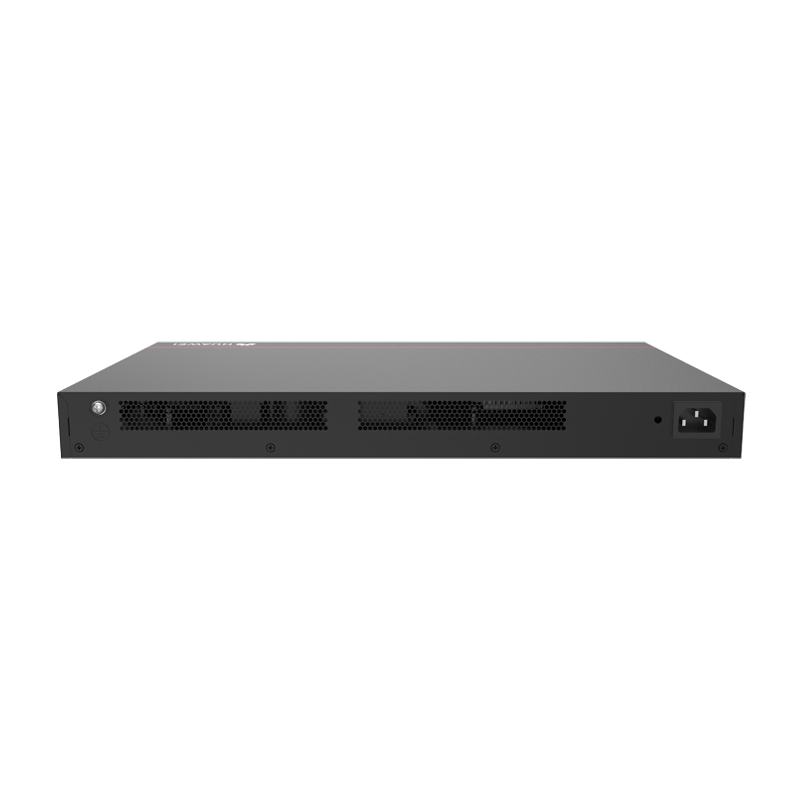

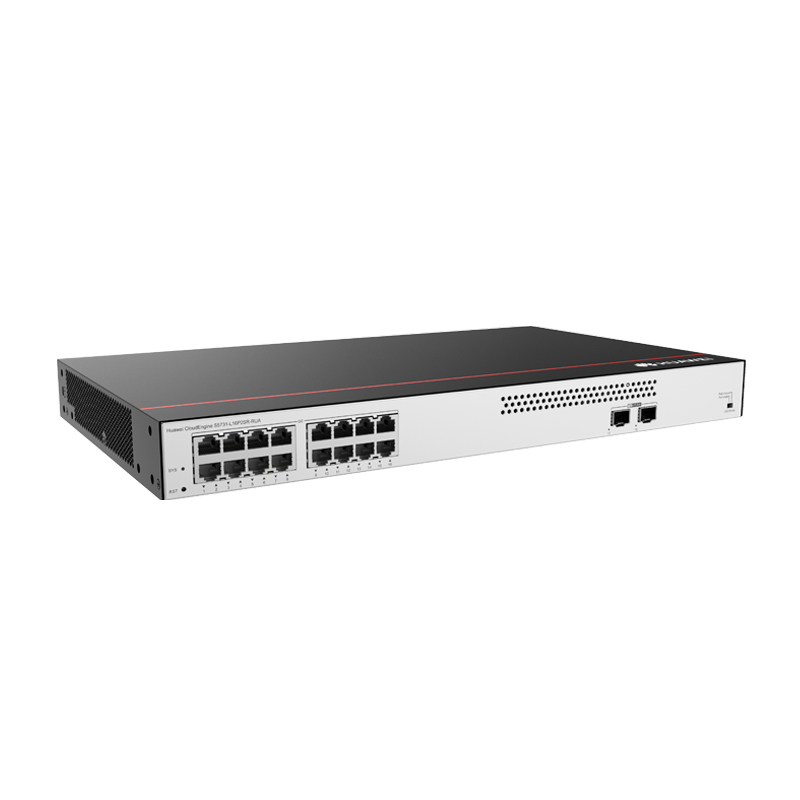

S5731-L16P2SR-RUA

Part Number

98012157

Description

S5731-L16P2SR-RUA (16*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.)

Chassis height [U]

1

Weight without packaging [kg(lb)]

3.01 (6.64)

Weight with packaging [kg(lb)]

3.65 (8.05)

Typical power consumption [W]

16.42

Typical heat dissipation [BTU/hour]

56.03

Maximum power consumption [W]

- Without PoE: 16.7 W

- Full PoE load: 160.45 W (PoE: 125 W)

Maximum heat dissipation [BTU/hour]

- Without PoE: 56.98

- Full PoE load: 547.47

Static power consumption [W]

9.28

MTBF [years]

78.68

MTTR [hours]

2

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

Noise-free (no fans), < 30

Noise at normal temperature (acoustic pressure) [dB(A)]

Noise-free (no fans), < 20

Number of card slots

0

Number of power slots

0

Number of fans modules

0

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

AC input: 100–240 V AC; 50/60 Hz

Input voltage range [V]

AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Memory

-

Flash memory

-

Console port

Not supported

Eth Management port

Not supported

USB

Not supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±6 kV

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

None

Heat dissipation mode

Natural heat dissipation without fans

Airflow direction

N/A

PoE

Supported

Certification

EMC certification

Safety certification

Manufacturing certification
