Model

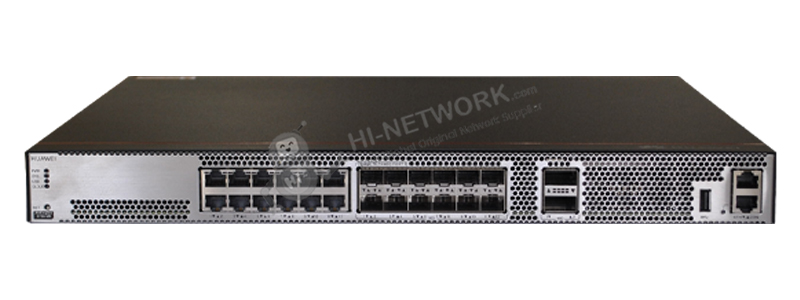

AirEngine 9700-M1

Part Number

02353VVC, 02354FRN, 02354FRN-001

Description

AirEngine9700-M1 mainframe (12*GE ports, 12*10GE SFP+ ports, 2*40GE QSFP+ ports, no power)

Installation Type

Rack

Dimensions without packaging (H x W x D) [mm(in.)]

Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)

Weight without packaging [kg(lb)]

6.20 kg (13.67 lb)

Weight with packaging [kg(lb)]

8.5kg (18.74 lb)

Storage

M.2 memory card 32 GB

Console port

RJ45

Eth Management port

RJ45

Maximum power consumption [W]

159.2

Maximum heat dissipation [BTU/hour]

543.2

Power supply mode

Pluggable power supply

Number of power modules

2

Service port surge protection

6 kV in common mode

Types of fans

Pluggable

Number of fan modules

3

Maximum number of physical ports on the entire device

2*40G (QSFP+) + 12*10GE (SFP+) + 12*GE

One 40G interface and four 10G interfaces are mutually exclusive.

Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]

53kPa - 106kPa ETSI 300 019-2-3

Noise at normal temperature (acoustic power) [dB(A)]

≤ 55 dBA

Ground

Ground

USB

Standard USB 3.0 port (host type A) x 1

MTBF [year]

28

MTTR [hour]

2
