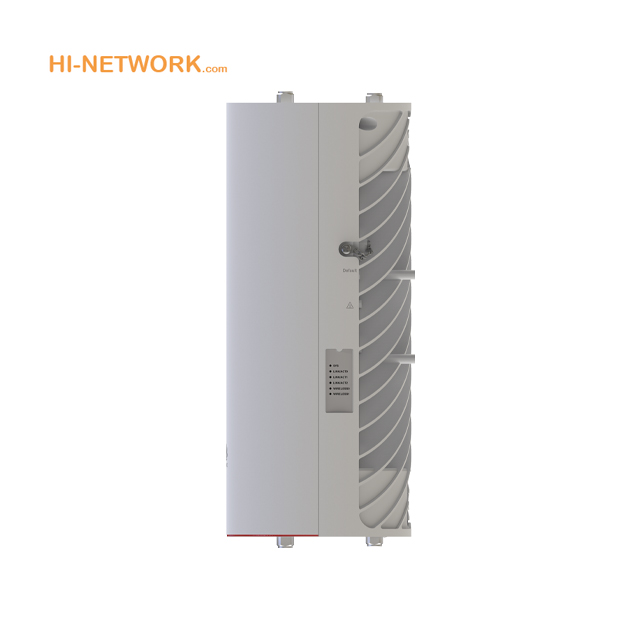

Model

AirEngine 8760R-X1E

Part Number

02353GSH 02353GSH-001

Description

AirEngine8760R-X1E (11ax outdoor, Dedicated 3rd Radio, 8+8 dual bands, external antenna, BLE, PSE)

Installation Type

Wall, Pole

Dimensions without packaging (H x W x D) [mm(in.)]

Diameter x length: 165 mm x 387 mm (6.50 in. x 15.24 in.)

Weight without packaging [kg(lb)]

4.05 kg (8.93 lb)

Storage

NAND Flash 512 MB; NOR Flash 16 MB

Console port

BLE console

Maximum power consumption [W]

53.2 (excluding PoE OUT)

Maximum heat dissipation [BTU/hour]

181.5 (without PoE OUT)

Power supply mode

PoE

Input voltage range [V]

PoE: 802.3bt

Service port surge protection

6 kA in common mode

Maximum PoE output power [W]

15.4 W

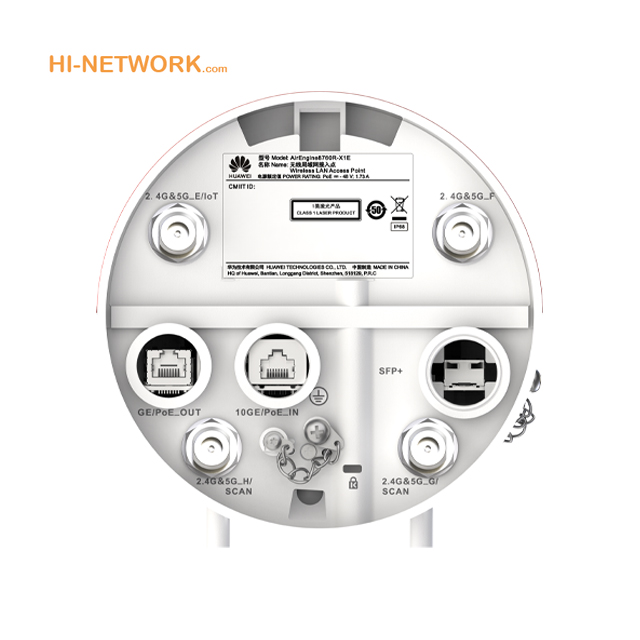

Maximum number of physical ports on the entire device

10GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing

Long-term operating temperature [°C(°F)]

–40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]

–40°C to +85°C (–40°F to +185°F)

Long-term operating relative humidity [RH]

0% RH to 100% RH

Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]

53kPa - 106kPa ETSI 300 019-2-3

Ingress protection level (dustproof/waterproof)

IP68

Ground

Grounding

Antenna port surge protection [kA]

5 kA surge protection capability without external surge protection devices

Wind resistance

67 m/s

USB

Not supported

IoT slot

Not supported

BLE

BLE5.2

Radio number

2/3

Operating frequency band

2.4GHz,5GHz

MIMO spatial streams

Dual-radio standard mode:

- Radio 0 (2.4 GHz): 8x8:4 (A maximum of four antennas connected to RF ports A through D can be used to transmit and receive 802.11b packets.)

- Radio 1 (5 GHz): 8x8:8

Triple-radio mode:

- Radio 0 (2.4 GHz): 8x8:4 (A maximum of four antennas connected to RF ports A through D can be used to transmit and receive 802.11b packets.)

- Radio 1 (5 GHz): 4x4:4

- Radio 2 (5 GHz): 4x4:4

Dual-radio + independent radio scanning mode:

- Radio 0 (2.4 GHz): 4x4:4

- Radio 1 (5 GHz): 4x4:4

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

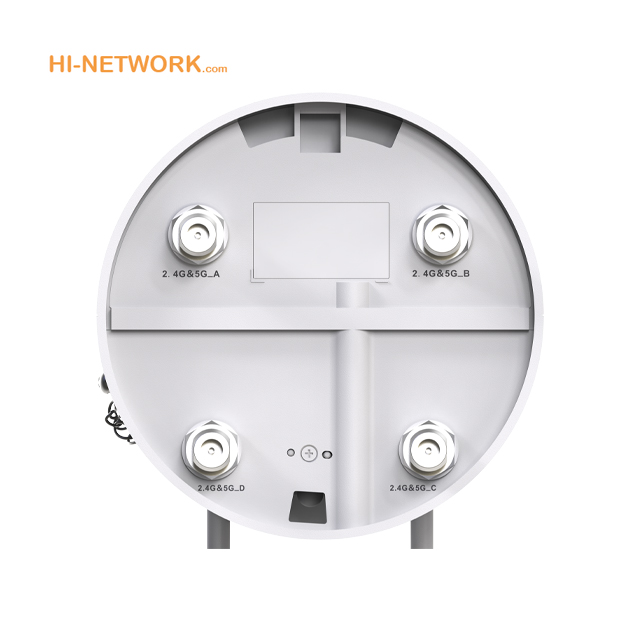

Radio interface

External antenna

Antenna gain

BLE: 5 dBi

Maximum transmit power

2.4 GHz: 33 dBm

5 GHz: 33 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 24 dBm/chain

5 GHz: 24 dBm/chain)

BLE: < 10 dBm

MTBF [year]

60.2

MTTR [hour]

0.5

Frequency stability [ppm]

+/-20

802.3bt power supply description

In 802.3bt Class 8 power supply mode:

If the PoE OUT port is not used, no function is restricted. In standard dual-radio or three-radio mode, the 2.4 GHz radio supports 8x8:4 MIMO and a maximum of 20 MHz bandwidth.

If the PoE OUT port (supporting only 802.3af) is used, the 10GE electrical port and the SFP+ optical port work as combo ports, and when one of them is working, the other is unavailable. The GE electrical port is available. Other functions are not restricted. In standard dual-radio or three-radio mode, the 2.4 GHz radio supports 8x8:4 MIMO and a maximum of 20 MHz bandwidth.

In 802.3bt Class 6 power supply mode:

If the PoE OUT port is not used:

Wi-Fi: The transmit power of radios is not affected.

- Standard dual-radio mode: 2.4 GHz (4x4) + 5 GHz (8x8)

- Dual-radio + independent scanning radio mode: 2.4 GHz (4x4) + 5 GHz (4x4) + 5 GHz independent scanning radio

- Triple-radio mode: 2.4 GHz (4x4) + 5 GHz (4x4) + 5 GHz (4x4)

Wired network port: The 10GE electrical port and the SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The GE electrical port is available.

Other ports: The PoE OUT port is not used.

If the PoE OUT port is used:

Wi-Fi: The radio power is self-adapted.

- Standard dual-radio mode: 2.4 GHz (4x4) + 5 GHz (4x4)

- Dual-radio + independent scanning radio mode: 2.4 GHz (4x4) + 5 GHz (4x4) + 5 GHz independent scanning radio

- Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz (2x2)

Wired network port: The 10GE electrical port and SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The GE electrical port is available.

Other ports: The PoE OUT port (supporting only 802.3af) is used.

802.3at power supply description

Wi-Fi: The radio power is self-adapted.

- Standard dual-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2)

- Dual-radio + independent scanning radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent scanning radio

- Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz (2x2)

Wired network port: The rate of the 10GE electrical port rate is reduced to GE or lower and works with the SFP+ optical port as combo ports. When one of them is working, the other is unavailable. The GE electrical port is not available.

Other ports: The PoE OUT port is unavailable.
