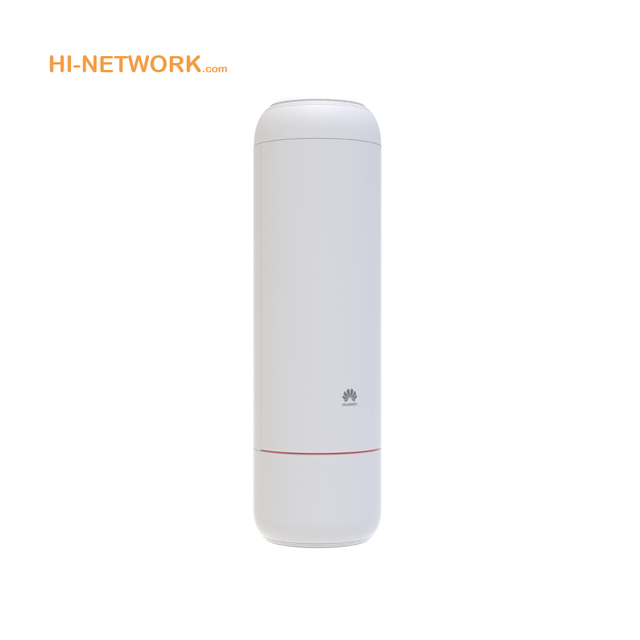

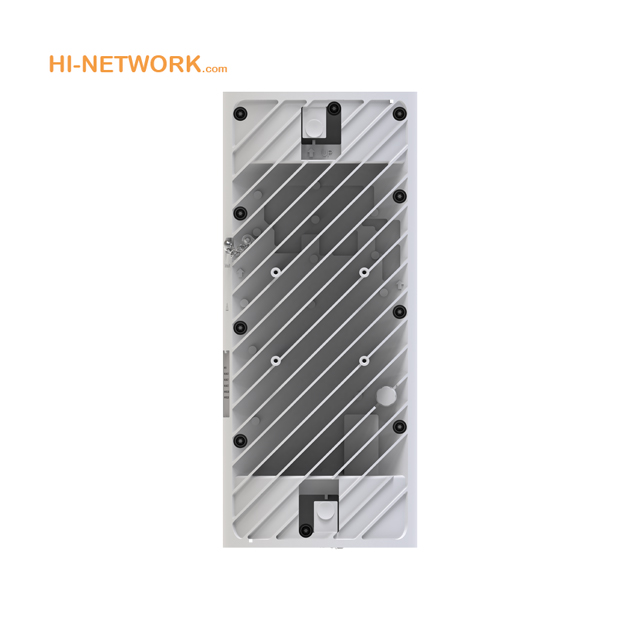

Model

AirEngine 8760R-X1

Part Number

02353GSF, 02353GSF-001

Description

AirEngine8760R-X1 (11ax outdoor, 8+8 dual bands, smart antenna, BLE, PSE)

Installation Type

Wall, Pole

Dimensions without packaging (H x W x D) [mm(in.)]

Diameter x length: 165 mm x 387 mm (6.50 in. x 15.24 in.)

Weight without packaging [kg(lb)]

4.15 kg (9.15 lb)

Storage

NAND Flash 512 MB; NOR Flash 16 MB

Console port

BLE console

Maximum power consumption [W]

53.2 (excluding PoE OUT)

Maximum heat dissipation [BTU/hour]

181.5 (without PoE OUT)

Power supply mode

PoE

Input voltage range [V]

PoE: 802.3bt

Service port surge protection

6 kA in common mode

Maximum PoE output power [W]

15.4 W

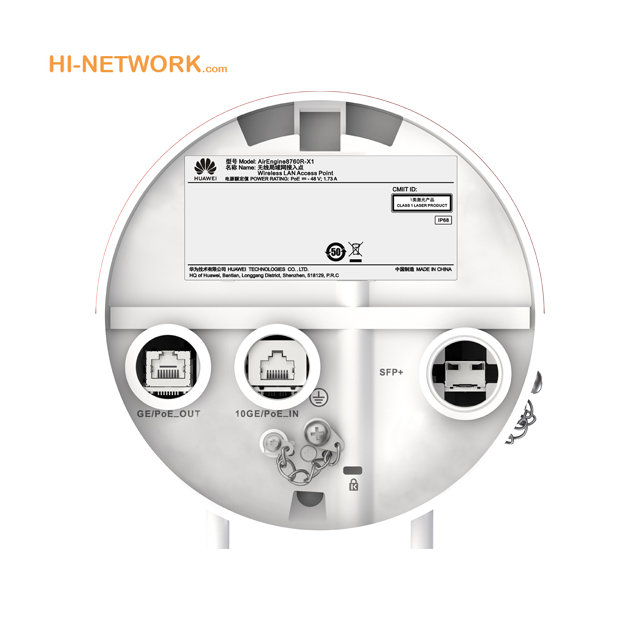

Maximum number of physical ports on the entire device

10GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing

Long-term operating temperature [°C(°F)]

–40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]

–40°C to +85°C (–40°F to +185°F)

Long-term operating relative humidity [RH]

0% RH to 100% RH

Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]

53kPa - 106kPa ETSI 300 019-2-3

Ingress protection level (dustproof/waterproof)

IP68

Ground

Grounding

Wind resistance

67 m/s

USB

Not supported

IoT slot

Not supported

BLE

BLE5.2

Radio number

2

Operating frequency band

2.4GHz,5GHz

MIMO spatial streams

Dual-radio standard mode:

- Radio 0 (2.4 GHz): 4x4:4

- Radio 1 (5 GHz): 12x12:8

Dual-radio 2G enhanced mode:

- Radio 0 (2.4 GHz): 8x8:4 (A maximum of four antennas can be used to transmit and receive 802.11b packets.)

- Radio 1 (5 GHz): 8x8:8

Dual-radio + independent radio scanning mode:

- Radio 0 (2.4 GHz): 4x4:4

- Radio 1 (5 GHz): 8x8:8

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface

Built-in directional antennas

Antenna gain

2.4G: 10 dBi

5G: 11 dBi

BLE: 5 dBi

Beamwidth of the built-in antenna [degrees]

2.4 GHz:

- Horizontal plane: 180° @ 6 dB, 70° @ 3 dB

- Vertical plane: 40°

5 GHz:

- Horizontal plane: 180° @ 6 dB, 100° @ 3 dB

- Vertical plane: 20°

Maximum transmit power

2.4 GHz: 33 dBm

5 GHz: 33 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 24 dBm/chain

5 GHz: 24 dBm/chain)

BLE: < 10 dBm

MTBF [year]

60.2

MTTR [hour]

0.5

Frequency stability [ppm]

+/-20

802.3bt power supply description

In 802.3bt Class 8 power supply mode:

If the PoE OUT port is not used, no function is restricted. In enhanced dual-radio 2G mode, the 2.4 GHz radio supports 8x8:4 MIMO and a maximum of 20 MHz bandwidth.

If the PoE OUT port (supporting only 802.3af) is used, the 10GE electrical port and the SFP+ optical port work as combo ports, and when one of them is working, the other is unavailable. The GE electrical port is available. Other functions are not restricted. In enhanced dual-radio 2G mode, the 2.4 GHz radio supports 8x8:4 MIMO and a maximum of 20 MHz bandwidth.

In 802.3bt Class 6 power supply mode:

If the PoE OUT port is not used:

Wi-Fi:

The transmit power of radios is not affected.

- Standard dual-radio mode: 2.4 GHz (4x4) + 5 GHz (12x12:8)

- Dual-radio + independent scanning radio mode: 2.4 GHz (4x4) + 5 GHz (8x8) + 5 GHz independent radio scanning

- Enhanced dual-radio 2G mode: 2.4 GHz (8x8:4) + 5 GHz (4x4). In this mode, the 2.4 GHz radio supports 8x8:4 MIMO and a maximum of 20 MHz bandwidth.

Wired network port:

The 10GE electrical port and the SFP+ optical port work as combo ports, and when one of them is working, the other is unavailable. The GE electrical port is available.

Other ports:

The PoE OUT port is not used.

If the PoE OUT port is used:

Wi-Fi:

The transmit power of radios is automatically adjusted.

- Standard dual-radio mode: 2.4 GHz (4x4) + 5 GHz (4x4)

- Dual-radio + independent scanning radio mode: 2.4 GHz (4x4) + 5 GHz (4x4) + independent radio scanning

Wired network port:

The 10GE electrical port and the SFP+ optical port are combo ports, and only one of them can be selected. The GE electrical port is available.

Other ports:

The PoE OUT port (supporting only 802.3af) is used.

802.3at power supply description

Wi-Fi:

The transmit power of radios is automatically adjusted.

- Standard dual-radio mode: 2.4 GHz (4x4) + 5 GHz (4x4)

- Dual-radio + independent scanning radio mode: 2.4 GHz (4x4) + 5 GHz (4x4) + independent radio scanning

Wired network port:

The 10GE electrical port and the SFP+ optical port are combo ports, and only one of them can be selected. The GE electrical port is available.

Other ports:

The PoE OUT port (supporting only 802.3af) is used.

802.3at power supply description

Wi-Fi:

The transmit power of radios is automatically adjusted.

- Standard dual-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2)

- Dual-radio + independent scanning radio mode: 2.4 GHz (2x2) + 5 GHz (2x2) + independent radio scanning

Wired network port:

The rate of the 10GE electrical port is reduced to GE or lower. The 10GE electrical port and the SFP+ optical port work as combo ports for each other, and when one of them is working, the other is unavailable. The GE electrical port is unavailable.

Other ports:

The PoE OUT port is unavailable.
