| Detail: | 1000BASE-BX SFP, 1310NM |
| Model: | GLC-BX-U |
| Condition: | Compatible CISCO OEM; In stock |
| Related: | GLC-BX-D Compatible CISCO BiDi SFP 1490nm-TX 1310nm-RX 10km DOM Simplex LC |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
0.2
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

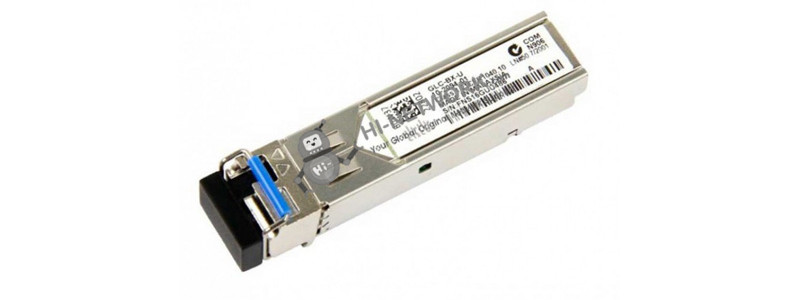

Cisco GLC-BX-U is a 1000BASE-BX SFP, 1310NM.
Cisco Compatible | GLC-BX-U |
Form Factor | SFP |
Wavelength (nm) | 1310 (TX) / 1490 (RX) nm |
Connector | Simplex LC |
Media | SMF |
Max Data Rate | 1000Mbps |
Optical Components | FP BiDi |
Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (multimode and single-mode fiber) is 6.5 feet (2 m).
Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
62.5 | 200 (OM1) | 275 (902 ft) | |||
50 | 400 (400/400) | 500 (1,640 ft) | |||
50 | 500 (OM2) | 550 (1,804 ft) | |||
50 | 2000 (OM3) | 1000 (3281 ft) | |||
1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
50 | 400 | 550 (1,804 ft) | |||
50 | 500 | 550 (1,804 ft) | |||
SMF | -** | - | 10,000 (32,821 ft) | ||
1000BASE-EX | 1310 | SMF | -** | - | 40,000 (131,234 ft) |
1000BASE-ZX | 1550 | SMF | - | - | Approximately 70 km depending on link loss |
1000BASE-BX-U | 1310 | SMF | -** | - | 10,000 (32,821 ft) |
1000BASE-BX-D | 1490 | SMF | -** | - | 10,000 (32,821 ft) |
Note:
*A mode-conditioning patch cord, as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning patch cord for 62.5-μm fibers has a different specification from the mode-conditioning patch cord for 50-μm fibers.
**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
***Specified at transmission wavelength.
Model | Description |
1000BASE-BX SFP, 1310NM | |
1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | |
1000BASE-T SFP transceiver module for Category 5 copper wire, RJ-45 connector | |
1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector | |
1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
Do you have any question about theGLC-BX-U?
Contact us now via email: [email protected]

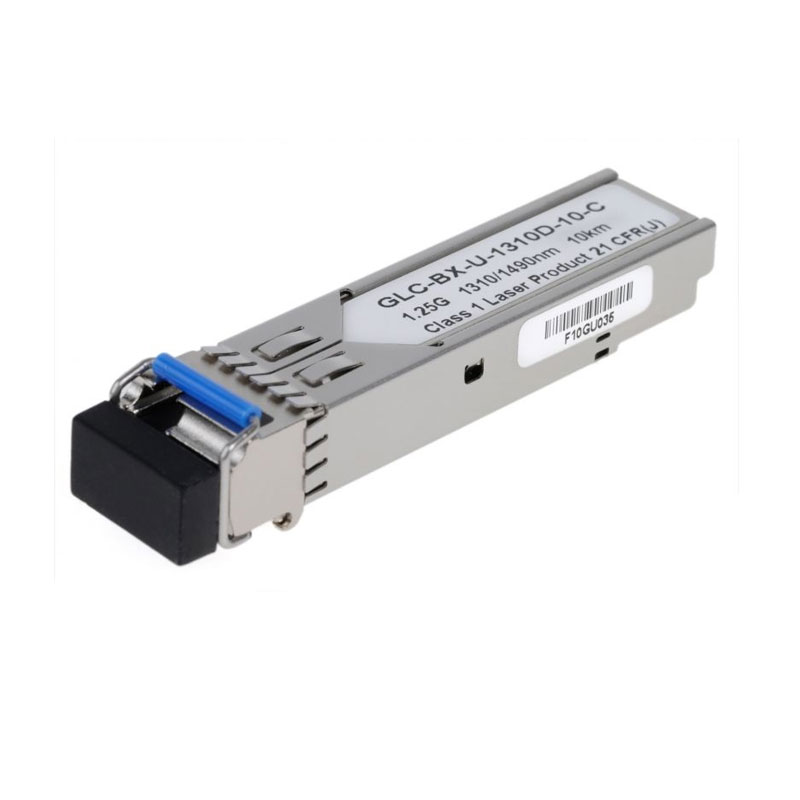

Cisco Compatible | GLC-BX-U |
Form Factor | SFP |
Wavelength | 1310nm-TX/1490nm-RX |
Connector | Simplex LC |
Media | SMF |
TX Power | -9~-3dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Vendor Name | FS |
Max Data Rate | 1000Mbps |
Max Cable Distance | 10km |
Optical Components | FP BiDi |
DOM Support | Yes |
Receiver Sensitivity | < -23dBm |
Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
