Genuine New SFP-FE-LX-SM1550-BIDI (02315202) Huawei 100BASE-BX-D BiDi SFP 1550nm-TX/1310nm-RX 15km DOM Simplex LC SMF Transceiver Module

Huawei SFP-FE-LX-SM1550-BIDI is Optical Transceiver. It’s a Multi-mode Module.

Quick Specification

Table 1 show the quick specification

Model	SFP-FE-LX-SM1550-BIDI
Part Number	02315202
Description	Optical Transceiver, eSFP, FE, BIDI Single-mode Module (TX1550/RX1310, 15km, LC)
Level-1 category	FE SFP/eSFP Optical Modules
Form factor	eSFP
Application standard	100BASE-BX
Connector type	LC
Optical fiber type	SMF
Working case temperature [°C(°F)]	0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]	100 Mbit/s
Target transmission distance [km]	Single-mode fiber: 15 km
Center wavelength [nm]	1310 nm (RX) 1550 nm (TX)
Maximum Tx optical power [dBm]	-8.0
Minimum Tx optical power [dBm]	-15.0
Minimum extinction ratio [dB]	8.5
Rx sensitivity [dBm]	-32.0
Overload power [dBm]	-8.0
Note	Supports the single-fiber bidirectional function. BIDI optical modules must be used in pairs. For example, SFP-FE-LX-SM1550-BIDI must be used with SFP-FE-LX-SM1310-BIDI.

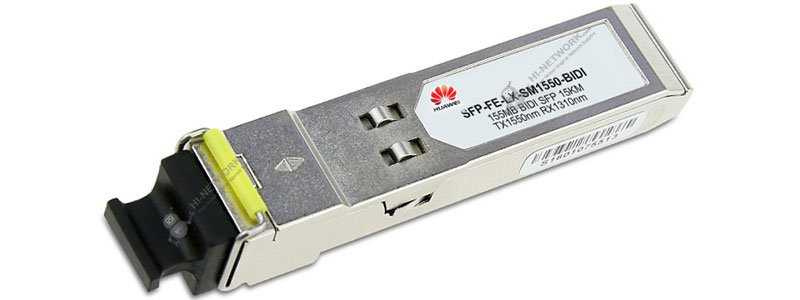

Figure 1 shows the appearance.

huawei-sfp-fe-lx-sm1550-bidi-main-datasheet

Get More Information

Do you have any question about the SFP-FE-LX-SM1550-BIDI (02315202)?

Specific Data Sheet:

SFP-FE-LX-SM1550-BIDI Specification
Basic Information
Model	SFP-FE-LX-SM1550-BIDI
Part Number	02315202
Description	Optical Transceiver, eSFP, FE, BIDI Single-mode Module (TX1550/RX1310, 15km, LC)
Level-1 category	FE SFP/eSFP Optical Modules
Technical Specifications
Connector type	LC
Optical fiber type	SMF
Form factor	eSFP
Transmission rate [bit/s]	100 Mbit/s
Target transmission distance [km]	Single-mode fiber: 15 km
Application standard	100BASE-BX
Working case temperature [°C(°F)]	0°C to 70°C (32°F to 158°F)
Center wavelength [nm]	1310 nm (RX) 1550 nm (TX)
Maximum Tx optical power [dBm]	-8.0
Minimum Tx optical power [dBm]	-15.0
Overload power [dBm]	-8.0
Minimum extinction ratio [dB]	8.5
Rx sensitivity [dBm]	-32.0
