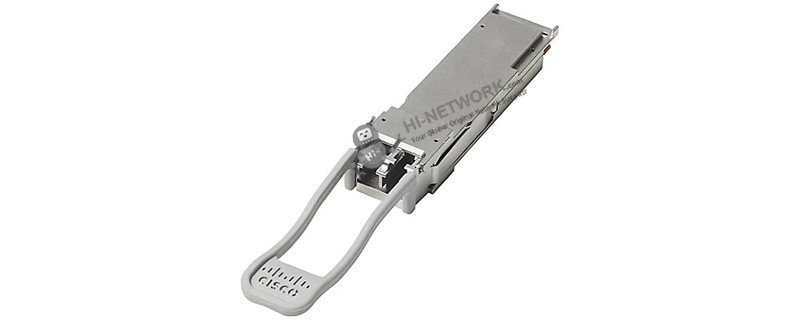

Genuine New QSFP-40G-SR-BD= Cisco 40 Gigabit Optical Modules

USD

330 ~~$1424~~ (76.8% OFF)

4.8 4.8/5.0 Reviews Q/A 10 Sold/Mon
Detail:	QSFP40G BiDi Short-reach Transceiver
Model:	QSFP-40G-SR-BD=
Condition:	Factory Sealed New Cisco; In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Genuine New Cisco QSFP-40G-SR-BD= Cisco 40 Gigabit Optical Modules

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.

Quick Specification

Product Code	QSFP-40G-SR-BD=
Description	Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF
Dimensions	13.5 x 18.4 x 72.4 mm
Wavelength (nm)	832 - 918
Cable Type	MMF
Core Size (microns)	50.0 50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)
Cable Distance	30m 100m 150m
Power Consumption (W)	3.5
Pull Tab Color	Gray

The Front Panel:

qsfp-40g-sr-bd-datasheet

Features and benefits of Cisco QSFP 40G modules:
•Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
•Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
•Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
•High-speed electrical interface compliant to the IEEE 802.3ba standard
•QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

The Accessories For QSFP-40G-SR-BD

Modules and Cables:

Product Code	QSFP-40G-BD-RX=	QSFP-40G-SR-BD=
Description	Cisco 40GBASE-SR Bi-Directional QSFP Monitor Module for Duplex MMF	Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF
Dimensions	13.5 x 18.4 x 72.4 mm	13.5 x 18.4 x 72.4 mm
Wavelength (nm)	832 - 918	832 - 918
Cable Type	MMF	MMF
Core Size (microns)	50.0 50.0 50.0	50.0 50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)	500 (OM2) 2000 (OM3) 4700 (OM4)
Cable Distance	30m 100m 150m	30m 100m 150m
Power Consumption (W)	3.5	3.5
Pull Tab Color	Beige(or Gray with “Rx” mark)	Gray

Get More Information

Do you have any question about theQSFP-40G-SR-BD?

Specific Data Sheet:

Description	Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF
Dimensions	13.5 x 18.4 x 72.4 mm
QSFP Port cabling specifications
Wavelength (nm)	832 - 918
Cable Type	MMF
Core Size (microns)	50.0 50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)
Cable Distance	30m 100m 150m
Power Consumption (W)	3.5
Pull Tab Color	Gray
Optical characteristics
Type	40GBASE-SR-BiDi, Duplex MMF
Transmit Power (dBm)	Max:+5 per lane Min:-4 per lane
Receive Power (dBm)	Max:+5.0 per lane Min:-6.0 per lane
Transmit and Receive Wavelength (nm)	832 to 918
Environmental conditions
Commercial temperature	+10 to 70°C (50 to 158°F)
Storage temperature	-40 to 85°C (-40 to 185°F)
Regulatory and standards compliance
Standards	•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6
Safety	•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant

Customer Reviews

4.7

(36 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Samburgey

Posted on 06/25/2024

Verified Buyer

4.9

A great cost-effective solution

Do you have other questions or feedback? You may write here:

What is Guaranteed.

After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.

After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.

Service Never Ends.

Hardwares Warrany Time:

Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year

After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
