Genuine New Cisco CFP-100G-LR4 1310nm 10km DOM LC SMF Transceiver Module

USD

13382 ~~$59006~~ (77% OFF)

4.5 4.5/5.0 Reviews Q/A 22 Sold/Mon
Detail:	100GBASE-LR4 CFP Module
Model:	CFP-100G-LR4
Condition:	Factory Sealed New Cisco; In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Genuine New Cisco CFP-100G-LR4 1310nm 10km DOM LC SMF Transceiver Module

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The Cisco 100GBASE CFP modules oﬀer customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications.

Quick Specification

Product Code	CFP-100G-LR4=
Description	Cisco 100GBASE-LR4 CFP Module for SMF (<10 km)
Dimensions	144.8 x 82 x 13.6 mm
Wavelength (nm)	1310 band (LAN-WDM)
Fiber Type	SMF
Core Size (microns)	G.652
Modal Bandwidth (MHz-km)	\
Max Distance	10 km
Digital Optical Monitoring (DOM)	Yes

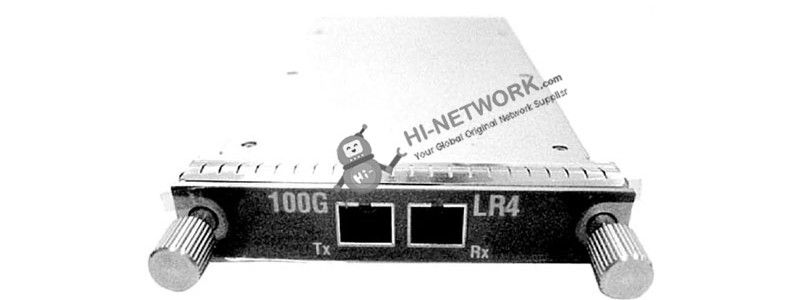

The Front Panel:

cfp-100g-lr4=-datasheet

Cisco 100GBASE CFP Modules provide these highlights:
•Supports 100GBASE Ethernet
•Hot-swappable input-output device that plugs into an Ethernet CFP port of a Cisco switch or router
•Provides flexibility of interface choice
•Supports “pay-as-you-populate” model
•Supports digital optical monitoring (DOM)
•Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco

Compare to Similar Items

Parameters	CFP-100G-ER4=	CFP-100G-LR4=	CFP-100G-SR10=
Description	Cisco 100GBASE-ER4 CFP Module for SMF (<40 km)	Cisco 100GBASE-LR4 CFP Module for SMF (<40 km)	Cisco 100GBASE-SR10 CFP Module for MMF (<40 km)
Dimensions	144.8 x 82 x 13.6 mm	144.8 x 82 x 13.6 mm	144.8 x 82 x 13.6 mm
Wavelength (nm)	1310 band (LAN-WDM)	1310 band (LAN-WDM)	850
Fiber Type	SMF	SMF	MMF
Core Size (microns)	G.652	G.652	50 50
Modal Bandwidth (MHz-km)	\	\	2000 (OM3) 4700 (OM4)
Max Distance	40 km	10 km	100 m 150 m
Digital Optical Monitoring (DOM)	Yes	Yes	NO

Get More Information

Do you have any question about the CFP-100G-LR4?

Specific Data Sheet:

Description	Cisco 100GBASE-ER4 CFP Module for SMF (<10 km)
Dimensions	144.8 x 82 x 13.6 mm
Wavelength (nm)	1310 band (LAN-WDM)
Fiber Type	SMF
Core Size (microns)	G.652
Modal Bandwidth (MHz-km)	\
Max Distance	10 km
Digital Optical Monitoring (DOM)	Yes
Average Transmit Power (dBm)	Max:4.5 per lane Min:-4.3 per lane
Average Receive Power (dBm)	Max:4.5 per lane Min:-10.6 per lane
Transmit and Receive Wavelength	Four lanes, 1295.6 nm, 1300.1 nm, 1304.6 nm, and 1309.1 nm
Environmental Conditions and Power Requirements
Operating temperature	32 and 158°F (0 to 70°C)
Storage temperature	-40 to 185° F (-40 to 85° C)
Maximum power consumption	24 W
