CFP-100G-ER4
  • CFP-100G-ER4

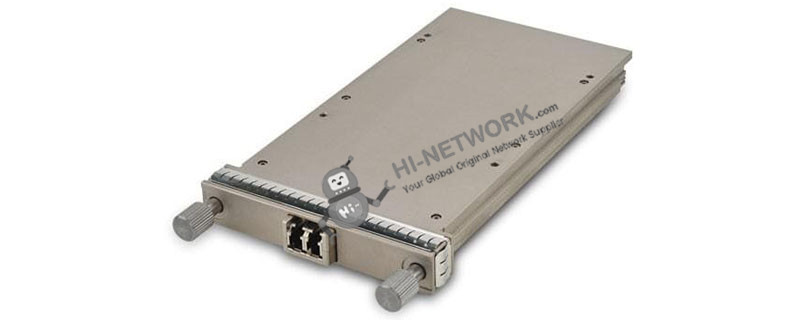

Genuine New Cisco CFP-100G-ER4 1310nm 40km DOM LC SMF Transceiver Module

34914 $147515 (76% OFF)
5
5/5.0
Q/A
25 Sold/Mon
Detail: 100GBASE-ER4 CFP Module
Model: CFP-100G-ER4
Condition: Factory Sealed New Cisco; In Stock
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.2
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Genuine New Cisco CFP-100G-ER4 1310nm 40km DOM LC SMF Transceiver Module


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


The Cisco 100GBASE CFP modules offer customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications.


Quick Specification


Product Code

CFP-100G-ER4=

Description

Cisco 100GBASE-ER4 CFP Module for SMF (<40 km)

Dimensions

144.8 x 82 x 13.6 mm

Wavelength (nm)

1310 band (LAN-WDM)

Fiber Type

SMF

Core Size (microns)

G.652

Modal Bandwidth (MHz-km)

\

Max Distance

40 km

Digital Optical Monitoring (DOM)

Yes


The Front Panel:

cfp-100g-er4=-datasheet


Cisco 100GBASE CFP Modules provide these highlights:
•Supports 100GBASE Ethernet
•Hot-swappable input-output device that plugs into an Ethernet CFP port of a Cisco switch or router
•Provides flexibility of interface choice
•Supports “pay-as-you-populate” model
•Supports digital optical monitoring (DOM)
•Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco


Compare to Similar Items


Parameters

CFP-100G-ER4=

CFP-100G-LR4=

CFP-100G-SR10=

Description

Cisco 100GBASE-ER4 CFP Module for SMF (<40 km)

Cisco 100GBASE-LR4 CFP Module for SMF (<40 km)

Cisco 100GBASE-SR10 CFP Module for MMF (<40 km)

Dimensions

144.8 x 82 x 13.6 mm

144.8 x 82 x 13.6 mm

144.8 x 82 x 13.6 mm

Wavelength (nm)

1310 band (LAN-WDM)

1310 band (LAN-WDM)

850

Fiber Type

SMF

SMF

MMF

Core Size (microns)

G.652

G.652

50

50

Modal Bandwidth (MHz-km)

\

\

2000 (OM3)

4700 (OM4)

Max Distance

40 km

10 km

100 m

150 m

Digital Optical Monitoring (DOM)

Yes

Yes

NO


Get More Information


Do you have any question about the CFP-100G-ER4?

Contact us now via  [email protected]

Specific Data Sheet:


Description

Cisco 100GBASE-ER4 CFP Module for SMF (<40 km)

Dimensions

144.8 x 82 x 13.6 mm

Wavelength (nm)

1310 band (LAN-WDM)

Fiber Type

SMF

Core Size (microns)

G.652

Modal Bandwidth (MHz-km)

\

Max Distance

40 km

Digital Optical Monitoring (DOM)

Yes

Average Transmit Power (dBm)

Max:2.9 per lane

Min:-2.9 per lane

Average Receive Power (dBm)

Max:4.5 per lane

Min:-20.9 per lane

Transmit and Receive Wavelength

Four lanes, 1295.6 nm, 1300.1 nm, 1304.6 nm, and 1309.1 nm

Environmental Conditions and Power Requirements

Operating temperature

32 and 158°F (0 to 70°C)

Storage temperature

-40 to 185° F (-40 to 85° C)

Maximum power consumption

24 W
