Fiberhome HG6201M GPON ONU 1GE 3FE USB 1POTS 2.4G Wi-Fi

USD

5 5/5.0 Reviews Q/A 25 Sold/Mon
Detail:	Fiberhome HG6201M ONU, GPON Terminal with 1GE+3FE+USB+1POTS+2.4G Wi-Fi
Model:	HG6201M
Condition:	Factory Sealed New
Related:
Warranty:	1-Year Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 1	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Fiberhome HG6201M GPON ONU 1GE 3FE USB 1POTS 2.4G Wi-Fi

HG6201M ONU gives GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access. Fiberhome HG6201M ONU is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber build an intelligent home network.

Quick Specification

Table 1 shows the Quick Specification.

Model	HG6201M
Description	Fiberhome HG6201M ONU, GPON Terminal with 1GE+3FE+USB+1POTS+2.4G Wi-Fi
Dimensions (H x W x D)	22153 cm
Weight	0.45kgs
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11–14 V DC, 0.5 A
Static Power Consumption	7.5 W
Maximum Power Consumption	18 W
Ports	1GE+3FE+1POT1USB+Wi-Fi
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV

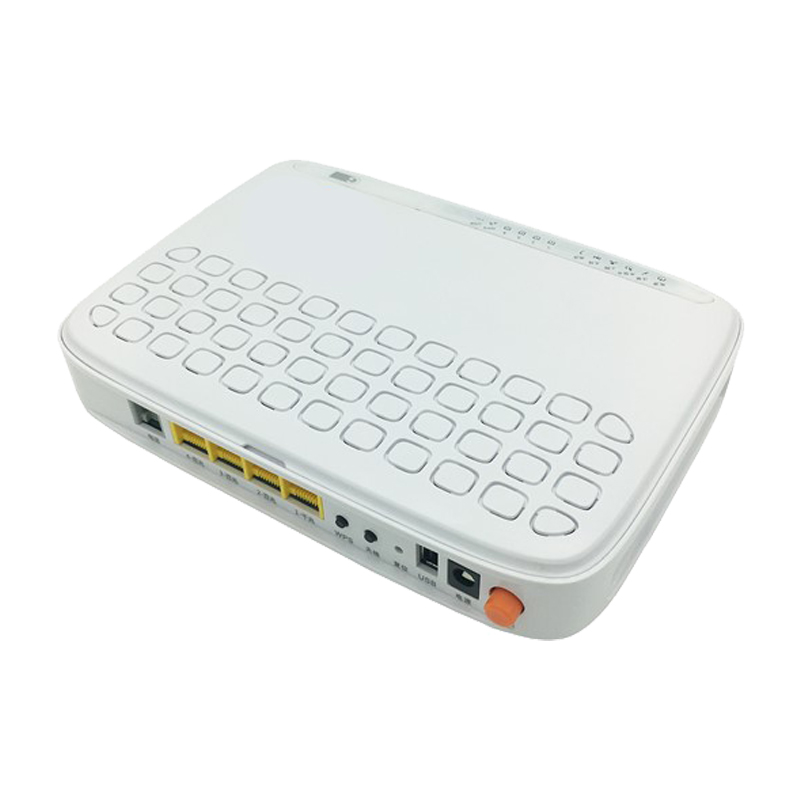

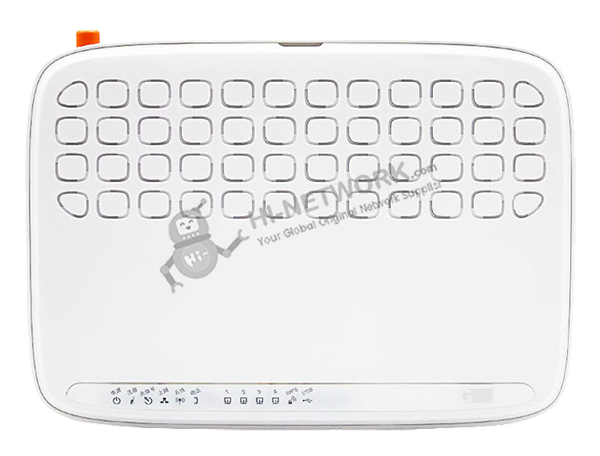

Figure 1 shows the appearance of HG6201M.

front-hg6201m-datasheet

Product Details

Features

● Provide large-capacity GPON transmission bandwidth: supports 2.5 Gbit/s for the downlink rate and 1.25 Gbit/s for the uplink rate.

● Support the DBA (Dynamic Bandwidth Allocation) algorithm.

● Support long-haul transmission. The maximum transmission distance can reach 20 km. 104

● Provides Wi-Fi wireless access based on IEEE 802.11 a/b/g/n/ac to set up safe and reliable wireless network for users.

● Compatible with IEEE 802.11 a/b/g/n/ac and passed Wi-Fi Alliance authentication, with good compatibility with other WLAN devices.

● Support eight SSIDs (four SSIDs for the 2.4 GHz band and another four SSIDs for the 5 GHz band) so that users can set different wireless networks as needed.

● Support multiple authentications and encryption modes to provide users with safe and reliable wireless access mode.

Get More Information

Do you have any questions about the HG6201M?

Specific Data Sheet:

HG6201M Specification
Description	Fiberhome HG6201M ONU, GPON Terminal with 1GE+3FE+USB+1POTS+2.4G Wi-Fi
Dimensions (H x W x D)	22153 cm
Weight	0.45kgs
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11–14 V DC, 0.5 A
Static Power Consumption	7.5 W
Maximum Power Consumption	18 W
Ports	1GE+3FE+1POT1USB+Wi-Fi
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV
Description	Fiberhome HG6201M ONU, GPON Terminal with 1GE+3FE+USB+1POTS+2.4G Wi-Fi
