Fiberhome HG268XF GPON ONU 4GE 2POTS 1CATV 2USB 2.4G&5G Wi-Fi

HG268XF FTTH is a smart gateway device for Gigabit fiber smart home solution for China Mobile. It provides 1 POTS, 4 GE/FE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz). Flexible, supporting plug and play, remote diagnosis, green energy saving and other features. HG268XF supports GPON and EPON technologies to achieve ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees the service experience of voice, data and high-definition video, and provides ideal terminal solutions and future-oriented business support capabilities for FTTH deployment.

Quick Specification

Table 1 shows the Quick Specification.

Model	HG268XF
Description	Fiberhome HG268XF ONU, GPON Terminal with 4GE+2POTS+1CATV+2USB+2.4G&5G Wi-Fi 5dbi antenna
Dimensions (H x W x D)	220 mm x 160 mm x 32 mm
Weight	< 1000 g
Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50–60 Hz
System power supply	11–14 V DC, 0.5 A
Static power consumption	7.5 W
Maximum power consumption	18 W

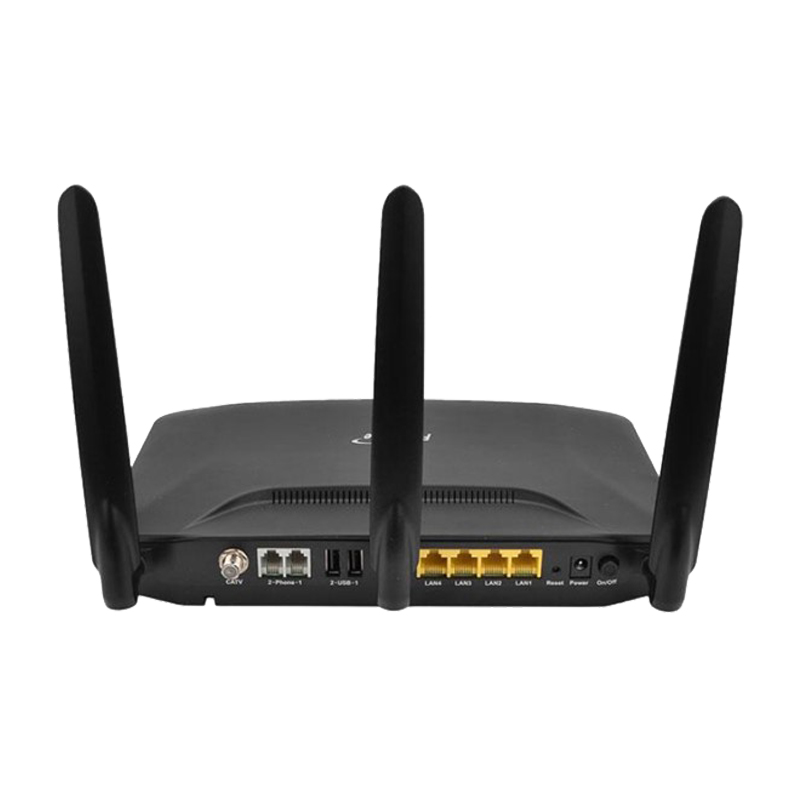

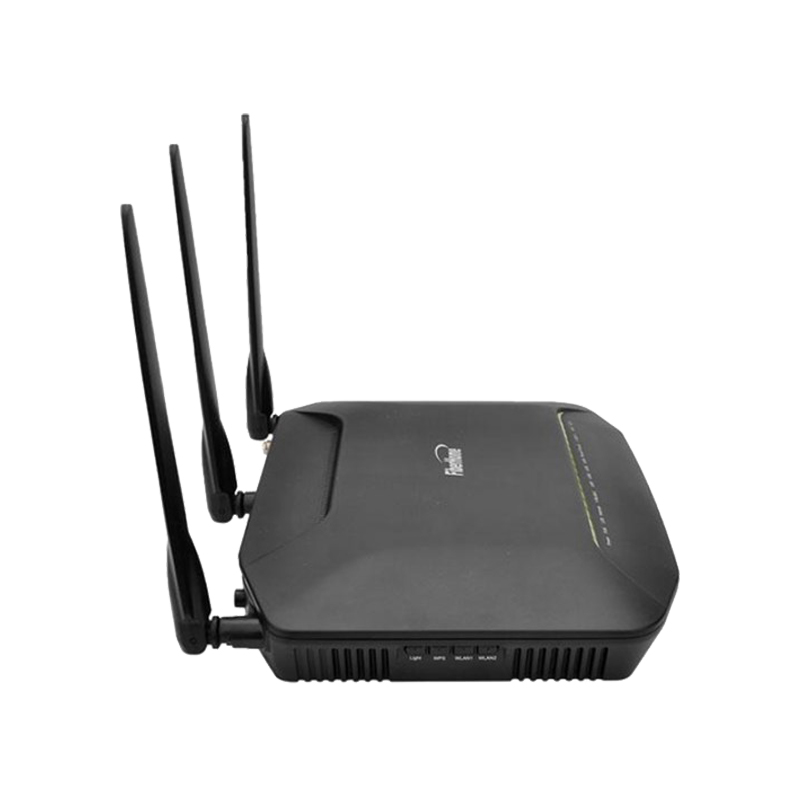

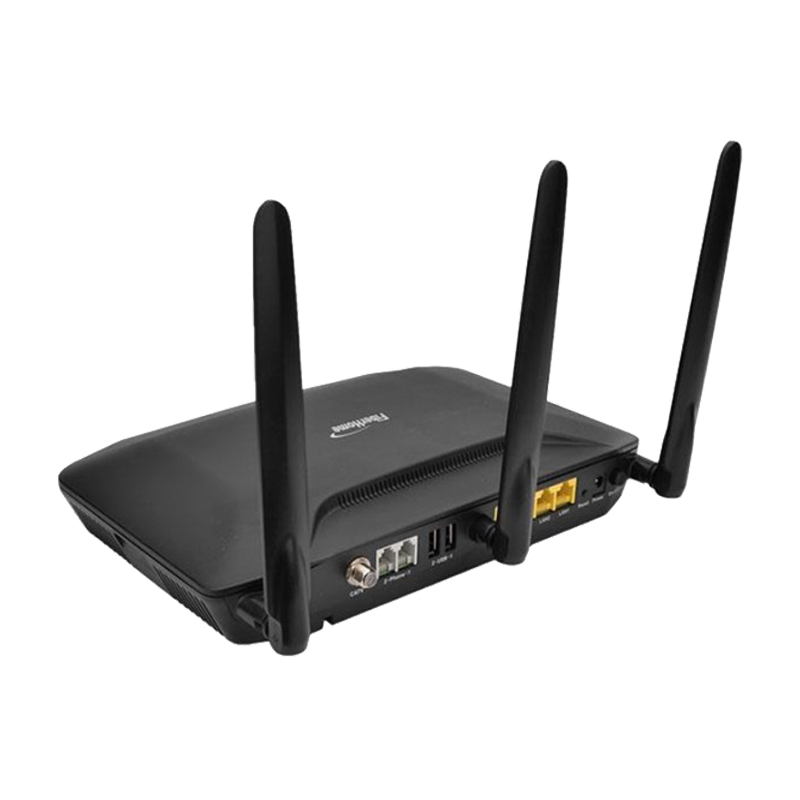

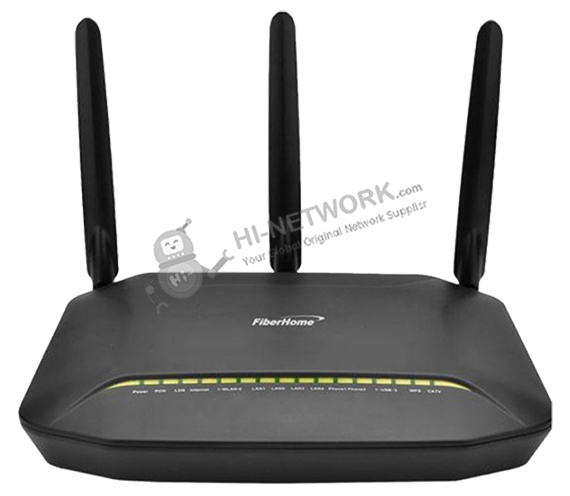

Figure 1 shows the appearance of HG268XF.

front-hg268xf-datasheet

Product Details

Features

● Strong service access capability

Fiberhome HG268XF ONU equipment adopts single-fiber wavelength division multiplexing, the downstream signal wavelength is 1490nm, upstream signal wavelength is 1310nm, and CATV signal wavelength is 1550nm. Only one optical fiber can transmit broadband digital services and CATV services at the same time, and the maximum transmission distance can reach 20 kilometers.

● Rich business interface

Fiberhome HG268XF ONU provides broadband digital service access and CATV service access, providing users with one EPON optical interface for connecting to OLT; providing 1 to 4 user Ethernet interfaces for connecting user PCs to achieve broadband digital service access Input; provides a CATV interface for connecting cable TV set-top boxes or TV sets to achieve CATV signal access; provides a CONSOLE network management interface for connecting to the network management PC.

● Powerful Ethernet business function

Fiberhome HG268XF ONU adopts the most advanced technology in the industry, has powerful functions and QoS guarantee on the Ethernet business, and supports SLA and DBA. The dynamic bandwidth allocation mechanism allows all users to share the bandwidth of 1Gbps more reasonably, achieve reliable quality of service (QoS), and ensure the service quality of different services in the same network. Support IGMP multicast, effective use of broadband. Support port isolation, multicast VLAN.

● Rich OAM function design

Fiberhome HG268XF ONU includes configuration, alarm, performance monitoring, fault isolation and security management, etc., both provide remote.

Get More Information

Do you have any questions about the HG268XF?

Specific Data Sheet:

HG268XF Specification
Description	Fiberhome HG268XF ONU, GPON Terminal with 4GE+2POTS+1CATV+2USB+2.4G&5G Wi-Fi 5dbi antenna
Dimensions (H x W x D) (mm)	220 mm x 160 mm x 32 mm
Weight	< 1000 g
Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50–60 Hz
System power supply	11–14 V DC, 0.5 A
Static power consumption	7.5 W
Maximum power consumption	18 W
