Fiberhome AN5506-04-F GPON ONU 4FE LAN 2 Voice Ports WiFi SIP Protocol

AN5506-04-F is an FTTH GPON optical network unit, providing four GE Ethernet interfaces, two phone interfaces, and wi-fi access. It can provide communication and entertainment service in multiple modes such as data, voice, and video, to meet integrated access requirement of families or small enterprises.

Quick Specification

Table 1 shows the Quick Specification.

Model	AN5506-04-F
Description	Fiberhome AN5506-04-F ONU, 4FE LAN+2 voice ports + Wi-Fi and SIP protocol
Other Interfaces	4x 10/100/1000 Base-T, 2 x POTS, Wi-Fi (2.4 GHz, 802.11b/g/n, WPA/WPA2, WPS), 1 x USB
Operation Modes	Bridge, Router, AP
Power Consumption	7 W
Dimensions	180 mm x 38 mm x 127 mm
Working Temperature	0°C – 40°C
Humidity	5% – 95%
Power	12 V DC

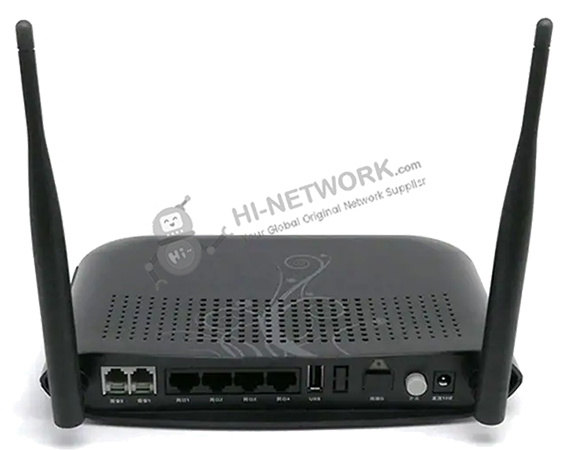

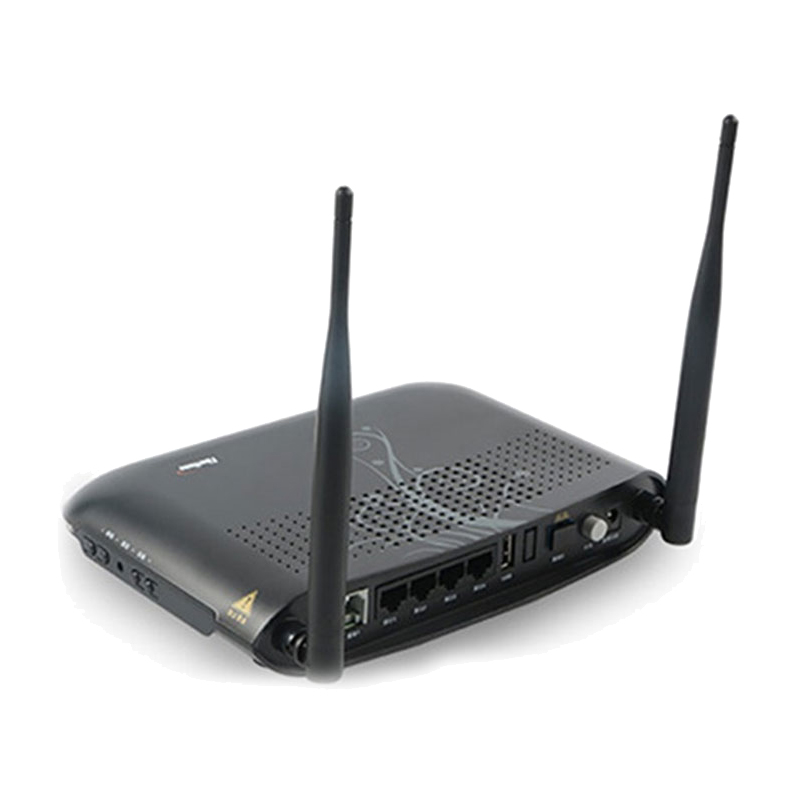

Figure 1 shows the appearance of AN5506-04-F.

front-an5506-04-f-datasheet

Product Details

Key Features

● Easy for home broadband, e-government and office access with integrated access demands of broadband/voice/ data/video etc.

● Various connection with multiple types of UNIs: GE/FE, POTS, Wi-Fi, CATV. The outdoor type of ONT with cast-aluminums shell adopts an industrial design.

● Support user-friendly GUI with plug-in and play function instead of field configuration.

● Provide a complete series of FTTH solutions for pure data, a double play, and triple-play services. Both in&outdoor types can be applied to meet the different application environment.

● High-efficiency management and maintenance with port-based mode configuration as well as a port-based status query.

● Carrier-class reliability in hardware/software and other system design to fully assure normal operation of equipment.

Get More Information

Do you have any questions about the AN5506-04-F?

Specific Data Sheet:

AN5506-04-FSpecification
Description	Fiberhome AN5506-04-F ONU, 4FE LAN+2 voice ports + Wi-Fi and SIP protocol
GPON Interface	1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Other Interfaces	4x 10/100/1000 Base-T, 2 x POTS, Wi-Fi (2.4 GHz, 802.11b/g/n, WPA/WPA2, WPS), 1 x USB
Operation Modes	Bridge, Router, AP
Wavelength for downstream	1480 nm – 1500 nm
Wavelength for upstream	1290 nm – 1330 nm
Sensitivity	-28 dBm
Power Consumption	7 W
Dimensions	180 mm x 38 mm x 127 mm
Working Temperature	0°C – 40°C
Humidity	5% – 95%
Power	12 V DC
GPON Features	8x T-CONT, 32 GEM port
Support	VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management	Local (WEB), OMCI, TR069
