Fiberhome AN5506-02-A GPON ONU 2 GE

The AN5506-02-A is an FTTH GPON ONU. It provides users with communication and entertainment services in the form of data, video, and so on, to meet the integrated access demand of families and small-scaled enterprises.

Quick Specification

Table 1 shows the Quick Specification.

Model	AN5506-02-A
Description	Fiberhome AN5506-02-A ONU, GPON Terminal with 2 GE
Dimensions (H x W x D)	25.5mm × 112mm × 112mm
Wall Mounting Hole Distance	75mm
Weight	About 138g
Power Supply Parameters	DC 12 V/0.5 A
Power Consumption Parameters	＜4W
Operating Temperature	-5℃ to 45℃
Storage Temperature	-40℃ to 70℃
Environmental Humidity	10% to 95% (no condensation)

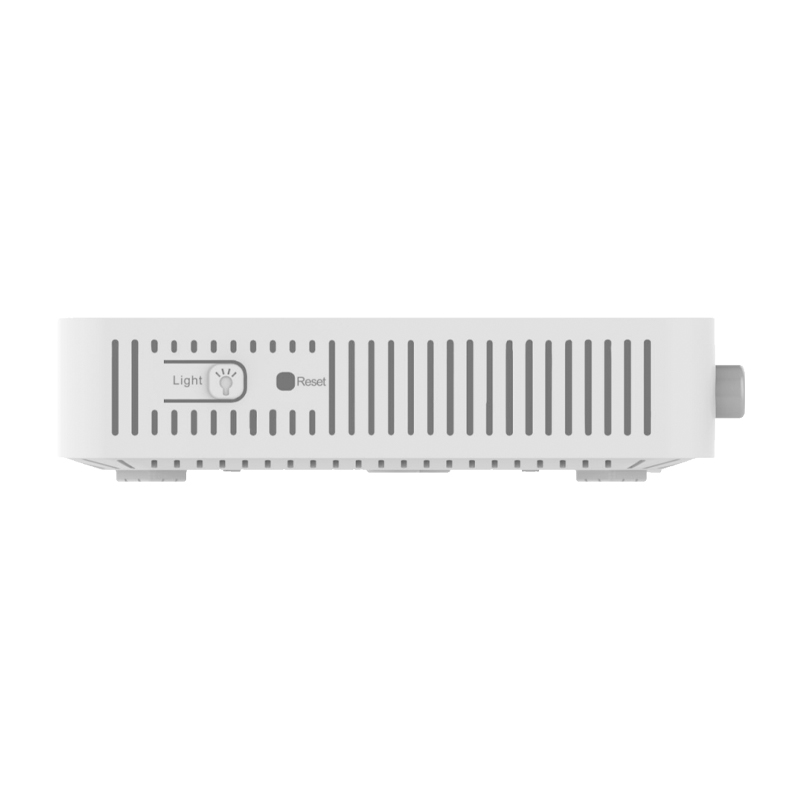

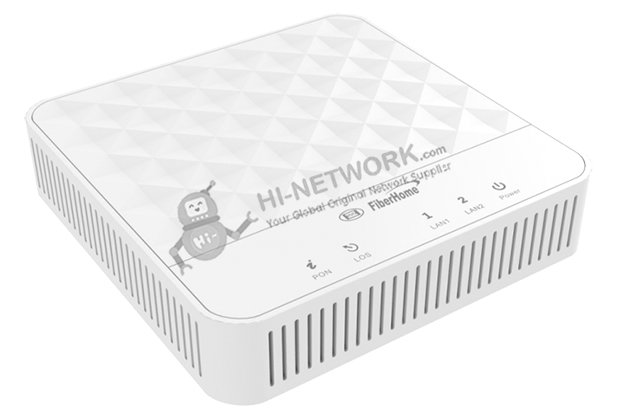

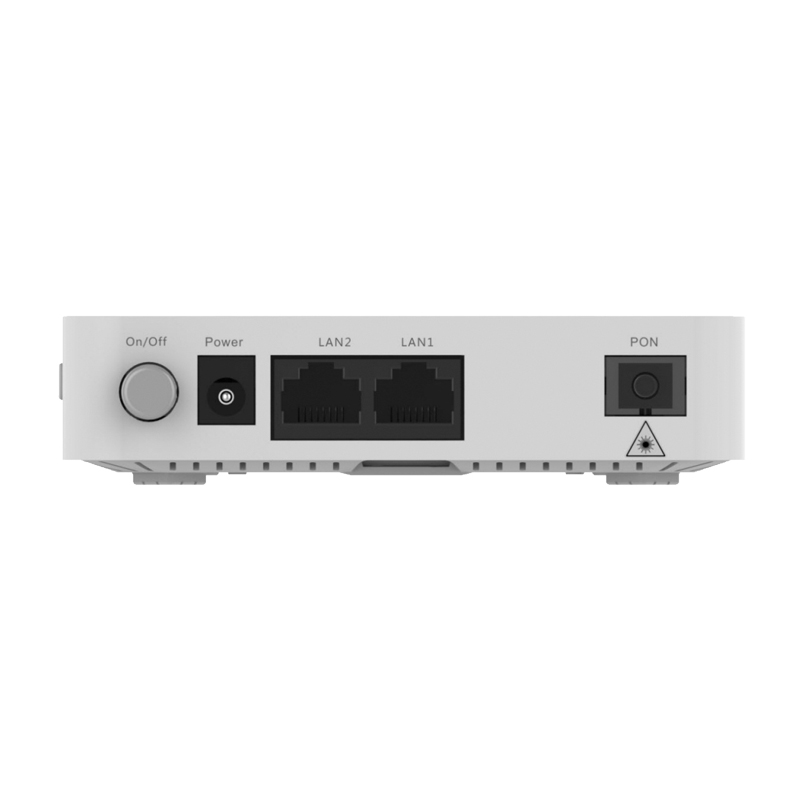

Figure 1 shows the appearance of AN5506-02-A.

front-an5506-02-a-datasheet

Product Details

Table 2 shows the Technical Parameters of the AN5506-02-A.

Service parameters	VLAN	Supports the IEEE 802.1Q VLAN standard. Supports joining the 802.1Q VLAN in the tag / untag mode. Supports up to 4095 VLANs.
	Multicast	Supports the IGMP Snooping protocol. Supports IGMP v1/v2/v3.
	Wire-speed forwarding	Supports Layer 2 / Layer 3 wire-speed forwarding.
	IP	Supports the IPv4/v6 dual stack.
	Security	Supports the packet filtering, MAC address filtering and URL filtering. Supports protection against illegal message (DoS, ARP) attacks; supports suppression of broadcast storms. Supports obtaining the user IP address in the DHCP mode; supports reporting physical location of the Ethernet interface using DHCP Option82. Supports obtaining the user IP address in the PPPoE mode; supports the PPPoE+ function, used to identify users accurately. Supports encryption of downlink data using the AES-128 algorithm.
	QoS	Supports the ACL function to match traffic based on the ACL rules. Supports global configuration of queue priority and flexible mapping of 802.1p values in packets. Supports three queue scheduling modes (PQ, WRR and PQ+WRR); supports configuring the weight of the scheduled queue, so as to guarantee the service quality of high-QoS services such as video in the multi-service environment
Network side interface	GPON interface	Provides one GPON interface (SC/UPC or SC/APC interface), supporting transmission distance up to 20km and complying with the ITU-T G.984 standard. Supports Class B+, with receiving sensitivity less than -29 dBm.
User side interface	LAN interface	Provides two LAN interfaces (RJ-45 interfaces), supporting full-duplex or half duplex and 10 / 100 / 1000 Mbit/s auto negotiation. The maximum transmission distance is 100 m. MAC address capacity: 1K

Table 3 shows the description of indicator LEDs on the AN5506-02-A.

Indicator LED	Meaning	Color	Status	Status Description
PON	Register status indicator LED	Green	ON	The ONU is activated.
			Blinking	The ONU is being activated.
			OFF	The ONU is not activated.
LOS	Optical signal status indicator LED	Red	Blinking	The ONU has not received the optical signal.
			OFF	The ONU has received the optical signal.
Ethernet port	Ethernet interface status indicator LED	Green	ON	The interface is connected to the user terminal and no data are transmitted.
			Blinking	The interface is transmitting / receiving data.
			OFF	The interface is not connected to the user terminal.
Power	Power status indicator LED	Green	ON	The ONU is powered on.
			OFF	The ONU is not powered on.

Get More Information

Do you have any questions about the AN5506-02-A?

Specific Data Sheet:

AN5506-02-A Specification
Description	Fiberhome AN5506-02-A ONU, GPON Terminal with 2 GE
Dimensions (H x W x D)	25.5mm × 112mm × 112mm
Wall Mounting Hole Distance	75mm
Weight	About 138g
Power Supply Parameters	DC 12 V/0.5 A
Power Consumption Parameters	＜4W
Operating Temperature	-5℃ to 45℃
Storage Temperature	-40℃ to 70℃
Environmental Humidity	10% to 95% (no condensation)
Description	Fiberhome AN5506-02-A ONU, GPON Terminal with 2 GE
Dimensions (H x W x D)	25.5mm × 112mm × 112mm
