Cisco WS-C3560C-8PC-S 8 FE PoE 2 x Dual Uplink IP Base Switch

USD

725 ~~$1600~~ (54.7% OFF)

5 5/5.0 Reviews Q/A 7 Sold/Mon
Detail:	Catalyst 3560C Switch 8 FE PoE, 2 x Dual Uplink, IP Base
Model:	WS-C3560C-8PC-S
Condition:	New
Related:
Warranty:	3-Year Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 13.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Cisco WS-C3560C-8PC-S 8 FE PoE 2 x Dual Uplink IP Base Switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco Catalyst 3560C-8PC switch is an ideal access layer switch for small enterprise LAN access or branch-office environments. It supports IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations.

Quick Specification

Table 1 shows the quick specification.

Model	WS-C3560C-8PC-S
Feature Set	IP Base
Uplink Interfaces	2 x 1G copper or 2 x 1G SFP
Ports	8 x 10/100 Fast Ethernet
PoE Output Ports	8 PoE+
Available PoE Power	124W
Powering Options	Internal Power Supply
Forwarding Bandwidth	10 Gbps
RAM	128 MB
Flash Memory	64 MB
Dimensions	4.44cm x 26.9cm x 21.3cm
Package Weight	5 Kg

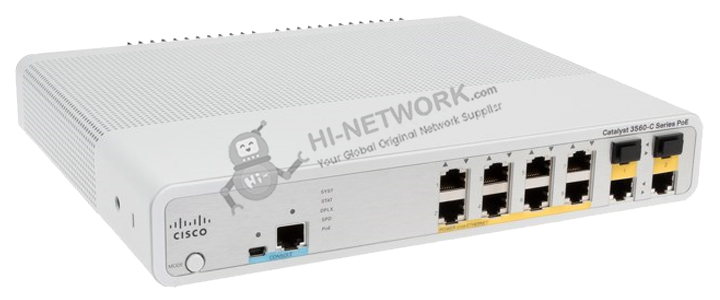

Figure 1 shows the appearance of the WS-C3560C-8PC-S.

front-ws-c3560c-8pc-s-datasheet

Product Details

Figure 2 shows the front panel of WS-C3560C-8PC-S.

front-panel-ws-c3560c-8pc-s-datasheet

Note:

(1)	Mode button	(4)	LEDs
(2)	USB mini-Type B (console) port	(5)	10/100 PoE+ ports
(3)	RJ-45 console port	(6)	Uplink ports

● The LEDs include SYST, STAT, DPLX, SPD and PoE LED.

● Depending upon the available PoE budget, WS-C3560C-8PC-S can power other PoE-capable devices such as IP phones, access points, and so on.

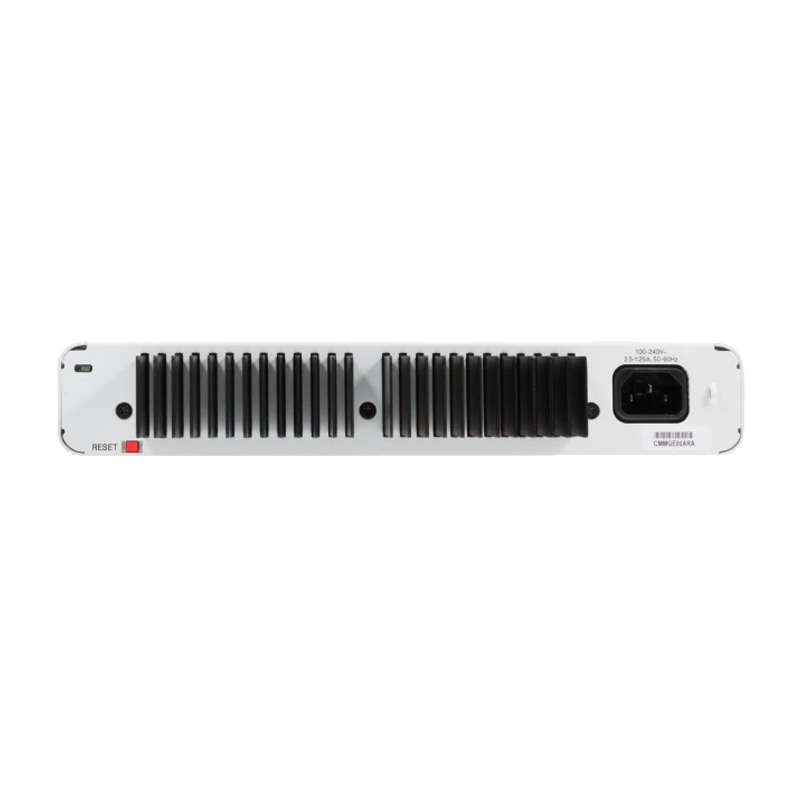

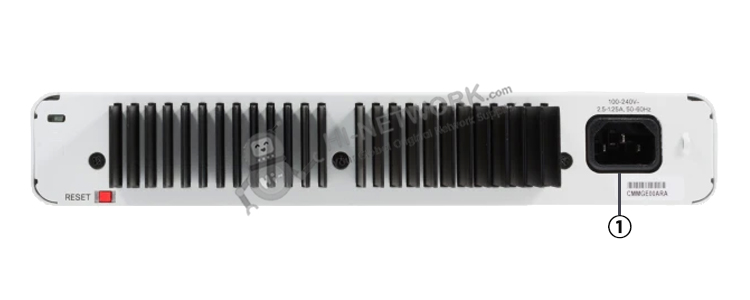

Figure 3 shows the back panel of WS-C3560C-8PC-S.

back-panel-ws-c3560c-8pc-s-datasheet

Note:

(1)	AC Power Connector

● WS-C3560C-8PC-S can be powered through the internal power supply. The internal power supply is an autoranging unit that supports input voltages between 100 and 240 VAC. Plug the AC power cord into the AC power connector and into an AC power outlet.

The Accessories

Table 2 shows some recommended cables and SFP modules.

Model	Description
CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
GLC-SX-MM	GLC-SX-MM GE SFP, LC connector SX transceiver
GLC-ZX-SM	1000BASE-ZX SFP
GLC-BX-D	1000BASE-BX SFP, 1490NM
GLC-BX-U	1000BASE-BX SFP, 1310NM
GLC-FE-100FX	100BASE-FX SFP for FE port
GLC-FE-100LX	100BASE-LX SFP for FE port
GLC-FE-100BX-D	100BASE-BX10-D SFP
GLC-FE-100BX-U	100BASE-BX10-U SFP

Compare to Similar Items

Table 3 shows the comparison of similar items.

Model	WS-C3560C-8PC-S	WS-C3560CG-8PC-S
Uplinks	2 x 1G copper or 2 x 1G SFP	2 x 1G copper or 2 x 1G SFP
Ports	8 x 10/100 Fast Ethernet	8 x 10/100/1000 Gigabit Ethernet
Feature set	IP Base	IP Base
Available PoE Power	124W	124W

Get More Information

Do you have any questions about the WS-C3560C-8PC-S?

Specific Data Sheet:

WS-C3560C-8PC-S Datasheet
General Information
Manufacturer:	Cisco
Product ID:	WS-C3560-8PC-S
Product Description:	Catalyst 3560 Compact 8 10/100 PoE + 2 T/SFP; IP Base Image
Product Type:	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:	9
Number of Network (RJ-45) Ports:	9
Media & Performance
Ethernet Technology:	Fast Ethernet
Network Technology:	10/100/1000Base-T 10/100Base-TX
I/O Expansions
Number of Total Expansion Slots:	1
Expansion Slot Type:	SFP
Shared SFP Slot:	Yes
Number of SFP Slots:	1
Network & Communication
Layer Supported:	2
Miscellaneous
Additional Information:	IP Base license (formerly SMI) installed IEEE 802.3af and Cisco prestandard Power over Ethernet Basic RIP and static routing, upgradable to full dynamic IP routing Enterprise-class intelligent services delivered to the network edge
