| Detail: | Catalyst 2960S 48 GigE, 4 x SFP LAN Base |
| Model: | WS-C2960S-48TS-L |
| Condition: | New |
| Related: | |
| Warranty: |
3-Year Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
10.7
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
Cisco Catalyst 2960-S Series Switches WS-C2960S-48TS-L is a model, designed for enterprise, midmarket, and branch office networks equally. It has 48 RJ-45 10/100/1000Base-T Network LAN ports and provides LAN Base feature set.
Model | WS-C2960S-48TS-L |
Enclosure Type | Rack-mountable - 1U |
Feature Set | LAN Base |
Uplink Interfaces | Four 1G Small Form-Factor Pluggable (SFP) |
Downlink Ports | 48 × Ethernet 10/100/1000 ports |
Expansion Slot(s) | 1 (total) / 1 (free) x Stacking Module |
Switching capacity | 176 Gbps |
Forwarding performance (64-byte packet size) | 41.7 Mpps |
DRAM | 128 MB |
Flash Memory | 64 MB |
Dimensions | 44.5 × 38.6 × 4.5 cm |
Package Weight | 9.19 Kg |
Note:

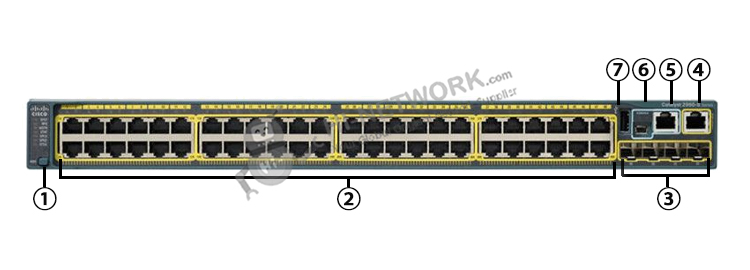

(1) | Mode Button | (5) | RJ45 Console Port |
(2) | 48 × Ethernet 10/100/1000 ports | (6) | USB mini-Type B (console) Port |
(3) | SFP Module Slots | (7) | USB Type A Port |
(4) | Ethernet Management Port |
Note:

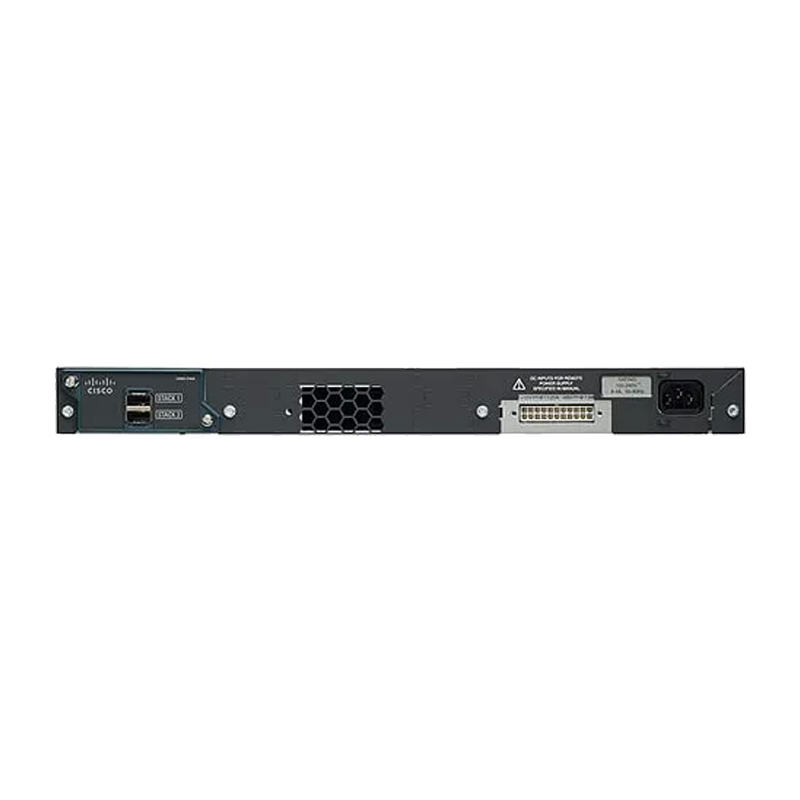

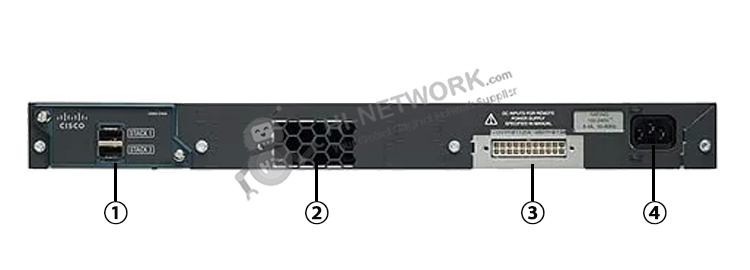

(1) | 1 (total) / 1 (free) x Stacking Module | (3) | RPS Connector |
(2) | Fan Exhaust | (4) | AC power connector |
Model | Description |
C2960S-STACK | Catalyst 2960S FlexStack Stack Module optional for LAN Base |
GLC-LH-SM | GE SFP, LC connector LX/LH transceiver |
GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
Model | WS-C2960S-48TS-L | WS-C2960S-24TS-L |
Ports | 48 × Ethernet 10/100/1000 ports FP) | 24 × Ethernet 10/100/1000 ports FP) |
Switching Capacity | 176 Gbps | 176 Gbps |
Uplinks | 4 x 1G SFP | 4 x 1G SFP |
Feature Set | LAN Base | LAN Base |
Stackable | Yes | Yes |
Do you have any questions about the WS-C2960S-48TS-L?
Contact us now via [email protected].
Specific Data Sheet:
WS-C2960S-48TS-L Specification | |
General Information | |
Manufacturer | Cisco |
Product ID | WS-C2960S-48TS-L |
Product Description | Cisco CAT2960S Stack 48 Gige-4 x SFP LAN Base |
Product Type | Ethernet Switch |
Marketing Information | |
The Cisco Catalyst 2960S-48TS-L Ethernet Switch is the leading Layer 2 edge, providing improved ease of use, highly secure business operations, improved sustainability, and a borderless network experience. The Cisco Catalyst 2960-S Switch includes new Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity, and Power over Ethernet Plus (PoE+) with the Cisco Catalyst 2960-S Switch offering fast Ethernet access connectivity and PoE capabilities. The Cisco Catalyst 2960-S is fixed-configuration access switches designed for enterprise, mid-market, and branch office networks to provide lower total cost of ownership. | |
Interfaces/Ports | |
Number of Ports | 48 |
Gigabit Ethernet Port | Yes |
Interfaces/Ports | 48 x RJ-45 10/100/1000Base-T Network LAN |
Media & Performance | |
Forwarding/Filtering Rate | 77.4 Mpps |
Switching Throughput | 176 Gbps |
I/O Expansions | |
Number of Expansion Slots | 4 |
Expansion Slots | (4 Total) SFP (mini-GBIC) |
Network & Communication | |
Layer Support | 2 |
Management & Protocols | |
Manageable | Yes |
Management | IEEE 802.1p QoS DHCP IEEE 802.1Q VLAN RMON CLI CiscoWorks LAN Management Solution SNMPv3 Syslog |
Memory | |
Standard Memory | 128MB |
Memory Technology | DRAM |
Flash Memory | 64MB |
Software | |
Operating System | Cisco IOS |
Power Description | |
Power Source | Power Supply |
Redundant Power Supply | Yes |
Physical Characteristics | |
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable |
Dimensions | 1.75" Height x 17.50" Width x 11.80" Depth |
Weight (Approximate) | 10.50 lb |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
