Cisco WS-C2960-24PC-L 24 Ethernet 10/100 PoE ports 2 x Dual Uplink LAN Base

685 $2850 (56.0% OFF)
5
5/5.0
Q/A
4 Sold/Mon
Detail: Catalyst 2960 24 10/100 PoE + 2 T/SFP LAN Base Image
Model: WS-C2960-24PC-L
Condition: New
Related:
Warranty:
3-Year Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
5.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Cisco WS-C2960-24PC-L 24 Ethernet 10/100 PoE ports 2 x Dual Uplink LAN Base


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


WS-C2960-24PC-L is one of the Cisco Catalyst 2960 Series switches. This series support voice, video, data, and highly secure access. They also deliver scalable management as your business needs change. The Common Features are included: Enhanced security including Cisco TrustSec for providing authentication, access control, and security policy administration, Multiple Fast or Gigabit Ethernet performance options, Cisco EnergyWise for power management, Scalable network management.



Quick Specification


Table 1 shows the quick specification.

Model

WS-C2960-24PC-L

Enclosure Type

Rack-mountable - 1U

Feature Set

LAN Base

Uplink Interfaces

2 dual-purpose (10/100/1000 or SFP) ports

Ports

24 x Ethernet 10/100 PoE ports

Throughput

6.5 Mpps

Backplane Capacity

16 Gbps

DRAM

64 MB

Dimensions

1.73 x 17.5 x 9.3 in.

Package Weight

9.5 Kg

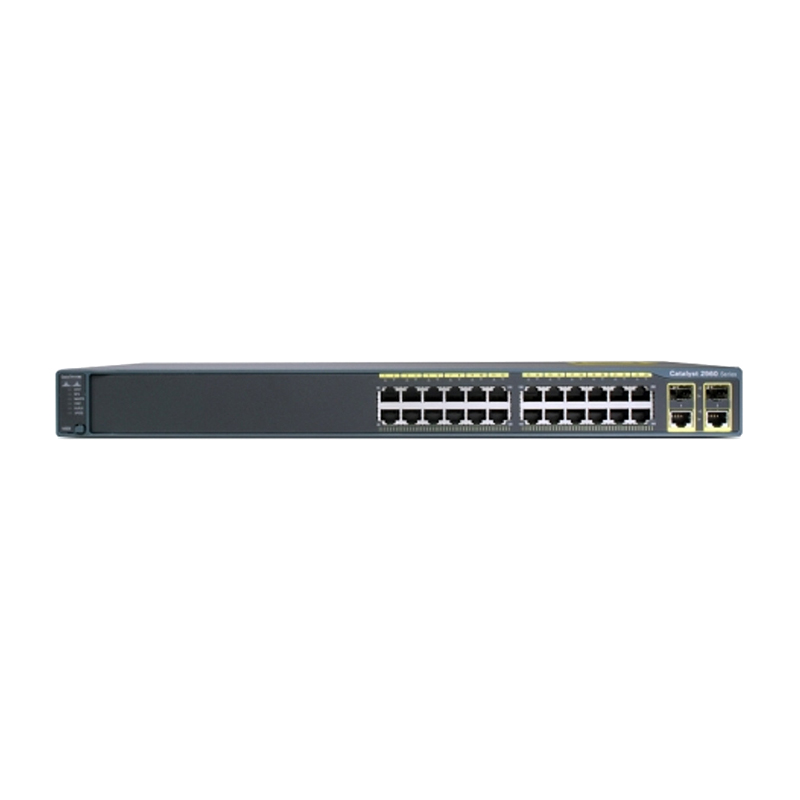

Figure 1 shows the appearance of the WS-C2960-24PC-L.

front-ws-c2960-24pc-l-datasheet


Product Details


Figure 2 shows the front panel of the WS-C2960-24PC-L.

front-panel-ws-c2960-24pc-l-datasheet

Note:

(1)

LED Area

(3)

2 dual-purpose uplinks

(2)

24 x Ethernet 10/100 PoE ports

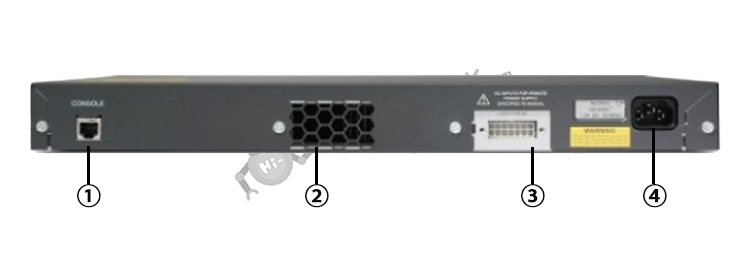

Figure 3 shows the back panel of the WS-C2960-24PC-L.

back-panel-ws-c2960-24pc-l-datasheet

Note:

(1)

RJ45 Console Port

(3)

RPS Connector

(2)

Fan Exhaust

(4)

AC power connector


The Accessories


Table 2 shows some accessories of the WS-C2960-24PC-L.

Model

Description

GLC-LH-SM

GE SFP, LC connector LX/LH transceiver

GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F


Compare to Similar Items


Table 3 shows the comparison of similar items.

Model

WS-C2960-24PC-L

WS-C2960-24TC-L

PoE Available

Yes

N/A

Ports

24 x Ethernet 10/100 PoE ports

24 x Ethernet 10/100 ports

Uplinks

2 dual-purpose uplinks

2 dual-purpose uplinks

Feature Set

LAN Base

LAN Base


Get More Information


Do you have any questions about the WS-C2960-24PC-L?

Contact us now via [email protected].

Specific Data Sheet:


WS-C2960-24PC-L Specification

General

Device Type

Switch - 24 ports - managed

Enclosure Type

Rack-mountable - 1U

Ports

24 x 10/100 + 2 x combo Gigabit SFP

Power Over Ethernet (PoE)

Yes

MAC Address Table Size

8K entries

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Layer 2 switching, auto-sensing per device, DHCP support, power over Ethernet (PoE), auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DHCP snooping, Quality of Service (QoS)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

RAM

64 MB

Flash Memory

32 MB

Status Indicators

Link activity, port transmission speed, port duplex mode, power, link OK, system

Expansion / Connectivity

Interfaces

24 x 10Base-T/100Base-TX - RJ-45 – PoE

2 x 10Base-T/100Base-TX/1000Base-T - RJ-45

2 x SFP (mini-GBIC)

Power

Power Device

Power supply - internal

Voltage Required

AC 120/230 V (50/60 Hz)

Features

Redundant Power System (RPS) connector

Miscellaneous

Width

17.5 in

Depth

13.1 in

Height

1.7 in

Weight

11.9 lbs

Compliant Standards

CE, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, FCC Part 15, UL 1950 Third Edition, CSA 22.2 No. 950 Third Edition

Software / System Requirements

Software Included

Cisco LAN Base software

Environmental Parameters

Min Operating Temperature

23 °F

Max Operating Temperature

113 °F
