Cisco VWIC3-2MFT-T1/E1 Voice WAN Card Moudels for 1900 2900 3900 Router


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


Cisco third generation Voice & WAN T1/E1 interface card supports voice and data application on Cisco ISR 2 1900/2900/3900 series platform. This module integrated with 2 T1/E1 interfaces, one port can configure for unstructured E1 (G.703) while configuring the other for structured framed E1 to support both Voice and WAN connectivity via one interface module.


Quick Specification


Model

VWIC3-2MFT-T1/E1

Device Type

Interface module

Form factor

2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card

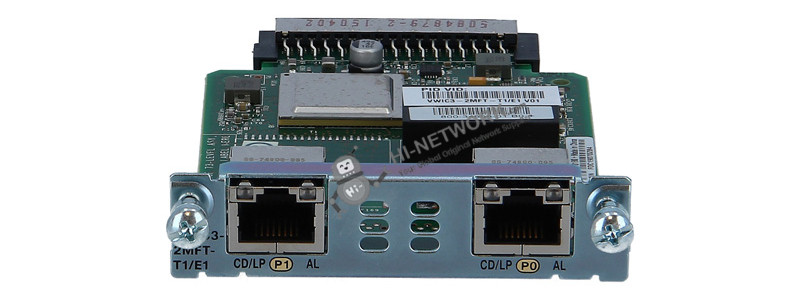

The Front Panel

vwic3-2mft-t1&e1-datasheet


The Accessories for QSFP-H40G-CU1M

Supported Platforms:


Part Number

VWIC3-2MFT-T1/E1

Cisco 1900 Chassis EHWIC Slots

15.0(1)M3, 15.1(1)T1, 15.1(2)T

Cisco 2900 Chassis EHWIC Slots

15.0(1)M3, 15.1(1)T1, 15.1(2)T

Cisco 3900 Chassis EHWIC Slots

15.0(1)M3, 15.1(1)T1, 15.1(2)T

* VWIC3-4MFT-T1/E1is supported on Cisco 2911, 2921, 2951 and Cisco 3900 Series routers


Cisco MFT VWIC3 Card Feature Comparison:


Part Number

VWIC3-2MFT-T1/E1

Number of Ports

2

T1 Support

Yes

E1 Support

Yes

Unstructured E1 (G.703) Support

No

Data Support WIC Mode

Yes

Voice Support VIC*

Yes

Drop-and-Insert Multiplexing

Yes


Cisco MFT VWIC3 Card Configuration:


Configuration Description

2-port Cards

VWIC3-1MFT-T1/E1,
VWIC3-2MFT-G703

Data Only

Serial Data (channel-group*)

2 total
2 per port

Voice Only

Voice CAS (ds0-group**)

48 total (T1)
62 total (E1)
1 per timeslot

Voice, Video and Data

PRI (pri-group***)

2 total
1 per port

Drop & Insert (tdm-group****)

48 total (T1)
62 total (E1)
1 per timeslot


* Channel Group refers to bonding of one or more timeslots into a single HDLC-framed serial connection for IP data traffic connectivity. This is used for HDLC, Frame Relay and MLPPP serial WAN connections.
** Ds0 Group refers to Bonding of one or more timeslots into a single TDM voice connection using Channel Associated Signaling (CAS) such as E&M, FXS or FXO. This is used for TDM PBX or PSTN connections and typically deployed only on T1.
*** PRI Group refers to bonding of two or more timeslots into a single TDM connection using ISDN signaling. This is typically used for TDM PBX or PSTN voice and video connections on T1 and E1, and also for data WAN connections on E1. Each call on the PRI is individually indicated as being a voice, video or data call with the ISDN bearer capability delivered with the call. Signaling is done on the D-channel, which is always channel 24 on a T1, and channel 31 on an E1.
**** TDM Group refers to cross-connecting one or more timeslots from one TDM interface to another. This is used to groom channels from different access points onto a combined T1 or E1 uplink. Since the router merely cross-connects and does not interpret or route the traffic from the ingress interface to the egress interface, the traffic type (voice, video and data) is transparent to the router.


Get More Information


Do you have any question about the VWIC3-2MFT-T1/E1?

Contact us now via [email protected]

Specific Data Sheet:


Model

VWIC3-2MFT-T1/E1

Manufacturer

Cisco

Device Type

Interface module

Form factor

2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card

Number of Ports

2

T1 Support

Yes

E1 Support

Yes

Unstructured E1 (G.703) Support

No

Data Support WIC Mode

Yes

Voice Support VIC*

Yes

Drop-and-Insert Multiplexing

Yes

Configuration Comparison

Serial Data (channel-group*)

2 total
2 per port

Voice CAS (ds0-group**)

48 total (T1)
62 total (E1)
1 per timeslot

PRI (pri-group***)

2 total
1 per port

Drop & Insert (tdm-group****)

48 total (T1)
62 total (E1)
1 per timeslot

Network Management Features

Telnet or Console

Remote and local configuration, monitoring, and troubleshooting from Cisco IOS Software CLI

Simple Network Management Protocol (SNMP)

• Router and DSU/CSU managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user

• Standard MIB (MIB II)

• Cisco Integrated DSU/CSU MIB

• RFC 1406 T1 MIB, Including Alarm Detection and Reporting

SNMP Traps

Generated in response to alarms
