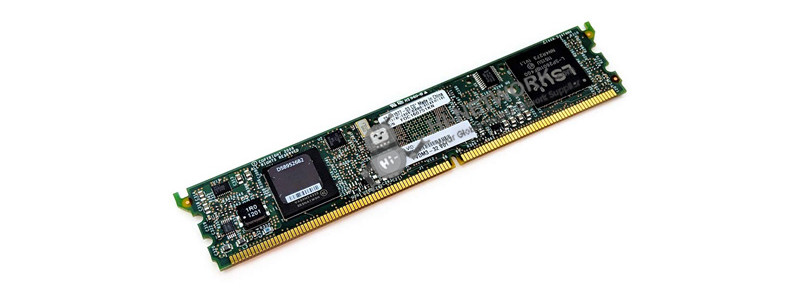

Detail: | 64-channel high-density voice and video DSP module |
Model: | PVDM3-64 |
Condition: | Used; In Stock |
Related: | |
Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
1.2
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
The PVDM3 brings new rich-media capabilities to Cisco® Unified Communications Solutions. High-density voice connectivity. Conferencing, trans coding, and trans rating. Management of voice quality. Power savings, secure voice, and more. The module resides on the Cisco 2900 and 3900 Series routers to enable these capabilities. The next-generation high-density packet voice digital-signal-processor (DSP) modules are available in six densities: PVDM3-64, PVDM3-64, PVDM3-64, PVDM3- 128, PVDM3-192, and PVDM3-256. The modules have 16, 32, 64, 128, 192, and 256 channels, respectively
Product Code | PVDM3-64 |
Description | 64-channel high-density voice DSP module |
Maximum Number of Channels in Low-Complexity Codecs | 64 |
Maximum Number of Channels in Medium-Complexity Codecs | 42 |
Maximum Number of Channels in High-Complexity Codecs | 28 |
Platform Support | Cisco 2901, 2911, 2921, 2951, 3925, 3945, 3925-E, and 3945-E Integrated Service Routers |
Availability | Unified Communications License on Universal Cisco IOS Software image |
Release | Cisco IOS Software Release 15.0(1)M |
Product Code | PVDM3-128 | PVDM3-192 | ||||
Description | 16-channel high-density voice DSP module | 32-channel high-density voice DSP module | 64-channel high-density voice DSP module | 128-channel high-density voice DSP module | 192-channel high-density voice DSP module | 256-channel high-density voice DSP module |
Maximum Number of Channels in Low-Complexity Codecs | 16 | 32 | 64 | 128 | 192 | 256 |
Maximum Number of Channels in Medium-Complexity Codecs | 12 | 21 | 42 | 96 | 138 | 192 |
Maximum Number of Channels in High-Complexity Codecs | 10 | 14 | 28 | 60 | 88 | 120 |
Do you have any question about the PVDM3-64?
Contact us now via [email protected]
Product Number | PVDM3-64 |
Components | |
DSP | Multicore DSP technology |
DSP external memory | 512-megabit double-data-rate (DDR) synchronous dynamic random access memory (SDRAM) for each DSP |
Interface | 240-pin dual-inline-memory-module (DIMM) interface |
Features | |
Echo cancellation | Software echo cancellation compliant with ITU-T G.168, with 128-ms tail coverage |
Operating temperature | -41 to 131°F (-5 to 55°C) |
Voltage | 3.3V |
Current | 1.47A |
Power | 4.85W |
Regulatory and Compliance | |
Safety | ● Complies with IEC 60950 (worldwide) and AS/NZS 60950-1 (Australia and New Zealand), CAN/CSA-C22.2 No. 60950-1, 1st and 2nd Ed. (Canada), and GB4943-95 (People's Republic of China) ● EN60950-1, 1st and 2nd Ed. (CENELEC; includes EU and EFTA) ● NOM-019-SCFI-1998 (Mexico), and UL 60950-1, 1st and 2nd Ed. (United States) |
Homologation | Platform dependent |
Mean time between failure (MTBF) | System dependent |
EMC | |
Emissions | ● CISPR22, Class B ● EN55022, Class B, CFR47, Part 15, Subpart B, Class B |
Harmonics | EN61000-3-2 |
Flicker | EN61000-3-3 |
Immunity | ● CISPR24 ● EN 55024 ● EN50082-1 |
Electrostatic discharge (ESD) | EN 61000-4-2 |
RF fields | EN 61000-4-3 |
EFT | EN 61000-4-4 |
Surge | EN 61000-4-5 |
Conducted RF | EN 61000-4-6 |
Power-frequency magnetic fields | EN 6100-4-8 |
Voltage dips, sags, and interruptions | EN 61000-4-11 |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
