(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

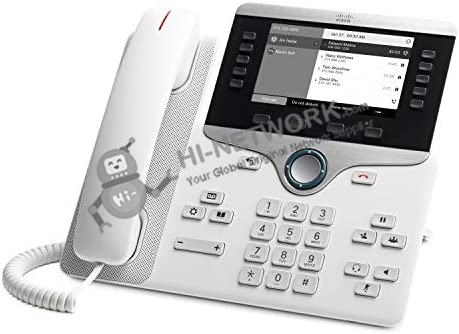

Cisco CP-8811-W-K9 integrates 5 inches high-resolution widescreen backlit grayscale display, localized language support to meet the needs of global users, the five programmable line keys can be configured to support multiple directory numbers and various calling features,the fixed function keys allow you one-touch access to applications, messaging, directory and conference. Backlit acoustic keys provide flexibility for audio path selection and switching.
Product Code | CP-8811-W-K9 |
Display | 5'' (800×480) monochrome display with white backlight |
Ethernet Switch | 10/100/1000 |
Programmable Line Keys | 4 |
Number of Line Keys | 5 |
Full Duplex Speakerphone | Yes |
Wideband Audio | Yes |
PoE Classification | Class 2 |
Third-party Call Control | Yes |
Replaceable Bezel | Yes |
Wall Mountable | Yes |

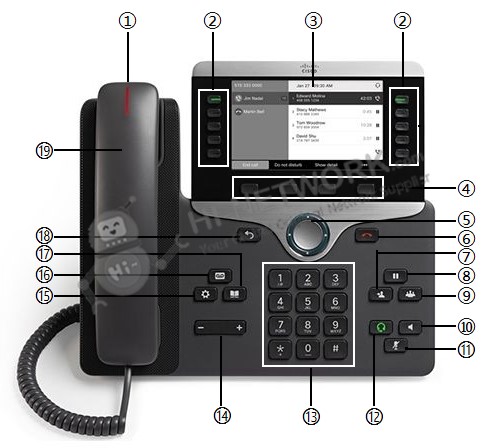

Note:
(1) | Handset light strip | (11) | Mute button |
(2) | Programmable feature buttons and Session buttons | (12) | Headset button |
(3) | Phone screen | (13) | Keypad |
(4) | Softkey buttons | (14) | Volume button |
(5) | Navigation cluster and Select button | (15) | Applications button |
(6) | Release Button | (16) | Messages button |
(7) | Transfer button | (17) | Contacts button |
(8) | Hold/Resume button | (18) | Back button |
(9) | Conference button | (19) | Handset |
(10) | Speakerphone button |
Model | CP-8811-W-K9 | |
Color | Black | White |
Ethernet Switch | 10/100/1000 | 10/100/1000 |
Programmable Line Keys | 4 | 4 |
Number of Line Keys | 5 | 5 |
Full Duplex Speakerphone | Yes | Yes |
Wideband Audio | Yes | Yes |
PoE Classification | Class 2 | Class 2 |
