| Detail: | Nexus 9300 with 96p 100M/1/10G-T and 6p 40G QSFP |
| Model: | N9K-C93120TX |
| Condition: | New Factory Sealed; EoL |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
30.0
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

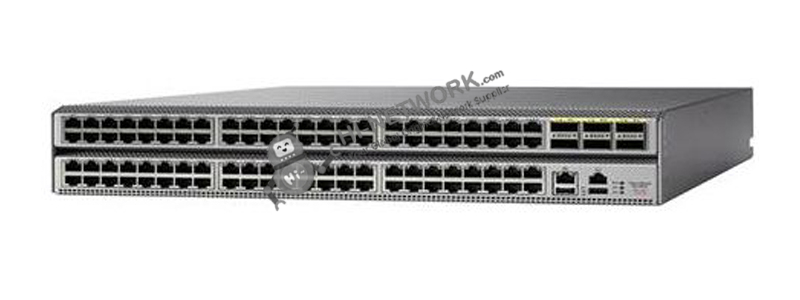

Nexus 9300 with 96p 100M/1/10G-T and 6p 40G QSFP
Product Code | N9K-C93120TX |
Ports | 96 fixed 1/10GBASE-T and 6 QSFP+ ports |
Supported speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
40 Gigabit Ethernet uplink ports | 6 fixed QSFP+ ports |
Physical (H x W x D) | 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) |
Weight | 26 lb (11.8 kg) (without power supplies, fans, or uplink module) |
Model | Description |
N9K-M6PQ-E | Uplink Module for Nexus 9300, 6p 40G QSFP |
N9K-M6PQ | Uplink Module for Nexus 9300, 6p 40G QSFP |
N9K-M12PQ | Uplink Module for Nexus 9300, 12p 40G QSFP |
N9K-M4PC-CFP2 | Uplink Module for Nexus 9300, 4p 100G |
UCSC-PSU-930WDC | Nexus 9000 930W DC PS, Port-side Intake |
UCS-PSU-6332-DC | Nexus 9000 930W DC PS, Port-side Exhaust |
N9K-PUV-1200W | Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports AC/HVDC |
N9K-C9300-FAN2 | Nexus 93128 & 9396 Fan 2, Port-side Intake |
N9K-C9300-FAN2-B | Nexus 93128 & 9396 Fan 2, Port-side Exhaust |
NXA-FAN-30CFM-F | Nexus 2K/3K/9K Single Fan for 1RU switch, port side exhaust airflow |
NXA-FAN-30CFM-B | Nexus 2K/3K/9K Single Fan for 1RU switch, port side intake airflow |
N93-LAN1K9= | Enhanced L3 including full OSPF, EIGRP, BGP for Nexus 9200/9300 Platform |
Compare To Similar Items
Product Code | N9K-C93120TX | N9K-C93128TX |
Ports | 96 fixed 1/10GBASE-T and 6 QSFP+ ports | 96 fixed 1/10GBASE-T ports |
Supported speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
Physical (H x W x D) | 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) | 5.3 x 17.5 x 22.5 in. |
Weight | 26 lb (11.8 kg) (without power supplies, fans, or uplink module) | 32.56 lb (14.8 kg) (without power supplies, fans, or uplink module) |
Do you have any question about the N9K-C93120TX?
Contact us now via [email protected]
Part number | N9K-C93120TX |
Ports | 96 fixed 1/10GBASE-T and 6 QSFP+ ports |
Supported speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
40 Gigabit Ethernet uplink ports | 6 fixed QSFP+ ports |
Typical power (AC) | Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber. The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations. |
Power supplies (up to 2) | 1200W AC, 930W DC, or 1200W HVAC/HVDC |
Typical power (AC) | 542W |
Maximum power (AC) | 948W |
Input voltage (AC) | 100 to 240V *PSU redundancy is not supported when used in 110V |
Input voltage (HVAC) | 200 to 277V |
Input voltage (DC) | -40V to -72V DC (min-max) -48V to -60V DC (nominal) |
Input voltage (HVDC) | –240 to –380V |
Frequency (AC) | 50 to 60 Hz |
Fans | 2 |
Physical (H x W x D) | 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) |
RoHS compliance | Yes |
Weight | 26 lb (11.8 kg) (without power supplies, fans, or uplink module) |
