Cisco Nexus N9K-C9236C Nexus 9200 with 36p 40G 100G QSFP28

USD

19040 ~~$40250~~ (52.7% OFF)

4.9 4.9/5.0 Reviews Q/A 1 sold/Mon
Detail:	Nexus 9200 with 36p 40G 100G QSFP28
Model:	N9K-C9236C
Condition:	New Factory Sealed; EoL
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 30.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Cisco Nexus N9K-C9236C Nexus 9200 with 36p 40G 100G QSFP28

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Nexus 9200 with 36p 40G 100G QSFP28

Quick Specification:

Product Code	N9K-C9236C
Ports	36 x 100-Gbps QSFP28 ports
Supported speeds	1, 10, 25, 40, 50, and 100 Gbps
Port configuration	36 fixed QSFP28 ports, with each being individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps ports
Physical dimensions (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Weight	18.2 lb (8.3 kg) (without power supplies or fans)

The Front Panel:

N9K-C9236C-datasheet

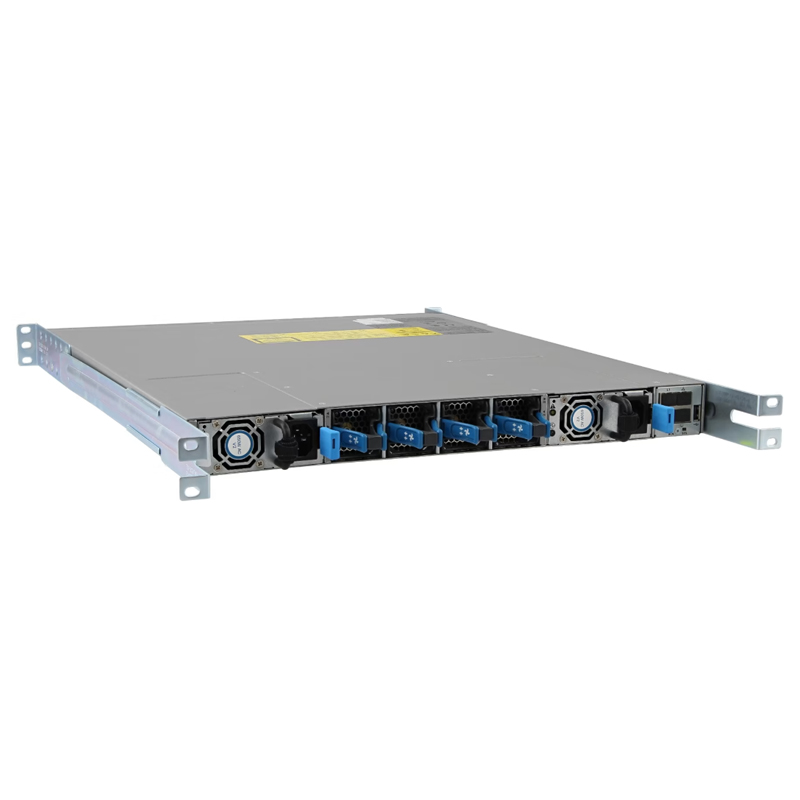

The Back Panel:

N9K-C9236C-back-datasheet

The Accessories For N9K-C9236C

Supported Accessories:

Model	Description
NXA-PAC-650W-PI	Nexus 9000 650W AC PS, Port-side Intake
NXA-PAC-650W-PE	Nexus 9000 650W AC PS, Port-side Exhaust
NXA-PAC-1200W-PI	Nexus 9000 1200W AC PS, Port-side Intake
NXA-PAC-1200W-PE	Nexus 9000 1200W AC PS, Port-side Exhaust
UCSC-PSU-930WDC	Nexus 9000 930W DC PS, Port-side Intake
UCS-PSU-6332-DC	Nexus 9000 930W DC PS, Port-side Exhaust
N9K-PUV-1200W	Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports AC/HVDC
N9K-C9300-FAN3	Nexus 9K Fixed Fan for 2RU switch, Port-side Intake
N9K-C9300-FAN3-B	Nexus 9K Fixed Fan for 2RU switch, Port-side Exhaust
NXA-FAN-30CFM-F	Nexus 2K/3K/9K Single Fan for 1RU switch, port side exhaust airflow
NXA-FAN-30CFM-B	Nexus 2K/3K/9K Single Fan for 1RU switch, port side intake airflow
NXA-FAN-35CFM-PE	Nexus 92300 Single Fan, port side exhaust airflow
NXA-FAN-35CFM-PI	Nexus 92300 Single Fan, port side exhaust airflow
N93-LAN1K9=	Enhanced L3 including full OSPF, EIGRP, BGP for Nexus 9200/9300 Platform

Compare To Similar Items

Product Code	N9K-C92304QC	N9K-C9236C
Ports	56 x 40-Gbps QSFP+ and 8 100-Gbps ports	36 x 100-Gbps QSFP28 ports
Supported speeds	10, 40, and 100 Gbps	1, 10, 25, 40, 50, and 100 Gbps
Port configuration	56 fixed QSFP+ ports, with breakout of up to 64 x 10-Gbps ports, plus 8 x 100-Gbps ports	36 fixed QSFP28 ports, with each being individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps ports

Get More Information

Do you have any question about the N9K-C9236C?

Specific Data Sheet:

Part number	N9K-C9236C
Ports	36 x 100-Gbps QSFP28 ports
Supported speeds	1, 10, 25, 40, 50, and 100 Gbps
Port configuration	36 fixed QSFP28 ports, with each being individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps ports
Telemetry support	–
CPU	4 cores
System memory	16 GB
Solid-State Disk (SSD) drive	64 GB
Shared system buffer	30 MB
Management ports	3 RJ-45 ports
USB ports	1
RS-232 serial ports	1
Power supplies (PSU - up to 2)	930W DC, 650W AC, or 1200W HVAC/DC
Typical power (AC)	275W
Maximum power (AC)	640W
Input voltage (AC)	100 to 240V
Input voltage (HVAC)	200 to 277V
Input voltage (DC)	–40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal)
Input voltage (HVDC)	240 to 380V
Frequency (AC)	50 to 60 Hz
Fans	4
Airflow	Port-side intake and exhaust
MTBF (hours)	399,300
Physical (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Acoustics	58.8 dBA 40% fan speed, 65.3 dBA at 70% fan speed, and 69.6 dB at 100% fan speed
RoHS compliance	Yes
Weight	18.2 lb (8.3 kg) (without power supplies or fans)
