| Detail: | Nexus 9K Fixed with 48p 10G SFP+ and 6p 40G OR 4p 100G |
| Model: | N9K-C92160YC-X |
| Condition: | New Factory Sealed |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
30.0
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
N9K-C92160YC-X is one of the Cisco Nexus 9200 switches. 92160YC-X Switch is optimized for Cisco NX-OS deployments. It provides 48 1/10/25-Gb host ports and up to six hybrid uplink ports that can be configured as 10, 25, 40, or 100-Gb ports. With 3.2 Tbps of switching capacity, the 92160YC-X delivers line-rate Layer 2 and 3 features for demanding enterprise, service provider hosting, and cloud computing environments.
Product Code | N9K-C92160YC-X |
Ports | 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable) |
Supported speeds | 1, 10, and 25 Gbps on SFP+ ports 10, 25, 40, and 100 Gbps on QSFP+ ports |
Port configuration | 48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps |
CPU | 2 cores |
System memory | 16G |
SSD drive | 24G |
Shared system buffer | 20MB |
Management ports | 2 ports: 1 RJ-45 and 1SFP |
USB ports | 1 |
RS-232 serial ports | 1 |
Power supplies (up to 2) | 650W AC, 930W DC, or 1200W AC/HVDC |
Physical dimensions(H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
Weight (without power supplies or fans) | 14.12 lb (6.4 kg) |
·Typical and maximum power values are based on input drawn from the power circuit. The power supply value (for example, 650W AC power supply: N9K-PAC-650W) is
based on the output rating to the inside of the switch.
·The actual maximum scale depends on the system forwarding mode

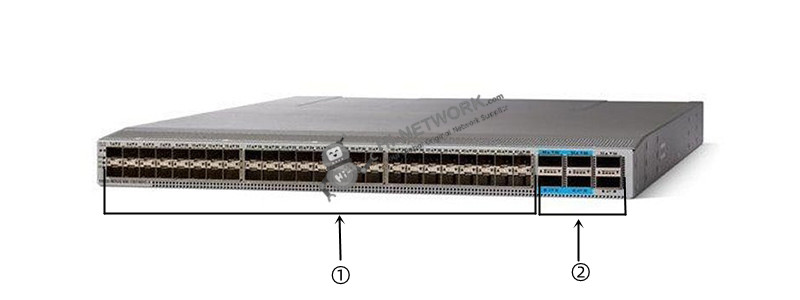

① | 10-Gigabit SFP+ downlink ports (48) supporting 1-, 10-, and 25-Gigabit Ethernet |
② | 100-Gigabit QSFP28 uplink ports (6) supporting 40- and 100-Gigabit Ethernet |

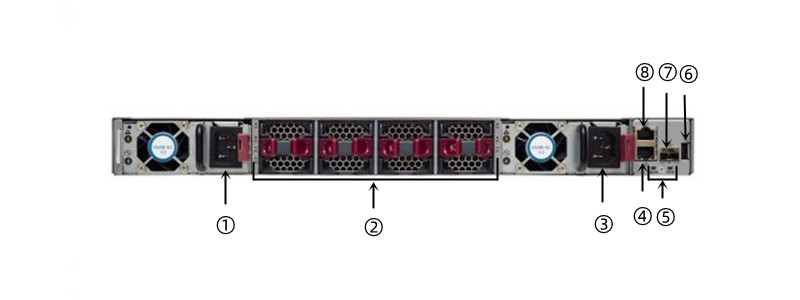

① | Power Supply |
② | 4 x Fan Module |
③ | Power Supply |
④ | Out-of-band management port (RJ-45 port) |
⑤ | Chassis LEDs (Beacon [BCN] and Status [STS]) |
⑥ | USB port used for saving or copying functions |
⑦ | Out-of-band management port (SFP port) |
⑧ | Console port (RS232 port) |
Compare To Similar Items
Models | ||
Ports | 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports | 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable) |
CPU | 4 cores | 2 cores |
System memory | 24 GB | 16 G |
SSD drive | 64 GB | 24 GB |
Do you have any question about the N9K-C92160YC-X?
Contact us now via [email protected]
Ports | 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable) |
Supported speeds | 1, 10, and 25 Gbps on SFP+ ports 10, 25, 40, and 100 Gbps on QSFP+ ports |
Port configuration | 48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps |
CPU | 2 cores |
System memory | 16G |
SSD drive | 24G |
Shared system buffer | 20MB |
Management ports | 2 ports: 1 RJ-45 and 1SFP |
USB ports | 1 |
RS-232 serial ports | 1 |
Power supplies (up to 2) | 650W AC, 930W DC, or 1200W AC/HVDC |
Typical power (AC) | 10-Gbps mode: 150W 25-Gbps mode: 170W |
Maximum power (AC) | 475W |
Input voltage (AC) | 100 to 240V |
Input voltage (HVAC) | 200 to 277V |
Input voltage (DC) | –40 to –72V DC (minimum and maximum) –48 to –60V DC (nominal) |
Input voltage (HVDC) | 240 to 380V |
Frequency (AC) | 50 to 60 Hz |
Fans | 4 |
Airflow | Port-side intake and exhaust |
MTBF (hours) | 379,400 |
Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
Acoustics | 51.9 dBA at 40% fan speed, 56.2 dBA at 70% fan speed, and 66.0 dB at 100% fan speed |
RoHS compliance | Yes |
Number of longest prefix match (LPM) routes | Default: 6,000 LPM heavy mode: 650,000 |
Number of IP host entries | Default: 96,000 LPM heavy mode: 650,000 |
Number of MAC address entries | 92,000 |
Number of multicast routes | Shipping: 8,000 Maximum: 32,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000 Maximum: 32,000 |
Number of access control list (ACL) entries | Per slice of the forwarding engine: 4,000 ingress 2,000 egress Maximum: 8,000 ingress 4,000 egress Shipping: 7,164 ingress 3,580 egress |
Maximum number of VLANs | 3,967 |
Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000 Maximum: 16,000 |
Maximum number of links in a Port Channel | 32 |
Maximum number of ECMP paths | 64 |
Maximum number of ECMP groups | 256 |
Maximum number of ECMP members | 64,000 |
Maximum number of Port Channels | 512 |
Number of active SPAN sessions | 4 |
Number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
Number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Number of Multiple Spanning Tree (MST) instances | 64 |
Maximum Number of VxLAN Tunnel Endpoints (VTEPs) | 256 |
Operating temperature | 32 to 104°F (0 to 40°C) |
Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
Humidity | 5 to 95% (noncondensing) |
Altitude | 0 to 13,123 ft (0 to 4000m) |
Weight (without power supplies or fans) | 14.12 lb (6.4 kg) |
