N9K-9396TX
  • N9K-9396TX

Cisco Nexus N9K-9396TX Nexus 9300 with 48p 100M/1/10G-T and 8p 40G QSFP

9480 $23575 (59.8% OFF)
4.9
4.9/5.0
Q/A
1 sold/Mon
Detail: Nexus 9300 with 48p 100M/1/10G-T and 8p 40G QSFP
Model: N9K-9396TX
Condition: New Factory Sealed; EoL
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
30.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Cisco Nexus N9K-9396TX Nexus 9300 with 48p 100M/1/10G-T and 8p 40G QSFP

(Note:  Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was  changed accordingly.  So Our Products Service will contact you after order if meet such special condition.)


The Cisco Nexus 9396TX Switch is a 2RU switch that supports up to 1.92 Tbps of bandwidth and over 1500 mpps across 48 fixed 100M/1/10GBASE-T ports and an uplink module that can support up to 12 fixed 40-Gbps QSFP+ ports


Quick Specification:


Product Code

N9K-9396TX

Ports

48 fixed 1/10GBASE-T ports

Supported speeds

100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds

40 Gigabit Ethernet uplink ports

6 or 12 QFSP+ ports active through the uplink module

Physical (H x W x D)

3.5 x 17.5 x 22.5 in.
(8.9 x 44.5 x 57.1 cm)

Weight

22.45 lb (10.2 kg) (without power supplies, fans, or uplink module)

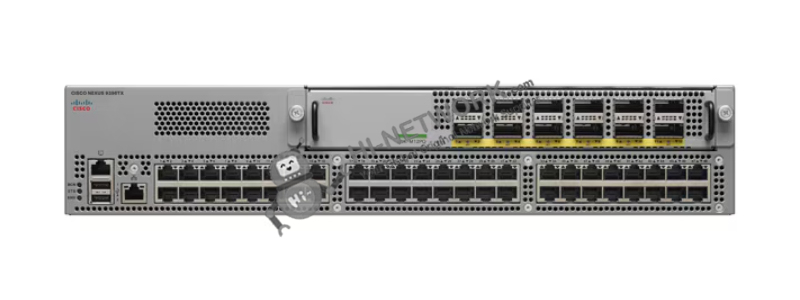

The Front Panel:

N9K-9396TX-datasheet

The Accessories for N9K-9396TX

Supported Accessories:


Model

Description

N9K-M6PQ-E

Uplink Module for Nexus 9300, 6p 40G QSFP

N9K-M6PQ

Uplink Module for Nexus 9300, 6p 40G QSFP

N9K-M12PQ

Uplink Module for Nexus 9300, 12p 40G QSFP

N9K-M4PC-CFP2

Uplink Module for Nexus 9300, 4p 100G

UCSC-PSU-930WDC

Nexus 9000 930W DC PS, Port-side Intake

UCS-PSU-6332-DC

Nexus 9000 930W DC PS, Port-side Exhaust

N9K-PUV-1200W

Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports AC/HVDC

N9K-C9300-FAN2

Nexus 93128 & 9396 Fan 2, Port-side Intake

N9K-C9300-FAN2-B

Nexus 93128 & 9396 Fan 2, Port-side Exhaust

NXA-FAN-30CFM-F

Nexus 2K/3K/9K Single Fan for 1RU switch, port side exhaust airflow

NXA-FAN-30CFM-B

Nexus 2K/3K/9K Single Fan for 1RU switch, port side intake airflow

N93-LAN1K9=

Enhanced L3 including full OSPF, EIGRP, BGP for Nexus 9200/9300 Platform


Compare To Similar Items


Product Code

N9K-9396TX

N9K-9396PX

Ports

48 fixed 1/10GBASE-T ports

48 fixed SPF+ ports

Supported speeds

100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds

1/10 Gigabit Ethernet speeds

Physical (H x W x D)

3.5 x 17.5 x 22.5 in.
(8.9 x 44.5 x 57.1 cm)

3.5 x 17.5 x 22.5 in.
(8.9 x 44.5 x 57.1 cm)

Weight

22.45 lb (10.2 kg) (without power supplies, fans, or uplink module)

22.45 lb (10.2 kg) (without power supplies, fans, or uplink module)


Get More Information

Do you have any question about the N9K-9396TX?

Contact us now via [email protected]


Specific Data Sheet:


Part number

N9K-9396TX

Ports

48 fixed 1/10GBASE-T ports

Supported speeds

100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds

40 Gigabit Ethernet uplink ports

6 or 12 QFSP+ ports active through the uplink module

Customers have the choice of either N9K-M6PQ or N9K-M12PQ for 40 Gigabit Ethernet uplink connectivity to aggregation or spine switches.

100 Gigabit Ethernet uplink ports

Customer can have 100 Gigabit Ethernet uplink connectivity to spine switches or routers through the N9K-M4PC- uplink module, with CPF2 optics as well as the Cisco CPAK®100-Gbps module through converters.

The N9K-M4PC-CFP2 offers 5 MB of additional buffer space for each port.

Power supplies (up to 2)

650W AC, 930W DC, or 1200W HVAC/HVDC

Typical power (AC)

427W

Maximum power (AC)

712W

Input voltage (AC)

100 to 240V

Input voltage (HVAC)

200 to 277V

Input voltage (DC)

–48 to –60V

Input voltage (HVDC)

–240 to –380V

Frequency (AC)

50 to 60 Hz

Fans

3

Physical (H x W x D)

3.5 x 17.5 x 22.5 in.
(8.9 x 44.5 x 57.1 cm)

Acoustics

68.3 dBA at 40% fan speed, 78.8 dBA at 70% fan speed, and 84.5 dB at 100% fan speed

RoHS compliance

Yes

Weight

22.45 lb (10.2 kg) (without power supplies, fans, or uplink module)
