Description

802.11ac Ctrlr AP 4x4:3SS w/CleanAir; Ext Ant; T Reg Domain

Frequency band and 20-MHz operating channels

T (T regulatory domain):

● 2.412 to 2.462 GHz; 11 channels

● 5.280 to 5.320 GHz; 3 channels

● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

● 5.745 to 5.825 GHz; 5 channels

Software

Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:

● 7.6 or later for the Cisco Aironet 3700 Series Access Point

● 7.6 or later for support of the Wireless Security Module for the 3700 Series Access Point

Cisco IOS XE Software Release:

● 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point

Supported wireless LAN controllers

● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex®7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

Module options

Hyperlocation Module with Advanced Security

● Hyperlocation Module provides full-spectrum scanning, both 2.4 and 5 GHz, for comprehensive detection and mitigation of over-the-network attacks, Cisco CleanAir technology to detect devices causing network interference, rogue device detection, context (location) awareness, FastLocate, and radio resource management (RRM) solutions

● BLE Beacon, incorporates five centrally managed virtual BLE beacons with separate Universal Unique Identifiers

(UUIDs) and power levels

● FastLocate provides faster updates per Wi-Fi device for a quicker refresh of the device’s location

● One meter of location accuracy of associated Wi-Fi clients, when paired with the Hyperlocation Antenna

● Provides full scanning of all 2.4- and 5-GHz channels while the access point is serving data clients on the integrated radios

Cisco Aironet Access Point Module for Wireless Security

● Provides full-spectrum scanning for comprehensive detection and mitigation of over-the-network attacks, Cisco CleanAir technology to detect devices causing network interference, rogue device detection, context (location) awareness, FastLocate, and radio resource management (RRM) solutions

● FastLocate provides faster updates per Wi-Fi device for a quicker refresh of the device’s location

● Provides full scanning of all 2.4- and 5-GHz channels while the access point is serving data clients on the integrated radios (802.11b/g/n and 802.11a/n)

Cisco Universal Small Cell 8718 Dual-band, switchable multimode module, first band for LTE with 2x50 mw MIMO, one

band for 3G with 100 mw transmit and receive diversity

● Software configurable to operate as UMTS and LTE. Band 1/3 (USC8718-M13-K9)

● Software configurable to operate as UMTS and LTE. Band 1/7 (USC8718-M17-K9)

● Software configurable to operate as UMTS and LTE. Band 2/4 (USC8718-M24-K9)

Cisco Universal Small Cell 5310

● 3GPP band 1 (2100 MHz), 16 users, voice (R99), packet data (HSPA/HSDPA+)

● 3GPP band 2/5 (band 2 - 1930 and band 5 - 869), 16 users, voice (R99), packet data (HSPA/HSDPA+)

802.11n version 2.0 (and related) capabilities

● 4x4 MIMO with three spatial streams

● Maximal ratio combining (MRC)

● 802.11n and 802.11a/g beamforming

● 20- and 40-MHz channels

● PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 dynamic frequency selection (DFS)

● Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

● 4x4 MIMO with three spatial streams

● MRC

● 802.11ac beamforming

● 20-, 40-, and 80-MHz channels

● PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 DFS

● CSD support

Integrated antenna

● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

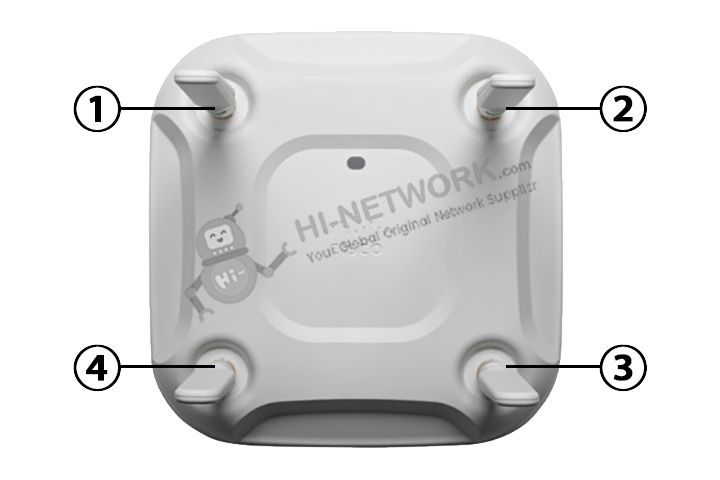

External antenna (sold separately)

● AP3700E: Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) with the AP3700E

● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment

scenarios

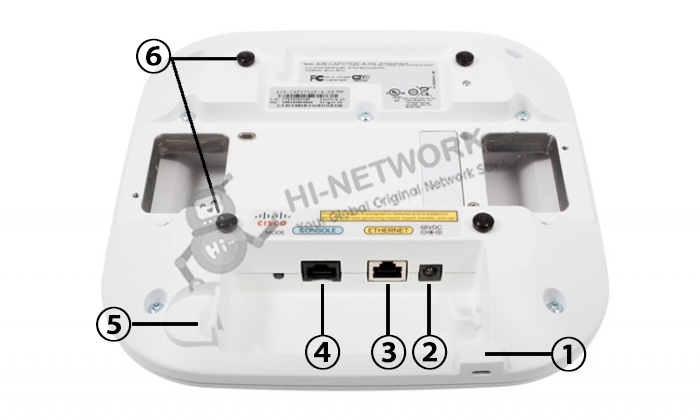

Interfaces

● 10/100/1000BASE-T autosensing (RJ-45)

● Management console port (RJ-45)

Indicators

● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

● Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)

Weight

● 2.5 lb (1.13 kg)

Environmental

● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

● Operating temperature: -4° to 122°F (-20° to 50°C)

● Operating humidity: 10% to 90% (noncondensing)

● Operating altitude test: 40˚C, 9843 ft.

System memory

● 512 MB DRAM

● 64 MB flash

Input power requirements

● AP3700: 44 to 57 VDC

● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Warranty

Limited lifetime hardware warranty
