Description

802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, N Regulatory Domain

Frequency band and 20-MHz operating channels

N (N regulatory domain):

● 2.412 to 2.462 GHz; 11 channels

● 5.180 to 5.320 GHz; 8 channels

● 5.745 to 5.825 GHz; 5 channels

Software

● Cisco Unified Wireless Network Software Release 8.2.111.0 or later

● Cisco IOS ® XE Software Release 16.3

Supported Wireless LAN Controllers

AireOS Wireless Controllers

● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 Series Wireless Controllers, Cisco Virtual Wireless Controller

● Cisco Catalyst 3850 Series and 3650 Series Switches

● Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

● 4x4 MIMO with three spatial streams

● Maximal Ratio Combining (MRC)

● 802.11n and 802.11a/g beamforming

● 20- and 40-MHz channels

● PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 Dynamic Frequency Selection (DFS)

● Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

● 4x4 MIMO with three spatial streams

● MRC

● 802.11ac beamforming

● 20-, 40-, and 80-MHz channels

● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 DFS

● CSD support

802.11ac Wave 2 capabilities

● 4x4 MU-MIMO with three spatial streams

● MRC

● 802.11ac beamforming

● 20-, 40-, 80, 160-MHz channels

● PHY data rates up to 5.2 Gbps

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 DFS

● CSD support

Wi-Fi Alliance Certified

● Wi-Fi Certified a, b, g, n, ac

● Wi-Fi Vantage

● WMM

● Passpoint

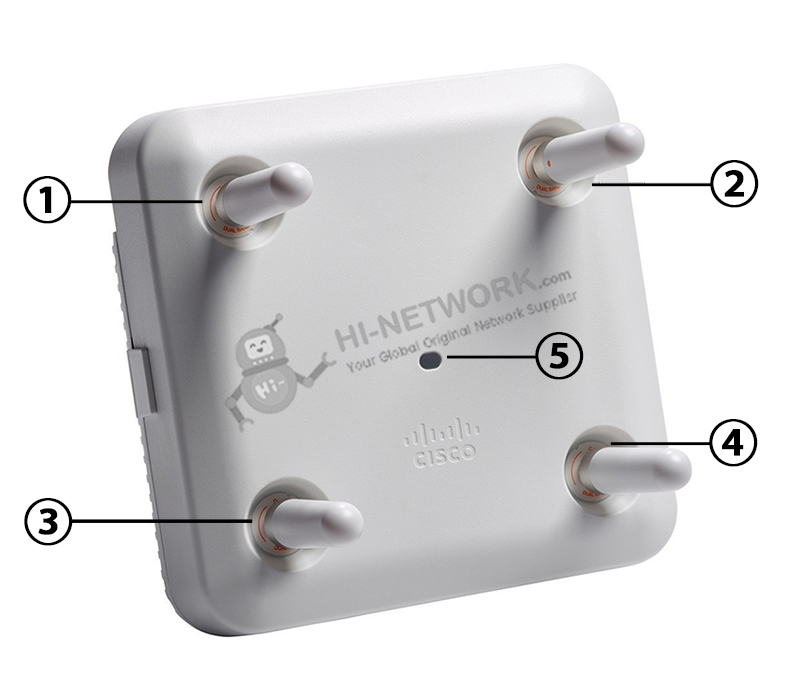

External antenna (sold separately)

● 3802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Smart antenna connector

● Available on the 3802e Series and 3802p Series access points only

● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point

● Required when running the flexible radio as either a:

◦ Second 5-GHz serving radio

◦ Wireless Security Monitoring radio

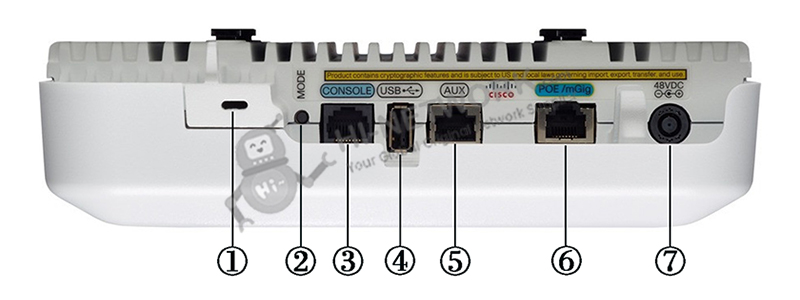

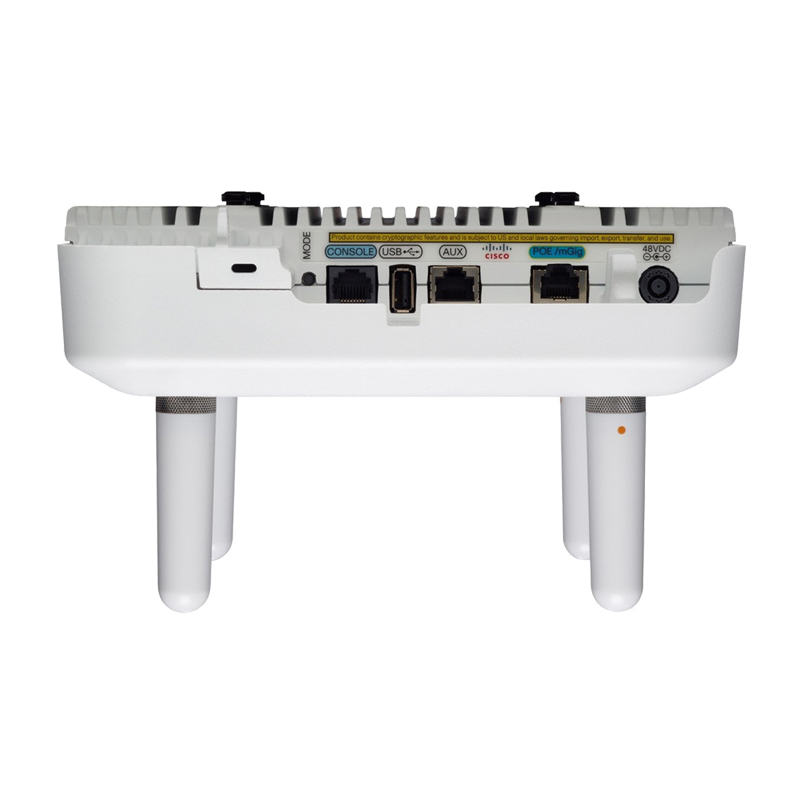

Interfaces

● 2 Ethernet ports

● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

◦ CAT 5e cabling

◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling

● 100/1000BASE-T autosensing (RJ-45 - AUX port)

● Management console port (RJ-45)

Indicators

● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

● Access point (without mounting bracket): 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)

Weight

● 4.6 lb (2.09 kg)

Input power requirements

● 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE ®)

● 802.3at power injector (AIR-PWRINJ6=)

● 50W power supply (AIR-PWR-50=)

Power draw

● 25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port

● 30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled

Environmental

● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

● Operating temperature: -4° to 122°F (-20° to 50°C)

● Operating humidity: 10% to 90% (noncondensing)

● Operating altitude test: 40˚C, 9843 ft.

System Memory

● 1024 MB DRAM

● 256 MB flash

Warranty

Limited Lifetime Hardware Warranty
