Cisco AIR-AP3802E-D-K9 Aironet 3802e Access Point 802.11ac External Antenna D Regulatory Domain

USD

1195 ~~$2560~~ (36.9% OFF)

5 5/5.0 Reviews Q/A 2 Sold/Mon
Detail:	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, D Regulatory Domain
Model:	AIR-AP3802E-D-K9
Condition:	New
Related:
Warranty:	1 Year-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 2.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Cisco AIR-AP3802E-D-K9 Aironet 3802e Access Point 802.11ac External Antenna D Regulatory Domain

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

AIR-AP3802E-D-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802E-D-K9 is designed for indoor, challenging environments, with external antennas. Besides, it provides D regulatory domain.

Quick Specification

Table 1 shows the quick specification of AIR-AP3802E-D-K9.

Model	AIR-AP3802E-D-K9
Description	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, D Regulatory Domain
Frequency band and 20-MHz operating channels	D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels
Antenna	External Antenna
Features	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
System memory	● 1024 MB DRAM ● 256 MB flash
Dimensions (W x L x H)	8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Weight	4.6 lb (2.09 kg)

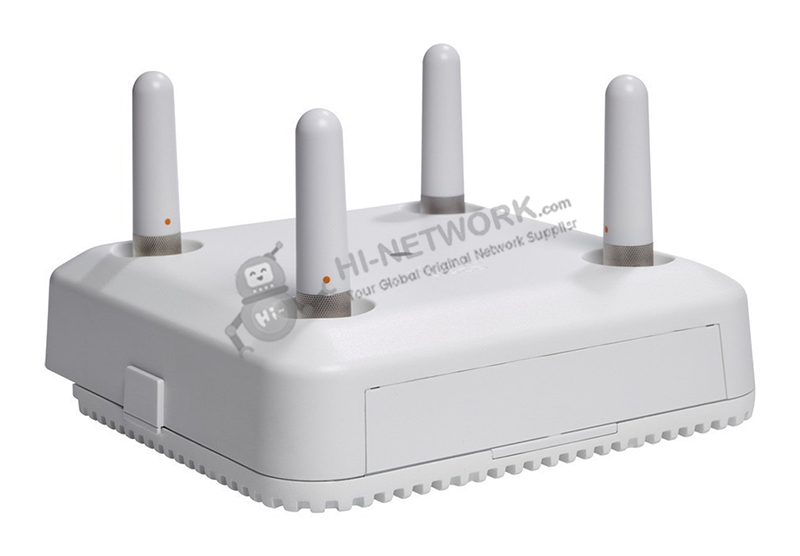

Figure 1 shows the appearance of AIR-AP3802E-D-K9.

front-air-ap3802e-d-k9-datasheet

Product Details

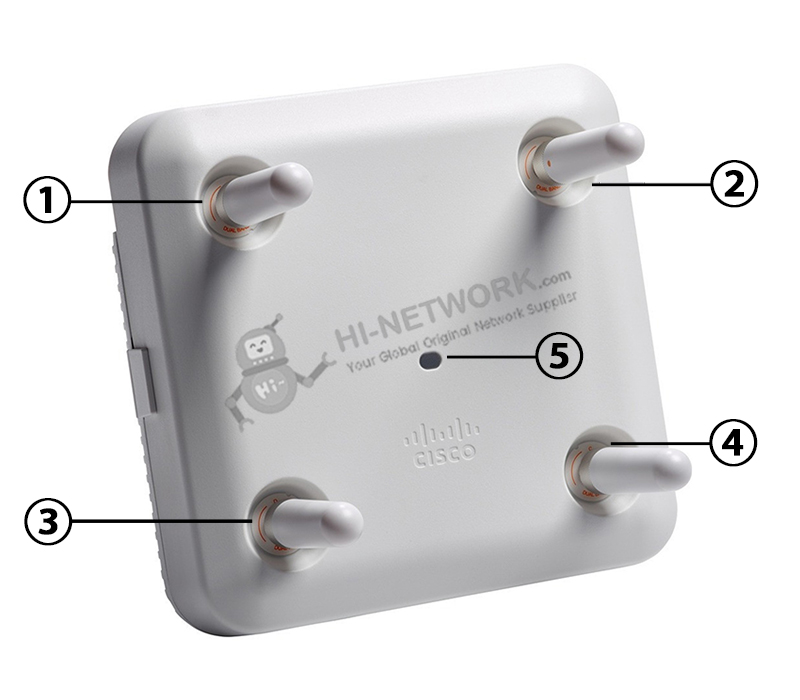

Figure 2 shows the face of AIR-AP3802E Model.

face-air-ap3802e-d-k9-datasheet

Note:

(1)	Dual-band antenna connector A with antenna	(4)	Dual-band antenna connector C with antenna
(2)	Dual-band antenna connector B with antenna	(5)	Status LED
(3)	Dual-band antenna connector D with antenna

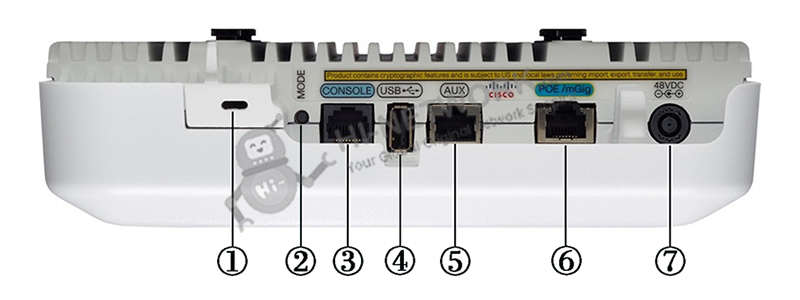

Figure 3 shows ports and connections on the head of the AP.

ports-air-ap3802e-d-k9-datasheet

Note:

(1)	Kensington lock slot	(5)	AUX / Gigabit Ethernet port
(2)	Mode button	(6)	PoE / mGig port
(3)	Console port	(7)	48 VDC power port
(4)	USB port

Compare to Similar Items

Table 2 shows the comparison between two APs.

Model	AIR-AP3802E-D-K9	AIR-AP3802E-E-K9
Antenna	External Antenna	External Antenna
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ● CAT 5e cabling ● Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ● CAT 5e cabling ● Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
Regulatory Domain	D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels	E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

Get More Information

Do you have any question about AIR-AP3802E-D-K9?

Specific Data Sheet:

AIR-AP3802E-D-K9 Specification
Description	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, D Regulatory Domain
Frequency band and 20-MHz operating channels	D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels
Software	● Cisco Unified Wireless Network Software Release 8.2.111.0 or later ● Cisco IOS ® XE Software Release 16.3
Supported Wireless LAN Controllers	AireOS Wireless Controllers ● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco Catalyst 3850 Series and 3650 Series Switches ● Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	● 4x4 MIMO with three spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 capabilities	● 4x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
802.11ac Wave 2 capabilities	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Wi-Fi Alliance Certified	● Wi-Fi Certified a, b, g, n, ac ● Wi-Fi Vantage ● WMM ● Passpoint
External antenna (sold separately)	● 3802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Smart antenna connector	● Available on the 3802e Series and 3802p Series access points only ● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point ● Required when running the flexible radio as either a: ◦ Second 5-GHz serving radio ◦ Wireless Security Monitoring radio
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Weight	● 4.6 lb (2.09 kg)
Input power requirements	● 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE ®) ● 802.3at power injector (AIR-PWRINJ6=) ● 50W power supply (AIR-PWR-50=)
Power draw	● 25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port ● 30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled
Environmental	● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: -4° to 122°F (-20° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
System Memory	● 1024 MB DRAM ● 256 MB flash
Warranty	Limited Lifetime Hardware Warranty
