AIR-AP3802E-A-K9
  • AIR-AP3802E-A-K9

Cisco AIR-AP3802E-A-K9 Access Point 802.11ac External Antenna A Regulatory Domain

911 $2472 (63% OFF)
4.8
4.8/5.0
Q/A
18 Sold/Mon
Detail: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, A Regulatory Domain
Model: AIR-AP3802E-A-K9
Condition: New
Related:
Warranty:
3 Years- Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
2.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Cisco AIR-AP3802E-A-K9 Access Point 802.11ac External Antenna A Regulatory Domain


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


AIR-AP3802E-A-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802E-A-K9 is designed for Indoor, challenging environments, with internal antennas. Besides, it provides  E regulatory domain.


Quick Specification

Table 1 shows the Quick Specs of the AIR-AP3802E-A-K9.

Product Code

AIR-AP3802E-A-K9

Antennas

External Antennas







Interfaces

2 Ethernet ports

- 100/1000/2500/5000   Multigigabit Ethernet (RJ-45)

CAT 5e cabling

Higher-quality   10GBASE-T (CAT 6/6a) cabling

100/1000BASE-T   autosensing (RJ-45 - AUX port)

Management console   port (RJ-45)











Features

4x4 MU-MIMO with   three spatial streams

MRC

802.11ac beamforming

- 20-, 40-, 80,   160-MHz channels

PHY data rates up to   5.2 Gbps

Packet aggregation:   A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS CSD support







Regulatory Domain

A (A regulatory   domain):

  - 2.412 to 2.462 GHz; 11 channels

  - 5.180 to 5.320 GHz; 8 channels

  - 5.500 to 5.700 GHz; 8 channels

  (excludes 5.600 to 5.640 GHz)

  - 5.745 to 5.825 GHz; 5 channels




System

1024 MB DRAM   256 MB flash

Dimensions (W x L x   H)

8.66 x 8.68 x 2.46   in. (22 x 22 x 6.25 cm)

Net Weight

4.6 lb (2.09 kg)

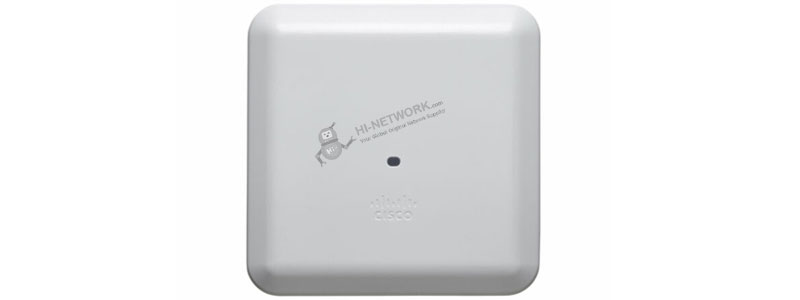

Figure 1 shows the appearance of the AIR-AP3802E-A-K9.

cisco-air-ap3802e-h-k9(front)






Product Details

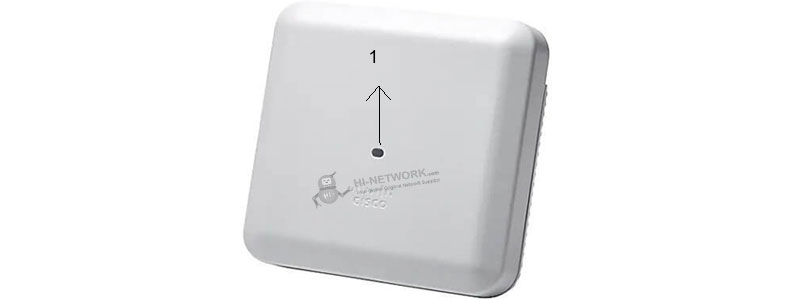

Figure 2 shows the face of AIR-AP3802E Model.

cisco-air-ap3802e-h-k9(front2)



Note:

(1) LED indicator position

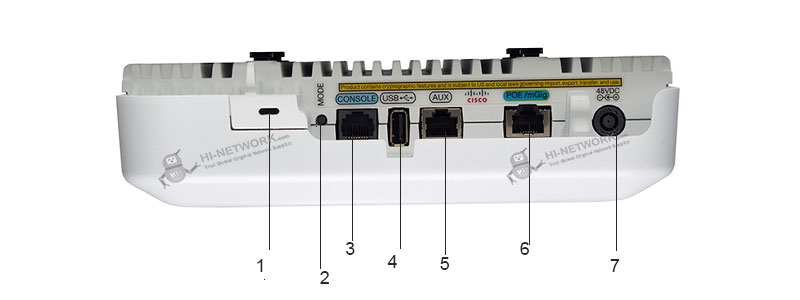

Figure 3 shows Ports and Connectors on the Head of the 3802E Model.

cisco-air-ap3802i-h-k9(back)



Note:

(1)

Kensington lock slot

(5)

AUX / Gigabit Ethernet   port

(2)

Mode button

(6)

PoE / m Gig port

(3)

Console port

(7)

48 VDC power port

(4)

USB port



Compare to Similar Items

Table 2 shows the comparison between two AP.

Models

AIR-AP3802E-A-K9

AIR-AP3802P-A-K9

Antenna

External Antenna

External Antenna


2 Ethernet ports

- 100/1000/2500/5000 Multigigabit   Ethernet (RJ-45)

CAT 5e cabling

Higher-quality 10GBASE-T (CAT 6/6a)   cabling

100/1000BASE-T autosensing (RJ-45 - AUX   port)

Management console port (RJ-45)

2 Ethernet ports

- 100/1000/2500/5000 Multigigabit   Ethernet (RJ-45)

CAT 5e cabling

Higher-quality 10GBASE-T (CAT 6/6a)   cabling

100/1000BASE-T autosensing (RJ-45 - AUX   port)

Management console port (RJ-45)



Interfaces




A(A regulatory domain):

2.412 to 2.472 GHz; 13 channels

5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 G Hz; 11 channels

5.745 to 5.825 GHz; 5 channels

A (A regulatory domain):

2.412 to 2.472 GHz; 13 channels

5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 G Hz; 11 channels

5.745 to 5.825 GHz; 5 channels



Regulatory Domain




Get more information

Do you have any question about the AIR-AP3802E-A-K9?

Contact us now viainfo@hi-network.


Specific Data Sheet:

AIR-AP3802E-A-K9 Specifications

Detail

802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, A Regulatory Domain


A (A regulatory domain):


  - 2.412 to 2.462 GHz; 11 channels

  - 5.180 to 5.320 GHz; 8 channels

  - 5.500 to 5.700 GHz; 8 channels

  (excludes 5.600 to 5.640 GHz)

  - 5.745 to 5.825 GHz; 5 channels



Regulatory Domain





Cisco Unified Wireless Network Software   Release 8.2.MR1 or later


Cisco 2500 Series Wireless Controllers,   Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2   (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless   Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless   Controllers, Cisco Virtual Wireless Controller

Software and supported wireless LAN   controllers

Cisco IOS XE Software Release 16.3 –   Target Q3 CY2016 Cisco Catalyst 3850 Series and 3650 Series Switches


4x4 MIMO with three spatial streams   Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and   40-MHz channels


PHY data rates up to 450 Mbps (40 MHz   with 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)


802.11 dynamic frequency selection (DFS)   Cyclic shift diversity (CSD) support

802.11n   version 2.0 (and related) capabilities



4x4 MIMO with three spatial streams MRC


802.11ac beamforming


20-, 40-, and 80-MHz channels


PHY data rates up to 1.3 Gbps (80 MHz in   5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11ac Wave 1 capabilities

802.11 DFS CSD support


4x4 MU-MIMO with three spatial streams   MRC


802.11ac beamforming


20-, 40-, 80, 160-MHz channels PHY data   rates up to 5.2 Gbps


Packet aggregation: A-MPDU (Tx/Rx),   A-MSDU (Tx/Rx)

802.11ac Wave 2 capabilities

802.11 DFS CSD support




Flexible radio (either 2.4 GHz or 5 GHz)


2.4 GHz, gain 4 dBi, internal antenna,   omnidirectional in azimuth


5 GHz, gain 6 dBi, internal directional   antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio

Integrated antenna

5 GHz, gain 5 dBi, internal antenna,   omnidirectional in azimuth


2 Ethernet ports


100/1000/2500/5000 Multigigabit Ethernet   (RJ-45) – IEEE 802.3bz


CAT 5e cabling

Interfaces

Higher-quality 10GBASE-T (CAT 6/6a)   cabling


100/1000BASE-T autosensing (RJ-45 - AUX   port)


Management console port (RJ-45)

Indicators

Status LED indicates boot loader status,   association status, operating status, boot loader warnings, boot loader   errors

Dimensions (W x L x H)


8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25   cm),

Weight

4.6 lb (2.09 kg)


802.3at PoE+, Cisco Universal Power over   Ethernet (Cisco UPOE) 802.3at power injector (AIR-PWRINJ6=)

Input power requirements

50W power supply (AIR-PWR-50=)


30W at the PSE with all features enabled   except for the USB 2.0 port 34W at the PSE with the USB 2.0 port enabled

Power draw


Cisco Aironet 3800i


Nonoperating (storage) temperature: -22°   to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000   ft.


Operating temperature: 32° to 104°F (0°   to 40°C) Operating humidity: 10% to 90% percent (noncondensing) Operating   altitude test: 40˚C, 9843 ft.

Environmental



1024 MB DRAM

System memory

256 MB Flash

Warranty

Limited lifetime hardware warranty
