Cisco AIR-AP2802E-B-K9C Access Point 802.11ac External Antenna B Regulatory Domain Configurable

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

AIR-AP2802E-B-K9C is one of the Cisco Aironet 2800 Series Access Points. This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers. The Series is a hands-oﬀ product that's intelligent enough to make decisions based on end-device activities and usage. AIR-AP2802E-B-K9C provides external antenna and B regulatory domain. It also supports conﬁgurable Dual-band controller-based 802.11a/g/n/ac.

Quick Specification

Table 1 shows the Quick Specification of the AIR-AP2802E-B-K9C.

Model	AIR-AP2802E-B-K9C
Description	Dual-band controller-based 802.11a/g/n/ac, External Antenna, B Regulatory Domain, Configurable
Frequency band and 20-MHz operating channels	B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels
Antenna	External Antenna
802.11ac Wave 2 capabilities	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Interfaces	● 2802I/E ◦ 2x100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) ● USB 2.0 (enabled via future software)
System memory	● 1024 MB DRAM ● 256 MB flash
Dimensions (W x L x H)	8.66 x 8.77 x 2.50 in.
Weight	4.6 lb (2.09 kg)

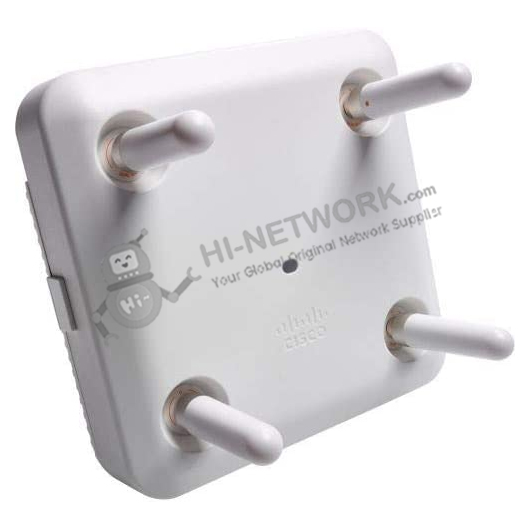

Figure 1 shows the appearance of the AIR-AP2802E-B-K9C.

front-air-ap2802e-b-k9c-datasheet

Product Details

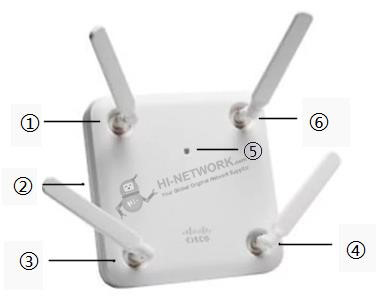

Figure 2 shows the face of AIR-AP2802E Model.

face-air-ap2802e-b-k9c-datasheet

Note:

(1)	Dual-band antenna connector A with antenna	(4)	Dual-band antenna connector C with antenna
(2)	Location of the Smart antenna connector port on the right side of the AP	(5)	Status LED
(3)	Dual-band antenna connector D with antenna	(6)	Dual-band antenna connector B with antenna

Compare to Similar Items

Table 2 shows the comparison between two APs.

Model	AIR-AP2802E-B-K9C	AIR-AP2802E-B-K9
Description	Dual-band controller-based 802.11a/g/n/ac, External Antenna, B Regulatory Domain, Configurable	Dual-band controller-based 802.11a/g/n/ac, External Antenna, B Regulatory Domain
Frequency band and 20-MHz operating channels	B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels	B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels
Antenna	External Antenna	External Antenna
802.11ac Wave 2 capabilities	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support

Get More Information

Do you have any question about the AIR-AP2802E-B-K9C?

Specific Data Sheet:

AIR-AP2802E-B-K9C Specification
Software	● Cisco Unified Wireless Network Software Release 8.2.111.0 or later ● Cisco IOS XE Software Release 16.3
Deployment modes	Centralized, standalone, sniffer, Cisco FlexConnect™ , monitor, OfficeExtend, mesh
Description	Dual-band controller-based 802.11a/g/n/ac, External Antenna, B Regulatory Domain, Configurable
Frequency band and 20-MHz operating channels	B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels
Supported wireless LAN controllers	● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches ● Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	● 4x4 MIMO with three spatial streams ● Maximal ratio combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) ● Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities	● 4x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
802.11ac Wave 2 capabilities	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Integrated antenna	Flexible radio (either 2.4 GHz or 5 GHz) ● 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio ● 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)	● 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Smart antenna connector	● Available on the 2802e Series access points only ● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point ● Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio
Interfaces	● 2802I/E ◦ 2x100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) ● USB 2.0 (enabled via future software)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17” , 2802E: 8.66” x 8.77” x 2.50”
Weight	Cisco Aironet 2802i ● 3.53 lb (1.6 kg) Cisco Aironet 2802e ● 4.6 lb (2.09 kg)
Input power requirements	● 802.3at PoE+, Cisco Universal PoE (Cisco UPOE®) ● 802.3at power injector (AIR-PWRINJ6=)
Power draw	● 22.5W at the PSE (20W at the PD) with all features enabled except for the USB 2.0 port ● 26.5W at the PSE (23W at the PD) with the USB 2.0 port enabled
Environmental	Cisco Aironet 2802i ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 2802e ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (stosrage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: -4° to 122°F (-20° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
System memory	● 1024 MB DRAM ● 256 MB flash
Warranty	Limited lifetime hardware warranty
