CBS220-24FP-4X CISCO 220 Series 24 PoE Ports 95 Mpps Forwarding Rate 4x10GE SFP Replace of SF220-24FP

USD

1032 ~~$1215~~ (15.1% OFF)

4.8 4.8/5.0 Reviews Q/A 192 sold/Mon
Detail:	24 10/100/1000 PoE+ ports with 382 W power budget, 4 10G SFP+ port
Model:	CBS220-24FP-4X
Condition:	New Factory Sealed; In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 6.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

CBS220-24FP-4X CISCO 220 Series 24 PoE Ports 95 Mpps Forwarding Rate 4x10GE SFP Replace of SF220-24FP

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

24 10/100/1000 PoE+ ports with 382 W power budget, 4 10G SFP+ port.

Quick Specification:

Product Code	CBS220-24FP-4X
Inputs/Outputs	24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 4 x 10Gb SFP+
Layer Services Supported	Layer 2 Support
Jumbo Frames Support	9216 Bytes
MAC Address Table Size	8K
VLAN Groups	256
Forwarding Rate	95.23 Mpps
Switching Bandwidth	128 Gb/s
AC Input Power	110 to 220 VAC, 50 / 60 Hz
PoE Power Budget	382 W
Dimensions	11 x 6.7 x 1.7" / 279 x 170 x 44 mm
Weight	8.88 lb / 4.03 kg

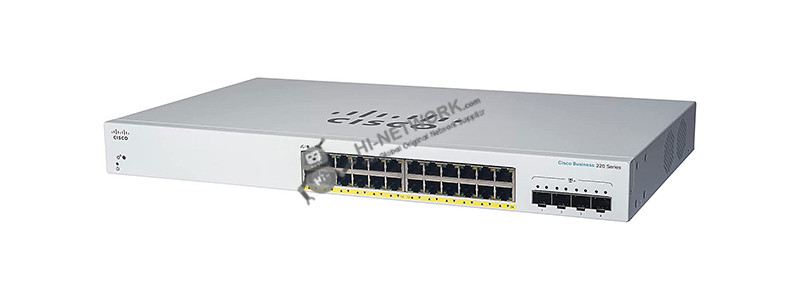

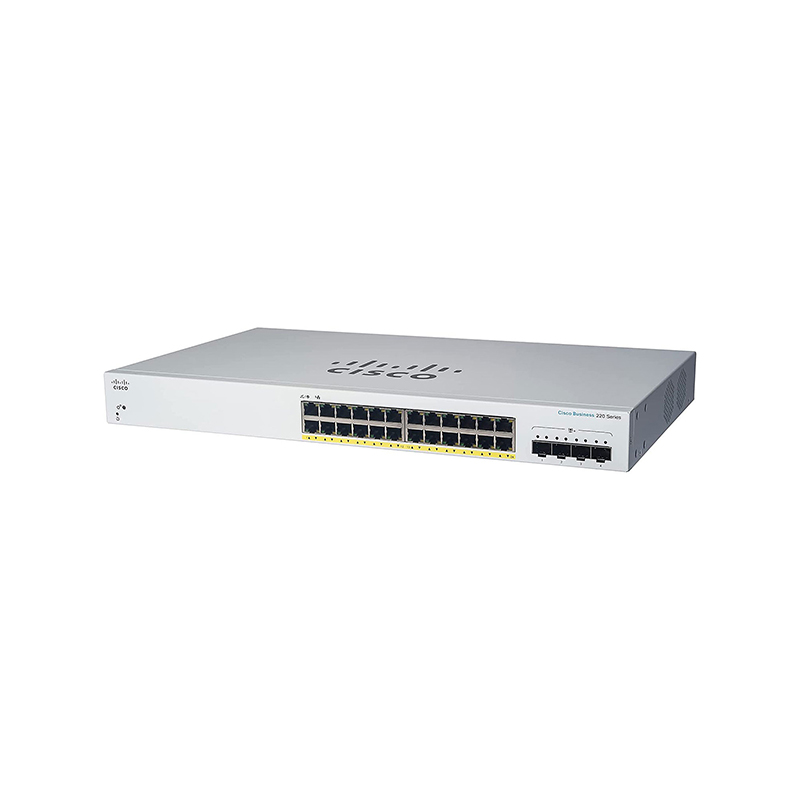

The Front Panel:

cbs220-24fp-4x-water-datasheet

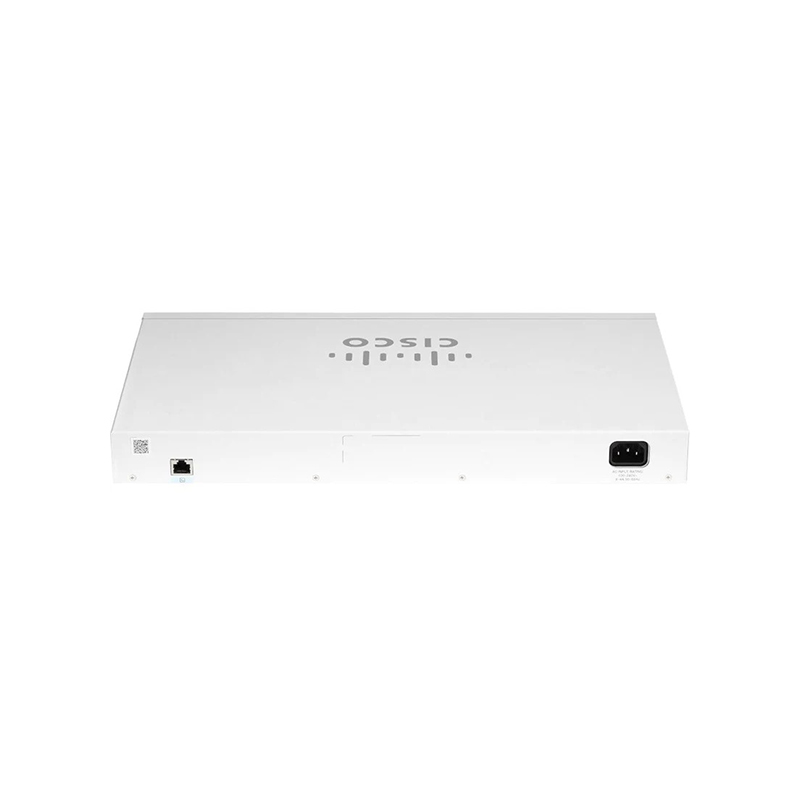

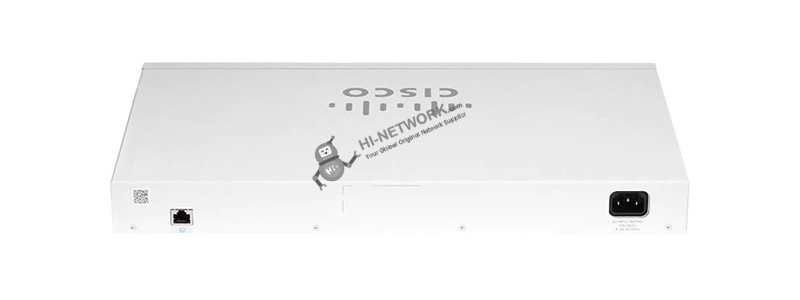

The Back Panel:

cbs220-24fp-4x-back-water-datasheet

Get More Information

Do you have any question about the CBS220-24FP-4X?

Specific Data Sheet:

Inputs/Outputs	24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 4 x 10Gb SFP+
Layer Services Supported	Layer 2 Support
Supported Protocols	Auto-MDIX/MDI Head-of-Line (HOL) Blocking IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering RADIUS
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	9216 Bytes
MAC Address Table Size	8K
VLAN Groups	256
Security
Security Features	DoS Attack Prevention RADIUS Authentication
Access Control List	512
Standards
Supported IEEE Standards	802.1d, 802.1p, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u
Performance
Forwarding Rate	95.23 Mpps
Switching Bandwidth	128 Gb/s
Packet Buffer	12 Mb
Electrical
Power Draw	470.00 W (Max)
AC Input Power	110 to 220 VAC, 50 / 60 Hz
PoE Power Budget	382 W
Power Supply Type	Internal
Environmental
Operating Temperature	32 to 122°F / 0 to 50°C
Operating Humidity	10 to 90%
Storage Temperature	-4 to 158°F / -20 to 70°C
Storage Humidity	10 to 90%
Noise Level	44.2 dB
General
Cooling System	Fan
Mean Time Between Failures (MTBF)	588,411 Hours
Dimensions	11 x 6.7 x 1.7" / 279 x 170 x 44 mm
Weight	8.88 lb / 4.03 kg
