C9300X-12Y-A Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks Network Advantage

USD

4899 ~~$20109~~ (75.6% OFF)

4.8 4.8/5.0 Reviews Q/A 1 sold/Mon
Detail:	Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage
Model:	C9300X-12Y-A
Condition:	Factory Sealed New; DNA-A-12-3Year Included
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 16.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

C9300X-12Y-A Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks Network Advantage

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage

Quick Specification:

Brand	Cisco
SKU	C9300X-12Y-A
Type	Network Switch
Ports	12 x 25G/10G/1G SFP28
Uplinks	Modular
Software	Network Advantage

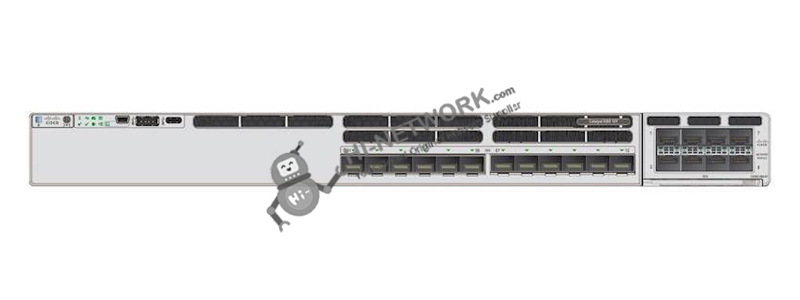

The Front Panel:

C9300X-12Y-A-fro-datasheet

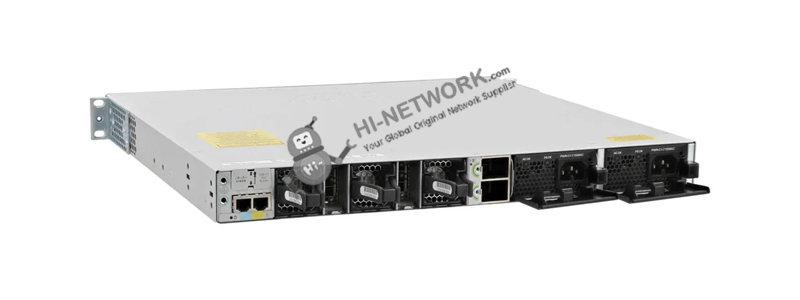

The Back Panel:

C9300X-12Y-A-back-datasheet

The Accessories For C9300X-12Y-A

Supported Options:

Model	Description
C9300-NM-4G	9300 Series 4x 1G Network Module
C9300-NM-4M	9300 Series 4 x Multigigabit Network Module
C9300-NM-8X	9300 Series 8x 10G Network Module
C9300-NM-2Q	9300 Series 2x 40G Network Module
C9300-NM-2Y	9300 Series 2x 25G Network Module
STACK-T1-50CM=	50CM Type 3 Stacking Cable
STACK-T1-1M=	1M Type 3 Stacking Cable
STACK-T1-3M=	3M Type 3 Stacking Cable
SSD-120G	Cisco pluggable USB3.0 SSD storage

Compare To Similar Items:

Product Code	C9300X-12Y-A	C9300X-12Y-E
Product Description	Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage	Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials
Device Type	Switch - 12 ports - L3 - managed - stackable	Switch - 12 ports - L3 - managed - stackable
Enclosure Type	Rack-mountable 1U	Rack-mountable 1U
Subtype	25 Gigabit Ethernet	25 Gigabit Ethernet
Ports	12 x 1/10/25 Gigabit SFP28	12 x 1/10/25 Gigabit SFP28
RAM	16 GB	16 GB
Flash Memory	16 GB	16 GB

Get More Information

Do you have any question about the C9300X-12Y-A?

Specific Data Sheet

Brand	Cisco
Model	C9300X-12Y-A
Device Type	Switch - 12 ports - L3 - managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	25 Gigabit Ethernet
Ports	12 x 1/10/25 Gigabit SFP28
Performance	Switching capacity: 1000 Gbps Switching capacity with stacking: 2000 Gbps Forwarding rate: 744.04 Mpps Forwarding rate with stacking: 1488 Mpps
Capacity	IPv4 routing table entries: 39000 Flexible NetFlow entries: 64000 Direct IPv4 routes: 24000 Indirect IPv4 routes: 15000 IPv6 routing table entries: 19500 VLAN IDs: 4094 Switched virtual interfaces (SVIs): 1000 Multicast routing flow table: 8000 QoS scale entries: 4000 ACL scale entries: 5000 PVST instances: 300 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 Routed ports: 448
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	16 GB
Flash Memory	16 GB
Status Indicators	Status
Expansion / Connectivity
Interfaces	24 x 1/10/25GBase-X SFP28
Power
Power Device	Internal power supply
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width	17.5 in
Depth	16.1 in
Height	1.73 in
Weight	15.0 Pounds
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	5 - 90% (non-condensing)
