Detail: | Catalyst 9200L 48-port Partial PoE+, 4 x 10G, NW Essentials |
Model: | C9200L-48PL-4X-E |
Condition: | Factory Sealed New,DNA-E-48-3Year Was Included |
Related: | C9200-48P-E CISCO 48-port PoE+ Switch Network Essentials C9200L-48P-4X-A CISCO 48 Ports PoE 4x10G uplink Switch Network Advantage C9200L-48P-4G-A CISCO 48 Ports PoE 4x1G uplink Switch Network Advantage C9200L-24P-4X-A CISCO 24 Ports PoE 4x10G uplink Switch |
Warranty: |
![]() ![]() ![]() |
Shipping: |
Air Shipping to
![]() , Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
15.2
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

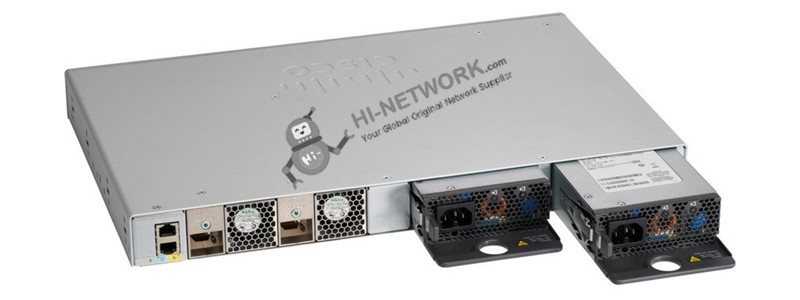

Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - Managed - rack-mountable
Model | C9200L-48PL-4X-E |
Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Device Type | Switch - 48 ports - L3 - Managed - stackable |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Dimensions (WxDxH) | 44.5 cm x 28.8 cm x 4.4 cm |
Weight | 4.8 kg |
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
●Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability
and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, AccessControl Lists (ACLs), and Quality of Service (QoS) entries
StackWise-80 and StackWise-160 Kit and cables | |
Product number | Product description |
C9200-STACK-KIT= | C9200 Stack Kit Spare |
C9200L-STACK-KIT= | C9200L Stack Kit Spare |
STACK-T4-50CM | 50CM Type 3 Stacking Cable |
STACK-T4-1M | 1M Type 3 Stacking Cable |
STACK-T4-3M | 3M Type 3 Stacking Cable |
Power supplies | |
Product Number | Product Description |
PWR-C5-1KWAC/2= | 1000WAC power supply spare |
Do you have any question about the C9200L-48PL-4X-E?
Contact us now via info@hi-network.com
Product Description | Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - Managed - rack-mountable |
Device Type | Switch - 48 ports - L3 - Managed - stackable |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Stacking bandwidth: 80 Gbps |
Capacity | Virtual networks: 1 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6 |
Features | ACL support, QoS, Rapid PVST+, SRR, PXE support, Energy Efficient Ethernet, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, Blue Beacon LED, ZTP, secure boot, PIM, FHS, PVLAN support, CIR, Cisco StackWise-80 technology, Cisco Trust Anchor module, Cisco UADP 2.0 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz |
Power | AC 100-240 V (50 - 60 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 28.8 cm x 4.4 cm |
Weight | 4.8 kg |
Manufacturer Warranty | Limited lifetime warranty |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
